MAX16814EVKIT+

Obsolete

Analog Devices Inc./Maxim Integrated

KIT EAL FOR MAX16814

MAX16814EVKIT+

Obsolete

Analog Devices Inc./Maxim Integrated

KIT EAL FOR MAX16814

Description Specifications Series Pricing CAD Documents

Description

General part information

MAX16814 Series

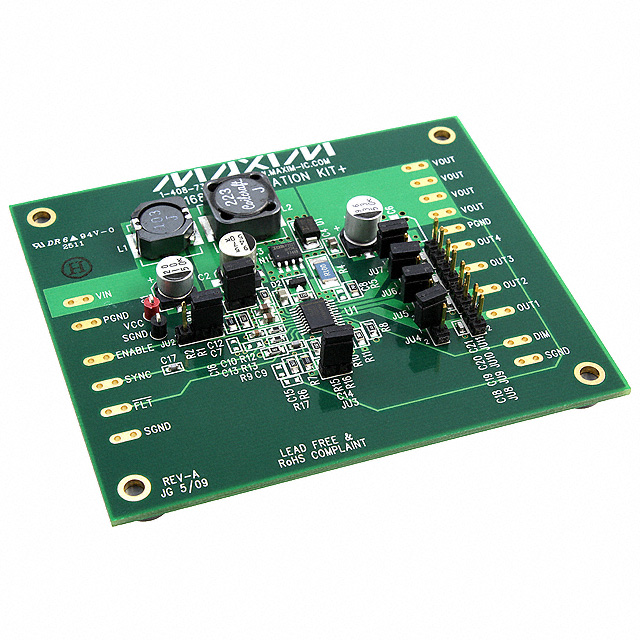

MAX16814 Outputs LED Driver Evaluation Board

Technical Specifications

Parameters and characteristics for this part

Specification	MAX16814EVKIT+

Contents	Board
Current - Output / Channel	150 mA
Features	Dimmable
Non-Isolated Output Count	4
Output Type	Non-Isolated
Total Output Count	4 count
Utilized IC / Part	MAX16814
Voltage - Input (Maximum)	40 V
Voltage - Input (Minimum)	6.5 V
Voltage - Output	40 V

MAX16814 Series

Part	Frequency (Max)	Frequency (Min)	Package Name	Voltage - Supply (Min)	Internal Switch(s)	Dimming	Mounting Type	Applications	Package Width	Package Features	Package Length	Type	Operating Temperature (Max)	Operating Temperature (Min)	Current - Output / Channel	Number of Outputs	Topology	Voltage - Supply (Max)	Features	Total Output Count	Output Type	Non-Isolated Output Count	Voltage - Input (Maximum)	Voltage - Input (Minimum)	Contents	Utilized IC / Part	Voltage - Output	Package / Case
Analog Devices Inc./Maxim Integrated MAX16814BUTP+
Analog Devices Inc./Maxim Integrated MAX16814CATP+
Analog Devices Inc./Maxim Integrated MAX16814AUP/V+T	2 MHz	200 kHz	20-TSSOP 20-TSSOP-EP	4.75 V	No	PWM	Surface Mount	Backlight Lighting	4.4 mm	Exposed Pad	0.173 in	DC DC Controller	125 °C	-40 °C	150 mA	4	SEPIC Step-Down (Buck) Step-Up (Boost)	40 V
Analog Devices Inc./Maxim Integrated MAX16814EVKIT+															150 mA				Dimmable	4 count	Non-Isolated	4	40 V	6.5 V	Board	MAX16814	40 V
Analog Devices Inc./Maxim Integrated MAX16814AUP+	2 MHz	200 kHz	20-TSSOP 20-TSSOP-EP	4.75 V	No	PWM	Surface Mount	Backlight Lighting	4.4 mm	Exposed Pad	0.173 in	DC DC Controller	125 °C	-40 °C	150 mA	4	SEPIC Step-Down (Buck) Step-Up (Boost)	40 V
Analog Devices Inc./Maxim Integrated MAX16814AGP/VY+T	2 MHz	200 kHz	20-QFND	4.75 V	No	PWM	Surface Mount Wettable Flank	Backlight Lighting	4 mm		4 mm	DC DC Controller	125 °C	-40 °C	150 mA	4	SEPIC Step-Down (Buck) Step-Up (Boost)	40 V										20-VFQFN Exposed Pad
Analog Devices Inc./Maxim Integrated MAX16814CAUP+T	2 MHz	200 kHz	20-TSSOP 20-TSSOP-EP	4.75 V	No	PWM	Surface Mount	Backlight Lighting	4.4 mm	Exposed Pad	0.173 in	DC DC Controller	125 °C	-40 °C	150 mA	4	SEPIC Step-Down (Buck) Step-Up (Boost)	40 V
Analog Devices Inc./Maxim Integrated MAX16814AGP/VY+	2 MHz	200 kHz	20-QFND	4.75 V	No	PWM	Surface Mount Wettable Flank	Backlight Lighting	4 mm		4 mm	DC DC Controller	125 °C	-40 °C	150 mA	4	SEPIC Step-Down (Buck) Step-Up (Boost)	40 V										20-VFQFN Exposed Pad
Analog Devices Inc./Maxim Integrated MAX16814CATP+T	2 MHz	200 kHz	20-TQFN	4.75 V	No	PWM	Surface Mount	Backlight Lighting	4 mm		4 mm	DC DC Controller	125 °C	-40 °C	150 mA	4	SEPIC Step-Down (Buck) Step-Up (Boost)	40 V										20-WFQFN Exposed Pad
Analog Devices Inc./Maxim Integrated MAX16814ATP+	2 MHz	200 kHz	20-TQFN	4.75 V	No	PWM	Surface Mount	Backlight Lighting	4 mm		4 mm	DC DC Controller	125 °C	-40 °C	150 mA	4	SEPIC Step-Down (Buck) Step-Up (Boost)	40 V										20-WFQFN Exposed Pad

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

Datasheet

MAX16814EVKIT+ | Datasheet
