CCA-000-M02R190

Active

MH Connectors

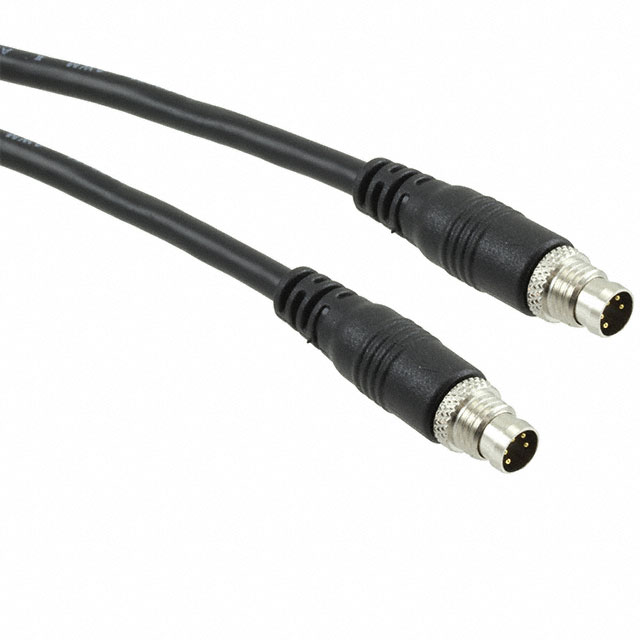

SENSOR CORD, M8 PLUG-M8 PLUG, 2M ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Miscellaneous EN +1

CCA-000-M02R190

Active

MH Connectors

SENSOR CORD, M8 PLUG-M8 PLUG, 2M ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet Miscellaneous EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CCA-000-M02R190

1st Connector Gender	Male Pins
1st Connector Mounting Type	Free Hanging (In-Line)
1st Connector Number of Positions	5
1st Connector Number of Positions Loaded	All
1st Connector Orientation [custom]	Keyed
1st Connector Shell Size - Insert	M8
1st Connector Type	Receptacle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Connector Number of Positions	5
2nd Connector Number of Positions Loaded	All
2nd Connector Shell Size - Insert	M8
2nd Connector Type	Receptacle
Assembly Configuration	Standard
Cable Material	Polyvinyl Chloride (PVC)
Cable Type	Round
Color	Black
Ingress Protection	IP67 - Dust Tight, Waterproof
Length [x]	2 m
Length [x]	6.56 ft
Shielding	Shielded
Usage	Industrial Environments

CCA-000 Series

Part	Color	Cable Material	1st Connector Shell Size - Insert	2nd Connector Shell Size - Insert	2nd Connector Number of Positions Loaded	1st Connector Orientation [custom]	2nd Connector Number of Positions	1st Connector Number of Positions Loaded	Shielding	1st Connector Type	2nd Connector Type	Usage	Cable Type	1st Connector Mounting Type	2nd Connector Mounting Type	Length [x]	Length [x]	Ingress Protection	1st Connector Number of Positions	1st Connector Gender	Assembly Configuration	2nd Connector Gender
MH Connectors CCA-000-M02R190	Black	Polyvinyl Chloride (PVC)	M8	M8	All	Keyed	5	All	Shielded	Receptacle	Receptacle	Industrial Environments	Round	Free Hanging (In-Line)	Free Hanging (In-Line)	2 m	6.56 ft	IP67 - Dust Tight Waterproof	5	Male Pins	Standard
MH Connectors CCA-000-M03R199	Black	Polyvinyl Chloride (PVC)	M12			Keyed		All	Shielded	Receptacle	Wire Leads	Industrial Environments	Round	Free Hanging (In-Line)		3 m	9.84 ft	IP67 - Dust Tight Waterproof	8 positions	Male Pins	Standard
MH Connectors CCA-000-M03R212	Black	Polyvinyl Chloride (PVC)	M12	M12	All	Keyed	4	All	Shielded	Plug Right Angle	Plug	Industrial Environments	Round	Free Hanging (In-Line)	Free Hanging (In-Line)	3 m	9.84 ft	IP67 - Dust Tight Waterproof	4	Female Sockets	Standard	Female Sockets
MH Connectors CCA-000-M01R217	Black	Polyvinyl Chloride (PVC)	M12			Keyed		All	Shielded	Plug Right Angle	Wire Leads	Industrial Environments	Round	Free Hanging (In-Line)		1 m	3.28 ft	IP67 - Dust Tight Waterproof	8 positions	Female Sockets	Standard
MH Connectors CCA-000-M03R228	Black	Polyvinyl Chloride (PVC)	M5	M5	All	Keyed	3	All	Shielded	Receptacle	Receptacle	Industrial Environments	Round	Free Hanging (In-Line)	Free Hanging (In-Line)	3 m	9.84 ft	IP67 - Dust Tight Waterproof	3	Male Pins	Standard
MH Connectors CCA-000-M03R202	Black	Polyvinyl Chloride (PVC)	M5	M5	All	Keyed	4	All	Shielded	Plug	Plug	Industrial Environments	Round	Free Hanging (In-Line)	Free Hanging (In-Line)	3 m	9.84 ft	IP67 - Dust Tight Waterproof	4	Female Sockets	Standard	Female Sockets
MH Connectors CCA-000-M02R209	Black	Polyvinyl Chloride (PVC)	M8			Keyed		All	Shielded	Plug	Wire Leads	Industrial Environments	Round	Free Hanging (In-Line)		2 m	6.56 ft	IP67 - Dust Tight Waterproof	5	Female Sockets	Standard
MH Connectors CCA-000-M01R190	Black	Polyvinyl Chloride (PVC)	M8	M8	All	Keyed	5	All	Shielded	Receptacle	Receptacle	Industrial Environments	Round	Free Hanging (In-Line)	Free Hanging (In-Line)	1 m	3.28 ft	IP67 - Dust Tight Waterproof	5	Male Pins	Standard
MH Connectors CCA-000-M01R213	Black	Polyvinyl Chloride (PVC)	M12	M12	All	Keyed	8	All	Shielded	Plug Right Angle	Plug	Industrial Environments	Round	Free Hanging (In-Line)	Free Hanging (In-Line)	1 m	3.28 ft	IP67 - Dust Tight Waterproof	8 positions	Female Sockets	Standard	Female Sockets
MH Connectors CCA-000-M02R199	Black	Polyvinyl Chloride (PVC)	M12			Keyed		All	Shielded	Receptacle	Wire Leads	Industrial Environments	Round	Free Hanging (In-Line)		2 m	6.56 ft	IP67 - Dust Tight Waterproof	8 positions	Male Pins	Standard

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	20	$ 30.64
Newark	Each	1	$ 49.29
		5	$ 47.88
		10	$ 46.46
		25	$ 34.60

Description

General part information

CCA-000 Series

Circular Cable Assembly Shielded 6.56' (2.00m)

Documents

Technical documentation and resources

Datasheet

Miscellaneous EN

Datasheet

Drawing EN

Datasheet
