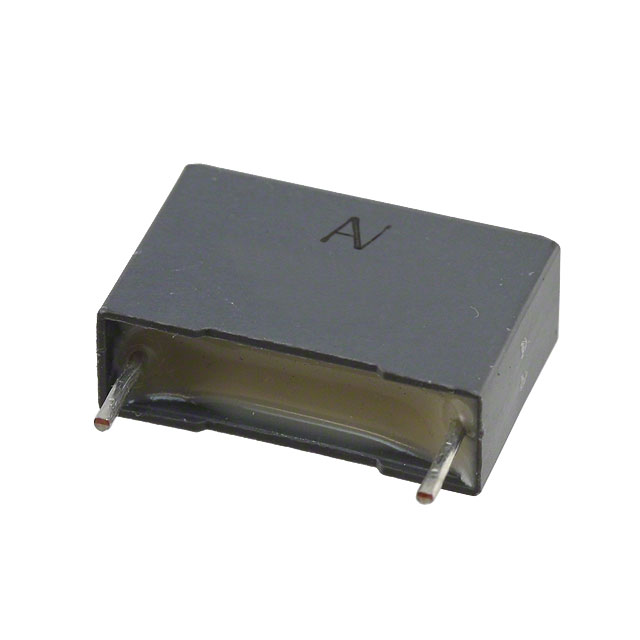

R745I2100AA00J

Active

KEMET

CAP FILM 0.01UF 1600V PP 5%( 18 X 6 X 12MM) RADIAL WOUND 15MM 0.064 OHM 105°C BAG AUTOMOTIVE AEC-Q200

Search across all available documentation for this part.

Active

KEMET

CAP FILM 0.01UF 1600V PP 5%( 18 X 6 X 12MM) RADIAL WOUND 15MM 0.064 OHM 105°C BAG AUTOMOTIVE AEC-Q200

Technical Specifications

Parameters and characteristics for this part

Specification	R745I2100AA00J

Applications	High Pulse, DV/DT
Capacitance	10000 pF
Dielectric Material	Metallized, Polypropylene (PP)
Height - Seated (Max) [Max] [z]	12.1 mm
Height - Seated (Max) [Max] [z]	0.476 "
Lead Spacing	15 mm
Lead Spacing	0.591 in
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	Radial
Size / Dimension [x]	0.709 in
Size / Dimension [x]	18 mm
Size / Dimension [y]	0.236 in
Size / Dimension [y]	6 mm
Termination	PC Pins
Tolerance	5 %
Voltage Rating - AC	500 V
Voltage Rating - DC	1600 V
Voltage Rating - DC	1.6 kV

Part	Voltage Rating - AC	Capacitance	Operating Temperature [Max]	Operating Temperature [Min]	Tolerance	Package / Case	Termination	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Dielectric Material	Mounting Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Lead Spacing	Lead Spacing	Applications	Voltage Rating - DC	Voltage Rating - DC
KEMET R745I2100AA00J	500 V	10000 pF	105 ░C	-55 °C	5 %	Radial	PC Pins	0.709 in	0.236 in	18 mm	6 mm	Metallized Polypropylene (PP)	Through Hole	12.1 mm	0.476 "	15 mm	0.591 in	DV/DT High Pulse	1600 V	1.6 kV

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10000 pF Film Capacitor 500V 1600V (1.6kV) Polypropylene (PP), Metallized Radial
