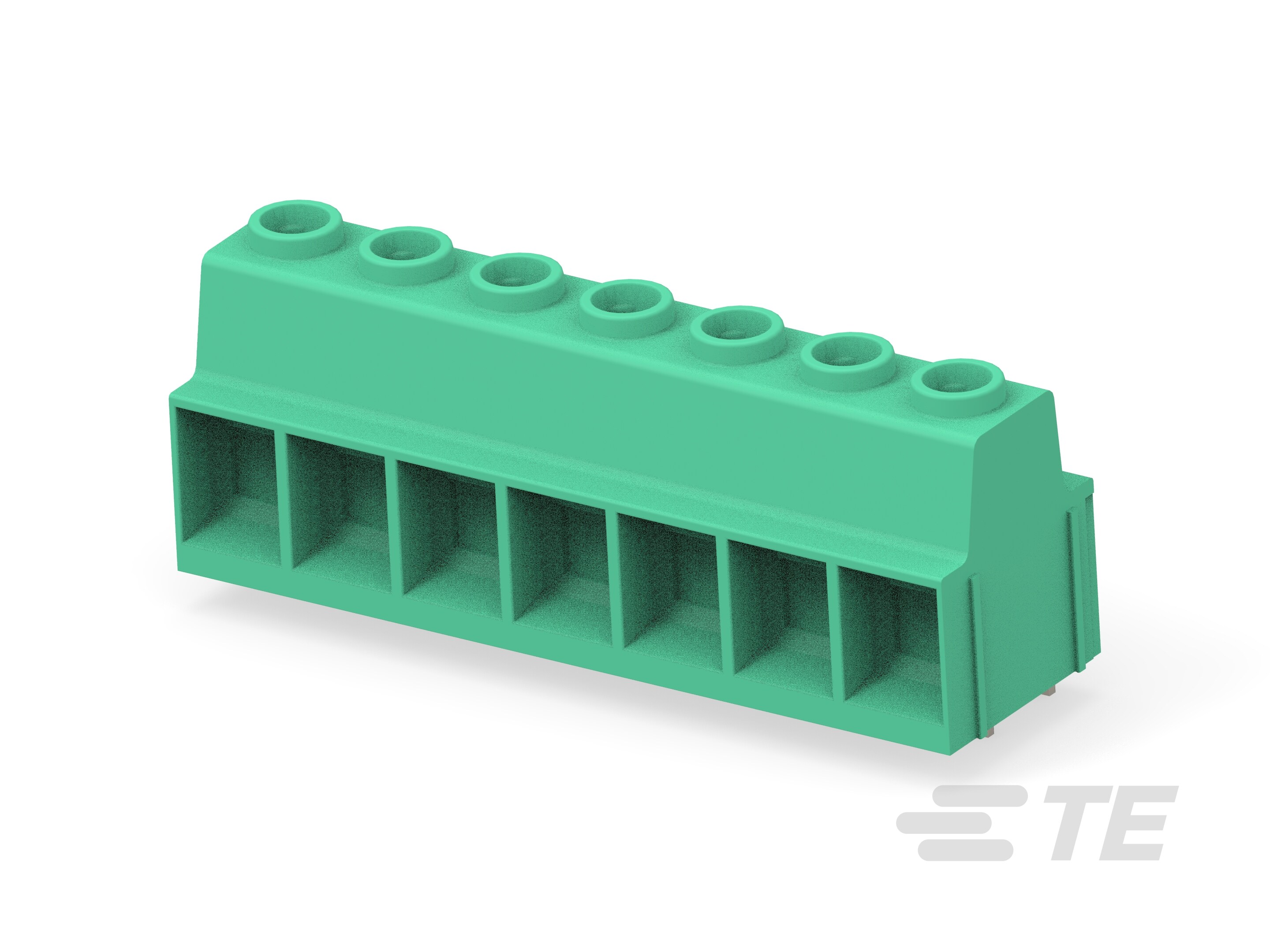

PWR TB DBL PIN 7P, 15.00 PCB-1986713-7

1986713-7

Active
TE Connectivity AMP Connectors

FIXED TERMINAL BLOCKS 15MM PWR TERM BLK 7P

Find alt

Description

General part information

1986713 Series

7 Position PCB Terminal Block, Header, Wire-to-Component, 15 mm [.591 in] Centerline, 2 Row, 90° Wire Entry Angle, 20 – 1 AWG, .5 – 41 mm² Wire

Technical Specifications

Parameters and characteristics for this part

Specification1986713-7
Clamp MaterialSteel
Clamp PlatingTin Plated
ColorGreen
Contact MaterialCopper Alloy
Current130 A
FeaturesInterlocking (Side)
Housing MaterialNylon, Polyamide, PA
Mating OrientationHorizontal with Board
Mounting TypeThrough Hole
Number of Levels1
Operating Temperature (Max)110 °C
Operating Temperature (Min)-40 °C
Pitch0.591 in
PlatingTin Plated
Positions Per Level7
Screw MaterialSteel
Screw PlatingNickel Plated
Screw ThreadM5
Torque - Screw (Maximum)2.5 Nm
Torque - Screw (Minimum)2.1 Nm
Voltage600 V
Wire Gauge (AWG) (Max)20.5 AWG
Wire Gauge (AWG) (Min)1 AWG
Wire TerminationScrew
