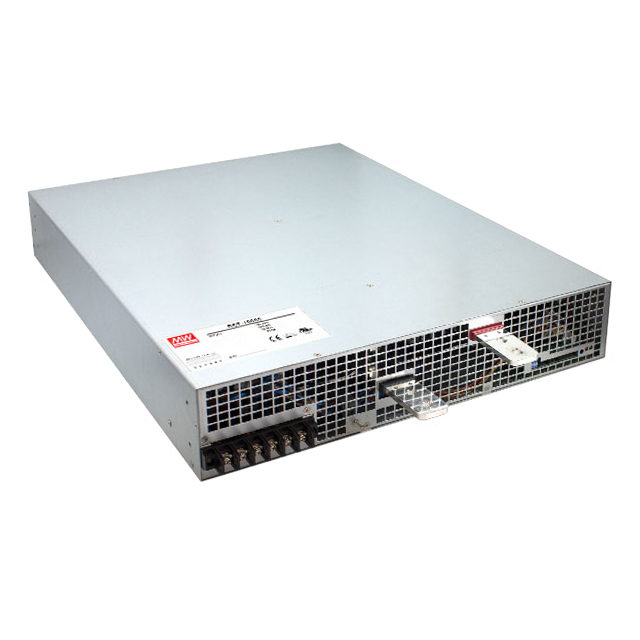

RST-10000-36

Active

AC/DC CONVERTER 36V 9936W

Active

AC/DC CONVERTER 36V 9936W

Description

General part information

Enclosed AC DC Converters 1 Output 36V 196 ~ 305 VAC (3 Phase), 340 ~ 530 VAC (3 Phase) Input

Parameters and characteristics for this part

Specification	RST-10000-36

Applications	ITE (Commercial)
Approval Agency	cURus, CB, TUV, CE
Current - Output 1	276 A
Efficiency	90 %
Features	PFC, Remote On/Off, Adjustable Output
Minimum Load Required	No
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-30 °C
Power (Watts)	9936 W
Size / Dimension Height	3.29 in
Size / Dimension Length	21.26 in
Size / Dimension Width	16.69 in
Type	Enclosed
Voltage - Input (3 Phase) Maximum	305 V, 530 V
Voltage - Input (3 Phase) Minimum	340 V, 196 V
Voltage - Isolation	3 kV
Voltage - Output 1	36 V

Part	Minimum Load Required	Efficiency	Voltage - Input (3 Phase) Minimum	Voltage - Input (3 Phase) Maximum	Mounting Type	Number of Outputs	Type	Approval Agency	Size / Dimension Length	Size / Dimension Height	Size / Dimension Width	Voltage - Output 1	Power (Watts)	Features	Current - Output 1	Operating Temperature (Max)	Operating Temperature (Min)	Voltage - Isolation	Applications
MEAN WELL USA Inc. RST-10000-36	No	90 %	196 V 340 V	305 V 530 V	Chassis Mount	1	Enclosed	CB CE cURus TUV	21.26 in	3.29 in	16.69 in	36 V	9936 W	Adjustable Output PFC Remote On/Off	276 A	70 °C	-30 °C	3 kV	ITE (Commercial)
MEAN WELL USA Inc. RST-10000-48	No	91 %	196 V 340 V	305 V 530 V	Chassis Mount	1	Enclosed	CB CE cURus TUV	21.26 in	3.29 in	16.69 in	48 V	10080 W	Adjustable Output PFC Remote On/Off	210 A	70 °C	-30 °C	3 kV	ITE (Commercial)
