ECA-2AM101

Active

Panasonic Industrial Automation Sales

CAP ALUM 100UF 20% 100V RADIAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsECA-xxM Spec Sheet Datasheet

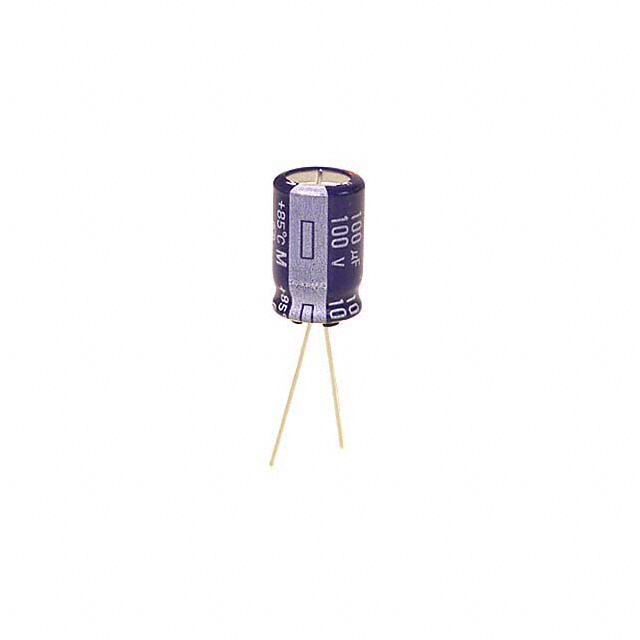

ECA-2AM101

Active

Panasonic Industrial Automation Sales

CAP ALUM 100UF 20% 100V RADIAL

Deep-Dive with AI

DocumentsECA-xxM Spec Sheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ECA-2AM101

Applications	General Purpose
Capacitance	100 µF
Height - Seated (Max) [Max] [z]	17 mm
Height - Seated (Max) [Max] [z]	0.669 in
Lead Spacing	5 mm
Lead Spacing	0.197 in
Lifetime @ Temp.	2000 Hrs
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Radial, Can
Polarization	Polar
Ripple Current @ High Frequency	595 mA
Ripple Current @ Low Frequency	350 mA
Size / Dimension [diameter]	10 mm
Size / Dimension [diameter]	0.394 in
Tolerance	20 %
Voltage - Rated	100 V

ECA-2AM Series

Part	Voltage - Rated	Tolerance	Lifetime @ Temp.	Applications	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Polarization	Lead Spacing	Lead Spacing	Size / Dimension [diameter]	Size / Dimension [diameter]	Ripple Current @ High Frequency	Operating Temperature [Max]	Operating Temperature [Min]	Capacitance	Package / Case	Mounting Type	Ripple Current @ Low Frequency	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Panasonic Industrial Automation Sales ECA-2AM4R7B	100 V	20 %	2000 Hrs	General Purpose	12 mm	0.472 "	Polar	5 mm	0.197 in	5 mm	0.197 "	85 mA	85 °C	-40 °C	4.7 µF	Radial Can	Through Hole
Panasonic Industrial Automation Sales ECA-2AM2R2	100 V	20 %	2000 Hrs	General Purpose	12 mm	0.472 "	Polar	2 mm	0.079 in	5 mm	0.197 "	51 mA	85 °C	-40 °C	2.2 µF	Radial Can	Through Hole	30 mA
Panasonic Industrial Automation Sales ECA-2AMR47	100 V	20 %	2000 Hrs	General Purpose	12 mm	0.472 "	Polar	2 mm	0.079 in	5 mm	0.197 "	17 mA	85 °C	-40 °C	0.47 µF	Radial Can	Through Hole
Panasonic Industrial Automation Sales ECA-2AM330B	100 V	20 %	2000 Hrs	General Purpose			Polar	5 mm	0.197 in	8 mm	0.315 "	246.5 mA	85 °C	-40 °C	33 ÁF	Radial Can	Through Hole	145 mA	0.492 in	12.5 mm
Panasonic Industrial Automation Sales ECA-2AM2R2B	100 V	20 %	2000 Hrs	General Purpose	12 mm	0.472 "	Polar	5 mm	0.197 in	5 mm	0.197 "	51 mA	85 °C	-40 °C	2.2 µF	Radial Can	Through Hole	30 mA
Panasonic Industrial Automation Sales ECA-2AM330	100 V	20 %	2000 Hrs	General Purpose			Polar	3.5 mm	0.138 in	8 mm	0.315 "	246.5 mA	85 °C	-40 °C	33 ÁF	Radial Can	Through Hole	145 mA	0.492 in	12.5 mm
Panasonic Industrial Automation Sales ECA-2AM101	100 V	20 %	2000 Hrs	General Purpose	17 mm	0.669 in	Polar	5 mm	0.197 in	10 mm	0.394 in	595 mA	85 °C	-40 °C	100 µF	Radial Can	Through Hole	350 mA
Panasonic Industrial Automation Sales ECA-2AM470	100 V	20 %	2000 Hrs	General Purpose			Polar	3.5 mm	0.138 in	8 mm	0.315 "	306 mA	85 °C	-40 °C	47 µF	Radial Can	Through Hole	180 mA	0.492 in	12.5 mm
Panasonic Industrial Automation Sales ECA-2AM010	100 V	20 %	2000 Hrs	General Purpose	12 mm	0.472 "	Polar	2 mm	0.079 in	5 mm	0.197 "	34 mA	85 °C	-40 °C	1 µF	Radial Can	Through Hole
Panasonic Industrial Automation Sales ECA-2AM4R7I	100 V	20 %	2000 Hrs	General Purpose	12 mm	0.472 "	Polar	2.5 mm	0.098 in	5 mm	0.197 "	85 mA	85 °C	-40 °C	4.7 µF	Radial Can	Through Hole

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.69
		10	$ 0.43
		50	$ 0.33
		200	$ 0.26
		600	$ 0.23
		1000	$ 0.21
		2600	$ 0.19
		5000	$ 0.18

Description

General part information

ECA-2AM Series

100 µF 100 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C

Documents

Technical documentation and resources

ECA-xxM Spec Sheet

Datasheet
