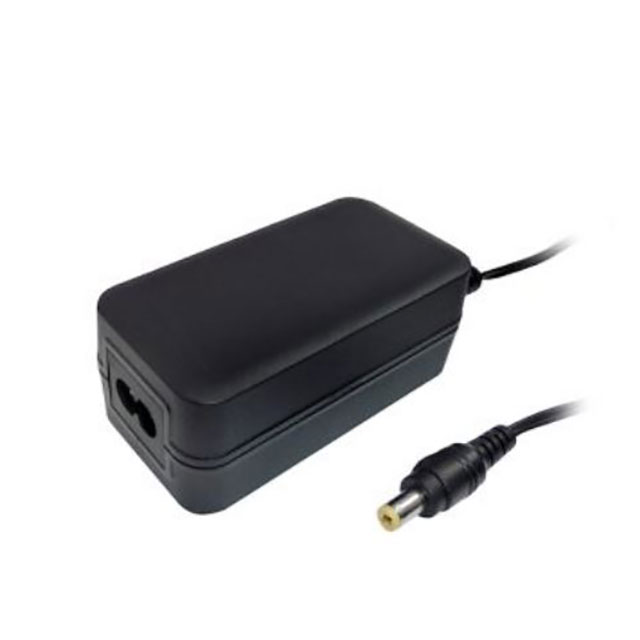

15DYS865-300216W

Active

IDEAL POWER

ADAPTER, AC-DC, 1 O/P, 30V, 2.16A ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

IDEAL POWER

ADAPTER, AC-DC, 1 O/P, 30V, 2.16A ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Part	Standard Number	Form	Input Connector	Cord Length	Cord Length	Voltage - Input [Min]	Voltage - Input [Max]	Voltage - Output	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Approval Agency	Polarization	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Power (Watts)	Output Connector	Output Connector [diameter]	Output Connector [z]	Current - Output (Max) [Max]	Efficiency	No Load Power Consumption	Region Utilized	Input Type
IDEAL POWER 15DYS865-180350W	60950-1	Desktop (Class II)	IEC 320-C8	1.5 m	59 in	90 VAC	264 VAC	18 V	53 mm	32 mm	4.72 in	120 mm	1.26 in	2.09 "	CB CCC CE FCC GS PSE RCM TUV	Positive Center	40 °C	0 °C	ITE (Commercial)	63 W	Barrel Plug	2.1 mm 5.5 mm	12 mm	3.5 A	88 %	210 mW	International	Cord
IDEAL POWER 15DYS865-300216W	60950-1	Desktop (Class II)	IEC 320-C8	1.5 m	59 in	90 VAC	264 VAC	30 VDC	53 mm	32 mm	4.72 in	120 mm	1.26 in	2.09 "	CB CCC CE FCC GS PSE RCM TUV	Positive Center	40 °C	0 °C	ITE (Commercial)	65 W	Barrel Plug	2.1 mm 5.5 mm	12 mm	2.16 A	88 %	210 mW	International	Cord

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

30V 65 W AC/DC External Desktop (Class II) Adapter Cord (Sold Separately) Input
