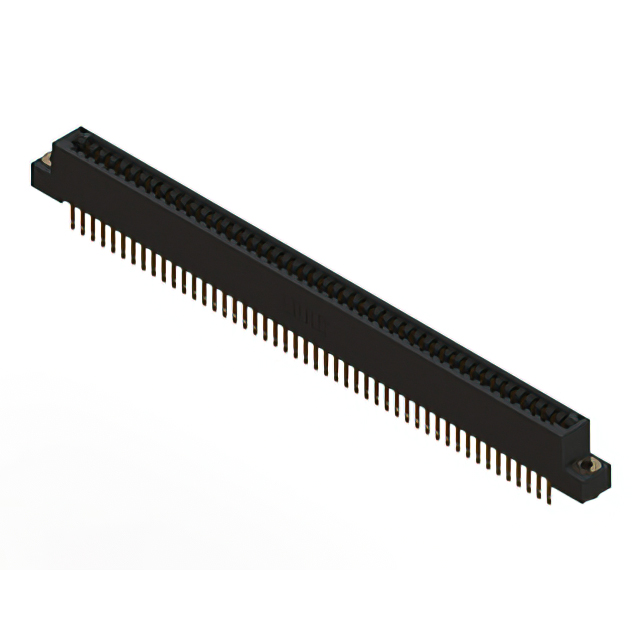

896-096-500-203

Active

EDAC Inc.

3.18MM STRAIGHT 96P -40℃~+125℃ PLUGIN,P=3.18MM EDGEBOARD CONNECTORS ROHS

Search across all available documentation for this part.

Active

EDAC Inc.

3.18MM STRAIGHT 96P -40℃~+125℃ PLUGIN,P=3.18MM EDGEBOARD CONNECTORS ROHS

Technical Specifications

Parameters and characteristics for this part

Specification	896-096-500-203

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Floating Bobbin, Flush Mount
Flange Feature [diameter]	0.116 in
Flange Feature [diameter]	2.95 mm
Gender	Female
Material - Insulation	Polyphenylene Sulfide (PPS)
Mounting Type	Through Hole
Number of Positions	96
Number of Positions/Bay/Row [custom]	48
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.125 in
Pitch [x]	3.18 mm
Read Out	Dual
Termination	Solder Eyelet(s)
Termination Rows	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

96 Position Female Connector Non Specified - Dual Edge Gold 0.125" (3.18mm) Black
