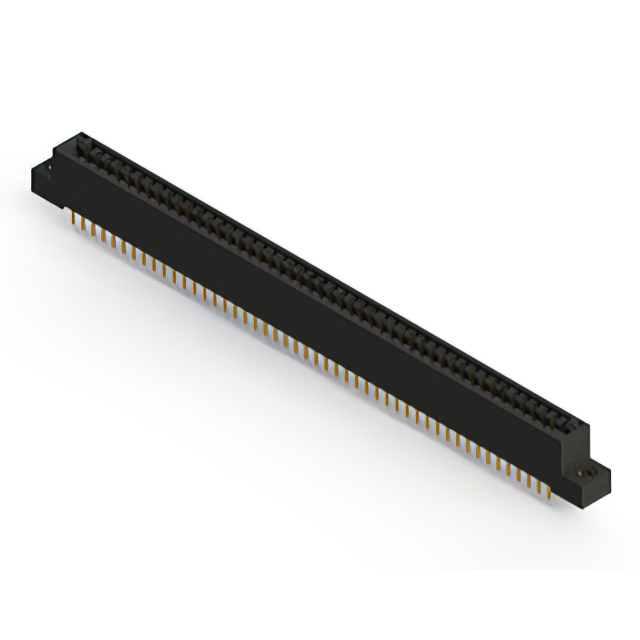

896-096-521-207
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 96POS 0.125
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
896-096-521-207
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 96POS 0.125
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 896-096-521-207 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Top Opening, Flush Mount, M3, Threaded Insert |
| Gender | Female |
| Material - Insulation | Polyphenylene Sulfide (PPS) |
| Mounting Type | Through Hole |
| Number of Positions | 96 |
| Number of Positions/Bay/Row [custom] | 48 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.125 in |
| Pitch [x] | 3.18 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
896-096 Series
...
| Part | Contact Finish | Termination | Termination Rows | Number of Positions | Read Out | Number of Positions/Bay/Row [custom] | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Finish Thickness | Contact Finish Thickness | Pitch [x] | Pitch [x] | Number of Rows | Mounting Type | Contact Material | Card Type | Gender | Color | Contact Type | Material - Insulation | Operating Temperature [Max] | Operating Temperature [Min] | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Features | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Gold | Solder | 2 | 96 | Dual | 48 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | 0.125 in | 3.18 mm | 2 | Through Hole | Copper Alloy | Non Specified - Dual Edge | Female | Black | Cantilever | Polyphenylene Sulfide (PPS) | 125 °C | -40 °C | ||||||
EDAC Inc. | Gold | Solder | 2 | 96 | Dual | 48 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | 0.125 in | 3.18 mm | 2 | Through Hole | Copper Alloy | Non Specified - Dual Edge | Female | Black | Cantilever | Polyphenylene Sulfide (PPS) | 125 °C | -40 °C | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | |||
EDAC Inc. | Gold | Solder | 2 | 96 | Dual | 48 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | 0.125 in | 3.18 mm | 2 | Board Edge Straddle Mount | Copper Alloy | Non Specified - Dual Edge | Female | Black | Cantilever | Polyphenylene Sulfide (PPS) | 125 °C | -40 °C | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | Card Extender | ||
EDAC Inc. | Gold | Solder | 2 | 96 | Dual | 48 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | 0.125 in | 3.18 mm | 2 | Through Hole Right Angle | Copper Alloy | Non Specified - Dual Edge | Female | Black | Cantilever | Polyphenylene Sulfide (PPS) | 125 °C | -40 °C | Side Mount Opening Unthreaded | 3.25 mm | 0.128 in | |||
EDAC Inc. | Gold | Solder | 2 | 96 | Dual | 48 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | 0.125 in | 3.18 mm | 2 | Through Hole | Copper Alloy | Non Specified - Dual Edge | Female | Black | Cantilever | Polyphenylene Sulfide (PPS) | 125 °C | -40 °C | Flush Mount M3 Threaded Insert Top Opening | |||||
EDAC Inc. | Gold | Solder | 2 | 96 | Dual | 48 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | 0.125 in | 3.18 mm | 2 | Through Hole | Copper Alloy | Non Specified - Dual Edge | Female | Black | Cantilever | Polyphenylene Sulfide (PPS) | 125 °C | -40 °C | 3.25 mm | 0.128 in | ||||
EDAC Inc. | Gold | Solder | 2 | 96 | Dual | 48 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | 0.125 in | 3.18 mm | 2 | Board Edge Straddle Mount | Copper Alloy | Non Specified - Dual Edge | Female | Black | Cantilever | Polyphenylene Sulfide (PPS) | 125 °C | -40 °C | Flush Mount M3 Threaded Insert Top Opening | Card Extender | ||||
EDAC Inc. | Gold | Solder | 2 | 96 | Dual | 48 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | 0.125 in | 3.18 mm | 2 | Through Hole | Copper Alloy | Non Specified - Dual Edge | Female | Black | Cantilever | Polyphenylene Sulfide (PPS) | 125 °C | -40 °C | 4-40 Threaded Insert Top Mount Opening | |||||
EDAC Inc. | Gold | Solder Eyelet(s) | 2 | 96 | Dual | 48 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | 0.125 in | 3.18 mm | 2 | Board Edge Straddle Mount | Copper Alloy | Non Specified - Dual Edge | Female | Black | Cantilever | Polyphenylene Sulfide (PPS) | 125 °C | -40 °C | Card Extender | 3.25 mm | 0.128 in | |||
EDAC Inc. | Gold | Solder | 2 | 96 | Dual | 48 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | 0.125 in | 3.18 mm | 2 | Board Edge Straddle Mount | Copper Alloy | Non Specified - Dual Edge | Female | Black | Cantilever | Polyphenylene Sulfide (PPS) | 125 °C | -40 °C | 2.95 mm | Floating Bobbin Flush Mount | 0.116 in | Card Extender |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 25 | $ 102.38 | |
Description
General part information
896-096 Series
96 Position Female Connector Non Specified - Dual Edge Gold 0.125" (3.18mm) Black
