HMSP-TM-6-01

Active

Essentra Access Solutions

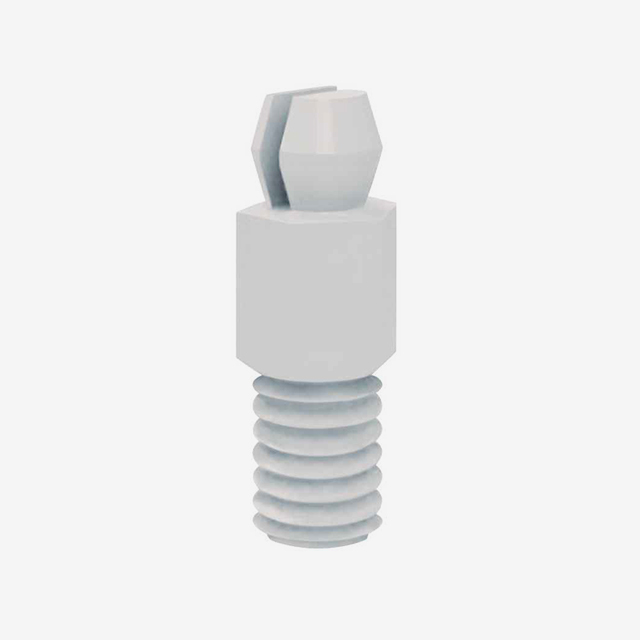

BRD SPT SNAP FIT THR STUD 3/8"

Search across all available documentation for this part.

Active

Essentra Access Solutions

BRD SPT SNAP FIT THR STUD 3/8"

Technical Specifications

Parameters and characteristics for this part

Specification	HMSP-TM-6-01

Between Board Height	0.375 in
Between Board Height	0.375 in
Between Board Height	9.53 mm
Features	6-32 Thread
Holding Type	Snap Fit
Length - Overall [x]	19.07 mm
Length - Overall [x]	0.751 in
Material	Nylon
Mounting Type	Threaded Stud
Support Hole Diameter [diameter]	0.152 in
Support Hole Diameter [diameter]	3.86 mm
Support Panel Thickness	0.0625 "
Support Panel Thickness	0.062 "
Support Panel Thickness	1.57 mm

Part	Between Board Height	Between Board Height	Between Board Height	Support Panel Thickness	Support Panel Thickness	Support Panel Thickness	Material	Mounting Type	Support Hole Diameter [diameter]	Support Hole Diameter [diameter]	Holding Type	Length - Overall [x]	Length - Overall [x]	Features	Length - Overall	Length - Overall
Essentra Access Solutions HMSP-TM-14-01	0.875 in	22.23 mm	0.875 in	0.0625 "	0.062 "	1.57 mm	Nylon	Threaded Stud	0.152 in	3.86 mm	Snap Fit	31.77 mm	1.251 in	6-32 Thread
Essentra Access Solutions HMSP-TM-6-01	9.53 mm	0.375 in	0.375 in	0.0625 "	0.062 "	1.57 mm	Nylon	Threaded Stud	0.152 in	3.86 mm	Snap Fit	19.07 mm	0.751 in	6-32 Thread
Essentra Access Solutions HMSP-TM-4-01	6.35 mm	0.25 in	0.25 in	0.0625 "	0.062 "	1.57 mm	Nylon	Threaded Stud	0.152 in	3.86 mm	Snap Fit			6-32 Thread	0.629 in	15.97 mm
Essentra Access Solutions HMSP-TM-3-01	4.78 mm	0.1875 "	0.188 "	0.0625 "	0.062 "	1.57 mm	Nylon	Threaded Stud	0.152 in	3.86 mm	Snap Fit	14.37 mm	0.566 in	6-32 Thread
Essentra Access Solutions HMSP-TM-10-01	15.88 mm	0.625 in	0.625 in	0.0625 "	0.062 "	1.57 mm	Nylon	Threaded Stud	0.152 in	3.86 mm	Snap Fit	25.47 mm	1.003 in	6-32 Thread
