245107-02-06.00

Active

Amphenol RF

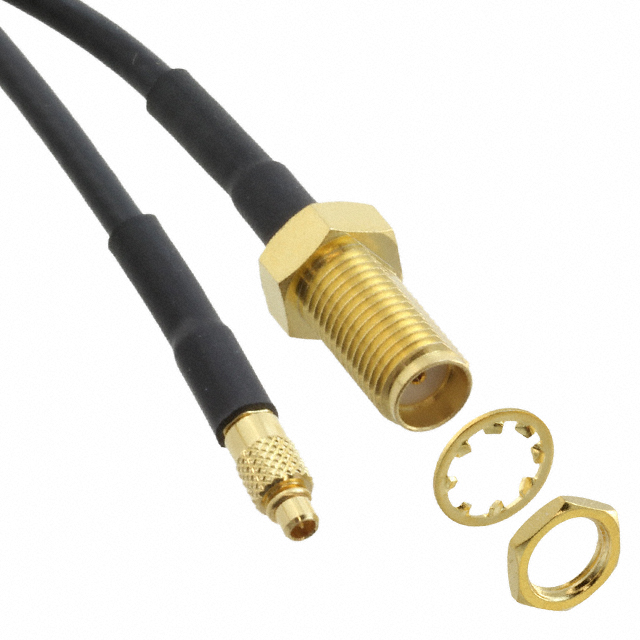

CBL ASSY SMA-MMCX JACK-PLUG 6"

Search across all available documentation for this part.

Active

Amphenol RF

CBL ASSY SMA-MMCX JACK-PLUG 6"

Technical Specifications

Parameters and characteristics for this part

Specification	245107-02-06.00

1st Connector	SMA Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	MMCX Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Impedance	50 Ohms
Cable Type	RG-174
Color	Black
Features	Shielded
Length	152.4 mm
Length	6 in
Overall Impedance	50 Ohms
Style	SMA to MMCX

Part	Overall Impedance	2nd Connector	Features	Style	2nd Connector Mounting Type	Length	Length	1st Contact Gender	1st Connector Mounting Type	1st Connector Mounting Feature	1st Connector	2nd Contact Gender	Cable Impedance	Color	Cable Type	Length [x]	Length [x]
Amphenol RF 245107-02-12.00	50 Ohms	MMCX Plug	Shielded	SMA to MMCX	Free Hanging (In-Line)	12 "	304.8 mm	Female	Panel Mount	Bulkhead - Front Side Nut	SMA Jack	Male	50 Ohms	Black	RG-174
Amphenol RF 245107-02-06.00	50 Ohms	MMCX Plug	Shielded	SMA to MMCX	Free Hanging (In-Line)	6 in	152.4 mm	Female	Panel Mount	Bulkhead - Front Side Nut	SMA Jack	Male	50 Ohms	Black	RG-174
Amphenol RF 245107-02-03.00	50 Ohms	MMCX Plug	Shielded	SMA to MMCX	Free Hanging (In-Line)	3 in	76.2 mm	Female	Panel Mount	Bulkhead - Front Side Nut	SMA Jack	Male	50 Ohms	Black	RG-174
Amphenol RF 245107-02-18.00	50 Ohms	MMCX Plug	Shielded	SMA to MMCX	Free Hanging (In-Line)			Female	Panel Mount	Bulkhead - Front Side Nut	SMA Jack	Male	50 Ohms	Black	RG-174	457.2 mm	457.2 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly Coaxial SMA to MMCX RG-174 6.000" (152.40mm)
