RCH895NP-822K

Active

Sumida America Components Inc.

FIXED IND 8.2MH 75MA 15.3 OHM TH

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

RCH895NP-822K

Active

Sumida America Components Inc.

FIXED IND 8.2MH 75MA 15.3 OHM TH

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	600	$ 0.34

Description

General part information

RCH895NP Series

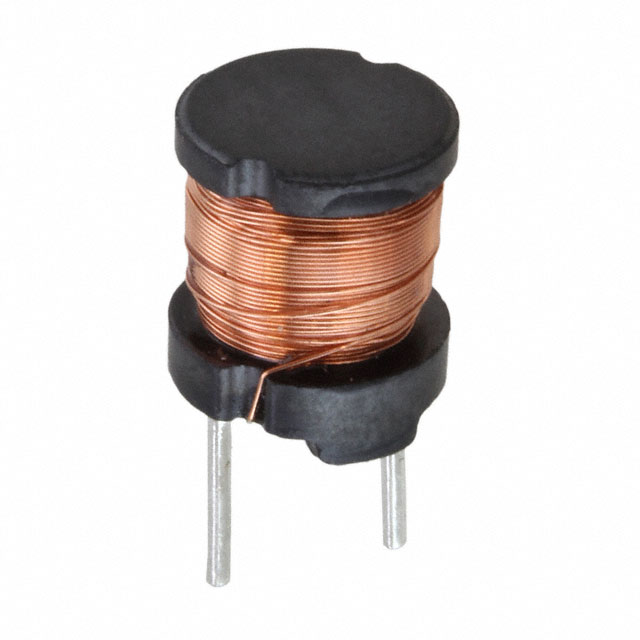

8.2 mH Unshielded Drum Core, Wirewound Inductor 75 mA 15.3Ohm Max Radial, Vertical Cylinder (Open)

Documents

Technical documentation and resources

Datasheet

Specification	RCH895NP-822K	RCH895NP Series

Current - Saturation (Isat)	100 mA	1 - 900 mA
Current Rating (Amps)	75 mA	0.037 - 760 mA
DC Resistance (DCR)	-	1.84 - 270 Ohm
DC Resistance (DCR) [Max]	15.3 Ohm	2.1 - 890 Ohm
Height - Seated (Max) [Max]	9.5 mm	9.5 mm
Height - Seated (Max) [Max]	0.374 in	0.374 in
Inductance	8.2 mH	1 - 220 mH
Inductance Frequency - Test	-	2.52 MHz
Material - Core	Ferrite	Ferrite
Mounting Type	Through Hole	Through Hole
Operating Temperature [Max]	100 °C	100 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	Radial, Vertical Cylinder (Open)	Radial, Vertical Cylinder (Open)
Shielding	Unshielded	Unshielded
Size / Dimension [diameter]	7.8 mm	7.8 mm
Size / Dimension [diameter]	0.307 in	0.307 in
Tolerance	10 %	10 %
Type	Wirewound, Drum Core	Wirewound, Drum Core

Part	Tolerance	Current - Saturation (Isat)	Operating Temperature [Max]	Operating Temperature [Min]	DC Resistance (DCR) [Max]	Inductance	Package / Case	Type	Shielding	Size / Dimension [diameter]	Size / Dimension [diameter]	Mounting Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Material - Core	Current Rating (Amps)	DC Resistance (DCR)	Inductance Frequency - Test
Sumida America Components Inc. RCH895NP-822K	10 %	100 mA	100 °C	-40 °C	15.3 Ohm	8.2 mH	Radial, Vertical Cylinder (Open)	Drum Core, Wirewound	Unshielded	7.8 mm	0.307 in	Through Hole	9.5 mm	0.374 in	Ferrite	75 mA
Sumida America Components Inc. RCH895NP-393K	10 %	42 mA	100 °C	-40 °C		39 mH	Radial, Vertical Cylinder (Open)	Drum Core, Wirewound	Unshielded	7.8 mm	0.307 in	Through Hole	9.5 mm	0.374 in	Ferrite	35 mA	74.2 Ohm
Sumida America Components Inc. RCH895NP-101K	10 %	900 mA	100 °C	-40 °C	190 mOhm	100 µH	Radial, Vertical Cylinder (Open)	Drum Core, Wirewound	Unshielded	7.8 mm	0.307 in	Through Hole	9.5 mm	0.374 in	Ferrite	0.72 A
Sumida America Components Inc. RCH895NP-102K	10 %		100 °C	-40 °C		1 mH	Radial, Vertical Cylinder (Open)	Drum Core, Wirewound	Unshielded	7.8 mm	0.307 in	Through Hole	9.5 mm	0.374 in	Ferrite	0.22 A	1.84 Ohm
Sumida America Components Inc. RCH895NP-222K	10 %	190 mA	100 °C	-40 °C	4.21 Ohm	2.2 mH	Radial, Vertical Cylinder (Open)	Drum Core, Wirewound	Unshielded	7.8 mm	0.307 in	Through Hole	9.5 mm	0.374 in	Ferrite	150 mA
Sumida America Components Inc. RCH895NP-150K	10 %	2.1 A	100 °C	-40 °C		15 µH	Radial, Vertical Cylinder (Open)	Drum Core, Wirewound	Unshielded	7.8 mm	0.307 in	Through Hole	9.5 mm	0.374 in	Ferrite	1.8 A	50 mOhm	2.52 MHz
Sumida America Components Inc. RCH895NP-122K	10 %	270 mA	100 °C	-40 °C	2.1 Ohm	1.2 mH	Radial, Vertical Cylinder (Open)	Drum Core, Wirewound	Unshielded	7.8 mm	0.307 in	Through Hole	9.5 mm	0.374 in	Ferrite	0.21 A
Sumida America Components Inc. RCH895NP-333K	10 %	48 mA	100 °C	-40 °C	64.2 Ohm	33 mH	Radial, Vertical Cylinder (Open)	Drum Core, Wirewound	Unshielded	7.8 mm	0.307 in	Through Hole	9.5 mm	0.374 in	Ferrite	0.037 A
Sumida America Components Inc. RCH895NP-471K	10 %	430 mA	100 °C	-40 °C	890 mOhm		Radial, Vertical Cylinder (Open)	Drum Core, Wirewound	Unshielded	7.8 mm	0.307 in	Through Hole	9.5 mm	0.374 in	Ferrite	320 mA
Sumida America Components Inc. RCH895NP-820K	10 %	1 A	100 °C	-40 °C	160 mOhm	82 µH	Radial, Vertical Cylinder (Open)	Drum Core, Wirewound	Unshielded	7.8 mm	0.307 in	Through Hole	9.5 mm	0.374 in	Ferrite	760 mA		2.52 MHz
