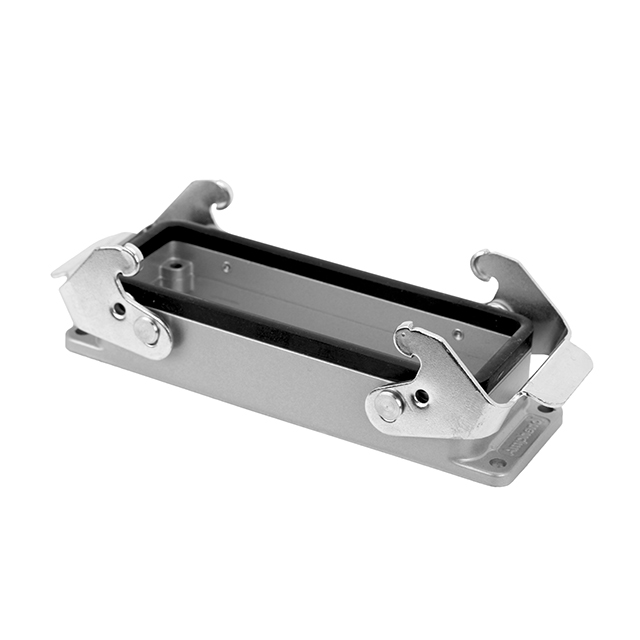

C146 50F024 000 1

Active

Amphenol Tuchel Industrial

CONN BASE BOTTOM ENTRY SZE24

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN BASE BOTTOM ENTRY SZE24

Technical Specifications

Parameters and characteristics for this part

Specification	C146 50F024 000 1

Connector Type	Base - Panel Mount
Housing Color	Gray
Housing Material	Aluminum Alloy, Die Cast
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (2) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	E24
Size / Dimension [x]	5.512 "
Size / Dimension [x]	140 mm
Size / Dimension [y]	43 mm
Size / Dimension [y]	1.693 in
Size / Dimension [z]	1.122 in
Size / Dimension [z]	28.5 mm
Style	Bottom Entry

Part	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size	Lock Location	Housing Material	Style	Connector Type	Housing Color
Amphenol Tuchel Industrial C146 50F024 000 1	IP65 - Dust Tight Water Resistant	125 °C	-40 °C	5.512 "	140 mm	1.122 in	43 mm	28.5 mm	1.693 in	E24	Locking Clip (2) on Base Bottom	Aluminum Alloy Die Cast	Bottom Entry	Base - Panel Mount	Gray

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 29.45

General part information

Base - Panel Mount Connector Bottom Entry E24 IP65 - Dust Tight, Water Resistant
