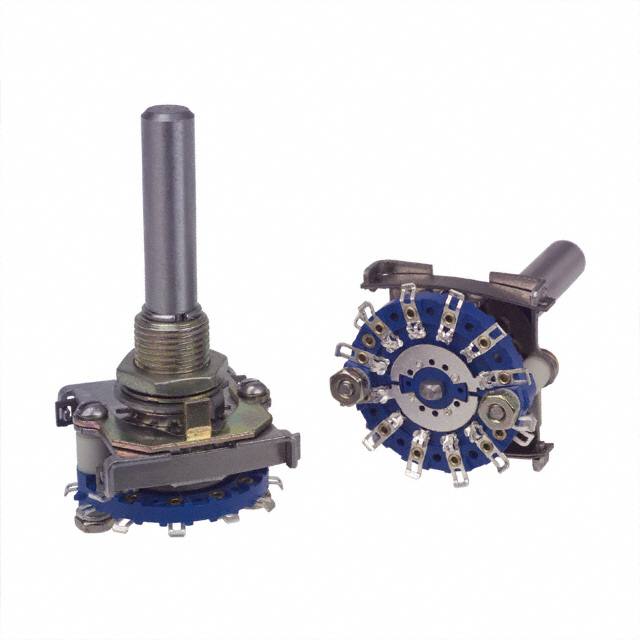

D2D0206N

Active

ELECTROSWITCH

SWITCH ROTARY 2-6POS 250MA 115V

Search across all available documentation for this part.

Active

ELECTROSWITCH

SWITCH ROTARY 2-6POS 250MA 115V

Technical Specifications

Parameters and characteristics for this part

Specification	D2D0206N

Actuator Length [x]	1 in
Actuator Type	Round
Actuator Type [diameter]	6.35 mm
Angle of Throw	30 °
Circuit per Deck [custom]	DP6T
Contact Finish	Silver
Contact Material	Brass
Contact Timing	Non-Shorting
Current Rating (Amps)	250 mA, 550 mA
Index Stops	Adjustable
Number of Decks [custom]	1
Number of Poles per Deck	2
Number of Positions [Max]	6
Number of Positions [Min]	2
Panel Cutout Dimensions [diameter]	9.78 mm
Termination Style	Solder Lug
Voltage Rating - AC	115 V
Voltage Rating - DC	28 V

Part	Panel Cutout Dimensions [diameter]	Voltage Rating - DC	Contact Material	Contact Finish	Current Rating (Amps)	Voltage Rating - AC	Actuator Type	Actuator Type [diameter]	Contact Timing	Number of Positions [Max]	Number of Positions [Min]	Actuator Length [x]	Index Stops	Number of Poles per Deck	Angle of Throw	Termination Style	Circuit per Deck [custom]	Number of Decks [custom]
ELECTROSWITCH D2D0206N	9.78 mm	28 V	Brass	Silver	250 mA 550 mA	115 V	Round	6.35 mm	Non-Shorting	6	2	1 in	Adjustable	2	30 °	Solder Lug	DP6T	1
ELECTROSWITCH D2D0206S	9.78 mm	28 V	Brass	Silver	250 mA 550 mA	115 V	Round	6.35 mm	Shorting	6	2	1 in	Adjustable	2	30 °	Solder Lug	DP6T	1
