Q-2P0710005.75M

Active

Amphenol Custom Cable

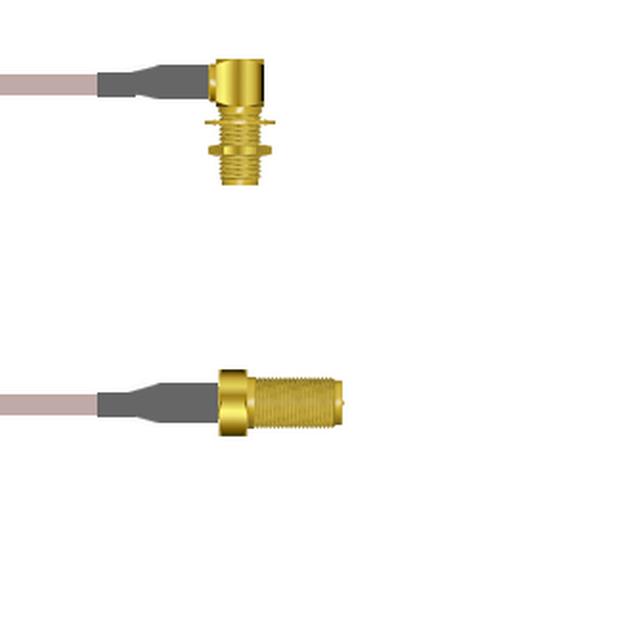

CBL ASSY SMA JACK TO JACK 29.53"

Deep-Dive with AI

Search across all available documentation for this part.

Q-2P0710005.75M

Active

Amphenol Custom Cable

CBL ASSY SMA JACK TO JACK 29.53"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2P0710005.75M

1st Connector	SMA Jack, Right Angle
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	SMA Jack
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Impedance	50 Ohms
Cable Type	RG-316
Color	Copper
Connector Impedance	50 Ohms
Features	Shielded
Frequency - Max [Max]	3 GHz
Length	29.53 "
Length	750 mm
Overall Impedance	50 Ohms
Style	SMA to SMA

Q-2P0710 Series

Part	2nd Contact Gender	2nd Connector	Cable Type	Connector Impedance	1st Connector	Overall Impedance	Style	2nd Connector Mounting Type	Cable Impedance	Frequency - Max [Max]	1st Connector Mounting Feature	1st Connector Mounting Type	Color	1st Contact Gender	Length	Length	Length	Features
Amphenol Custom Cable Q-2P07100051.5M	Female	SMA Jack	RG-316	50 Ohms	Right Angle SMA Jack	50 Ohms	SMA to SMA	Free Hanging (In-Line)	50 Ohms	3 GHz	Bulkhead - Front Side Nut	Panel Mount	Copper	Female	59.1 in	4.9 ft	1.5 m	Shielded
Amphenol Custom Cable Q-2P0710005036I	Female	SMA Jack	RG-316	50 Ohms	Right Angle SMA Jack	50 Ohms	SMA to SMA	Free Hanging (In-Line)	50 Ohms	3 GHz	Bulkhead - Front Side Nut	Panel Mount	Copper	Female	36 in		91.44 cm	Shielded
Amphenol Custom Cable Q-2P0710005.75M	Female	SMA Jack	RG-316	50 Ohms	Right Angle SMA Jack	50 Ohms	SMA to SMA	Free Hanging (In-Line)	50 Ohms	3 GHz	Bulkhead - Front Side Nut	Panel Mount	Copper	Female	29.53 "		750 mm	Shielded
Amphenol Custom Cable Q-2P0710005048I	Female	SMA Jack	RG-316	50 Ohms	Right Angle SMA Jack	50 Ohms	SMA to SMA	Free Hanging (In-Line)	50 Ohms	3 GHz	Bulkhead - Front Side Nut	Panel Mount	Copper	Female	48 in	4 ft	1200 mm	Shielded
Amphenol Custom Cable Q-2P0710005002M	Female	SMA Jack	RG-316	50 Ohms	Right Angle SMA Jack	50 Ohms	SMA to SMA	Free Hanging (In-Line)	50 Ohms	3 GHz	Bulkhead - Front Side Nut	Panel Mount	Copper	Female	78.7 in	6.6 ft	2 m	Shielded
Amphenol Custom Cable Q-2P0710005072I	Female	SMA Jack	RG-316	50 Ohms	Right Angle SMA Jack	50 Ohms	SMA to SMA	Free Hanging (In-Line)	50 Ohms	3 GHz	Bulkhead - Front Side Nut	Panel Mount	Copper	Female	72 in	6 ft	1.8 m	Shielded
Amphenol Custom Cable Q-2P0710003108I	Female	SMA Jack	RG-174	50 Ohms	Right Angle SMA Jack	50 Ohms	SMA to SMA	Free Hanging (In-Line)	50 Ohms	1 GHz	Bulkhead - Front Side Nut	Panel Mount	Black	Female	108 in	9 ft	2.7 m	Shielded
Amphenol Custom Cable Q-2P0710005003I	Female	SMA Jack	RG-316	50 Ohms	Right Angle SMA Jack	50 Ohms	SMA to SMA	Free Hanging (In-Line)	50 Ohms	3 GHz	Bulkhead - Front Side Nut	Panel Mount	Copper	Female	3 in		76.2 mm	Shielded
Amphenol Custom Cable Q-2P07100052.5M	Female	SMA Jack	RG-316	50 Ohms	Right Angle SMA Jack	50 Ohms	SMA to SMA	Free Hanging (In-Line)	50 Ohms	3 GHz	Bulkhead - Front Side Nut	Panel Mount	Copper	Female	98.4 in	8.2 '	2.5 m	Shielded
Amphenol Custom Cable Q-2P0710005024I	Female	SMA Jack	RG-316	50 Ohms	Right Angle SMA Jack	50 Ohms	SMA to SMA	Free Hanging (In-Line)	50 Ohms	3 GHz	Bulkhead - Front Side Nut	Panel Mount	Copper	Female	24 "		609.6 mm	Shielded

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 91.82
		25	$ 90.03
		50	$ 88.23
		100	$ 86.43
		250	$ 84.64

Description

General part information

Q-2P0710 Series

Cable Assembly Coaxial SMA to SMA RG-316 29.53" (750.00mm)

Documents

Technical documentation and resources

No documents available
