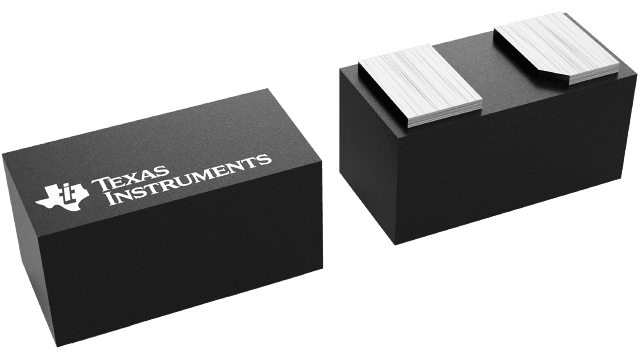

TPD1E01B04DPLR

Active

Texas Instruments

0.18-PF, &PLUSMN;3.6-V, &PLUSMN;15-KV ESD PROTECTION DIODE IN 0402 &AMP; 0201 PACKAGES FOR USB-C 2-X2SON -40 TO 125

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsESD and Surge Protection for USB Interfaces (Rev. B)USB Type-C™: Will your ESD solution protect the port?+9

TPD1E01B04DPLR

Active

Texas Instruments

0.18-PF, &PLUSMN;3.6-V, &PLUSMN;15-KV ESD PROTECTION DIODE IN 0402 &AMP; 0201 PACKAGES FOR USB-C 2-X2SON -40 TO 125

Deep-Dive with AI

DocumentsESD and Surge Protection for USB Interfaces (Rev. B)USB Type-C™: Will your ESD solution protect the port?+9

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TPD1E01B04DPLR	TPD1E01B04 Series

Applications	HDMI	HDMI, General Purpose
Bidirectional Channels	1	1
Capacitance @ Frequency	0.18 pF	0.18 - 0.2 pF
Current - Peak Pulse (10/1000µs)	2.5 A	2.5 A
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	0201	0201, 0402
Package / Case	0603 Metric	0603 Metric, 1006 Metric
Power - Peak Pulse	27 W	27 W
Power Line Protection	False	False
Supplier Device Package	2-X2SON	2-X2SON, 2-X1SON (1x.60)
Supplier Device Package [x]	0.6	0.6
Supplier Device Package [y]	0.3	0.3
Type	Zener	Zener
Voltage - Breakdown (Min) [Min]	6.4 V	6.4 V
Voltage - Clamping (Max) @ Ipp	15 V	15 V
Voltage - Clamping (Max) @ Ipp	-	15 V
Voltage - Reverse Standoff (Typ)	3.6 V	3.6 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow Electronics	N/A	1	$ 0.17
		1	$ 0.20
		10	$ 0.12
		10	$ 0.13
		25	$ 0.12
		100	$ 0.09
		100	$ 0.06
		250	$ 0.06
		1000	$ 0.05
		2500	$ 0.04
		15000	$ 0.03
		45000	$ 0.03
		90000	$ 0.03
DigiKey	N/A	1	$ 0.17
		10	$ 0.12
		100	$ 0.06
		500	$ 0.05
		1000	$ 0.05
		2000	$ 0.04
		5000	$ 0.04
		15000	$ 0.04
		30000	$ 0.04
		45000	$ 0.03
		75000	$ 0.03
		105000	$ 0.03
		150000	$ 0.03
Digikey	Cut Tape (CT)	1	$ 0.31
		10	$ 0.21
		100	$ 0.10
		500	$ 0.09
		1000	$ 0.06
		2000	$ 0.05
		5000	$ 0.05
	Digi-Reel®	1	$ 0.31
		10	$ 0.21
		100	$ 0.10
		500	$ 0.09
		1000	$ 0.06
		2000	$ 0.05
		5000	$ 0.05
	Tape & Reel (TR)	15000	$ 0.04
		30000	$ 0.04
		75000	$ 0.03
		105000	$ 0.03
Mouser Electronics	N/A	1	$ 0.20
		1	$ 0.17
		10	$ 0.13
		10	$ 0.12
		25	$ 0.12
		100	$ 0.06
		100	$ 0.09
		250	$ 0.06
		1000	$ 0.05
		2500	$ 0.04
		15000	$ 0.03
		45000	$ 0.03
		90000	$ 0.03
Texas Instruments	LARGE T&R	1	$ 0.07
		100	$ 0.05
		250	$ 0.04
		1000	$ 0.02
Verical	N/A	94	$ 0.06
Win Source Electronics	N/A	10	$ 0.10
		50	$ 0.10
		100	$ 0.06
		200	$ 0.06
		500	$ 0.06
		740	$ 0.07
		740	$ 0.07
		1790	$ 0.06
		1790	$ 0.06
		2000	$ 0.06
		2780	$ 0.05
		2780	$ 0.05
		3775	$ 0.05
		3775	$ 0.05
		4905	$ 0.05
		4905	$ 0.05
		6525	$ 0.05
		6525	$ 0.05

TPD1E01B04 Series

0.18-pF, ±3.6-V, ±15-kV ESD protection diode in 0402 & 0201 packages for USB-C

Part	Mounting Type	Supplier Device Package [y]	Supplier Device Package [x]	Supplier Device Package	Voltage - Reverse Standoff (Typ)	Operating Temperature [Min]	Operating Temperature [Max]	Type	Package / Case	Package / Case	Power - Peak Pulse	Applications	Current - Peak Pulse (10/1000µs)	Voltage - Clamping (Max) @ Ipp	Bidirectional Channels	Voltage - Breakdown (Min) [Min]	Capacitance @ Frequency	Voltage - Clamping (Max) @ Ipp [Max]
Texas Instruments TPD1E01B04DPLR The TPD1E01B04 is a bidirectional TVS ESD protection diode array for USB Type-C and Thunderbolt 3 circuit protection. The TPD1E01B04 is rated to dissipate ESD strikes at the maximum level specified in the IEC 61000-4-2 international standard (Level 4). This device features a 0.18 to 0.20-pF (typical) IO capacitance making it ideal for protecting high-speed interfaces up to 20 Gbps such as USB 3.1 Gen2 and Thunderbolt 3. The low dynamic resistance and low clamping voltage ensure system level protection against transient events. The TPD1E01B04 is offered in the industry standard 0201 (DPL) package and 0402 (DPY) packages. The TPD1E01B04 is a bidirectional TVS ESD protection diode array for USB Type-C and Thunderbolt 3 circuit protection. The TPD1E01B04 is rated to dissipate ESD strikes at the maximum level specified in the IEC 61000-4-2 international standard (Level 4). This device features a 0.18 to 0.20-pF (typical) IO capacitance making it ideal for protecting high-speed interfaces up to 20 Gbps such as USB 3.1 Gen2 and Thunderbolt 3. The low dynamic resistance and low clamping voltage ensure system level protection against transient events. The TPD1E01B04 is offered in the industry standard 0201 (DPL) package and 0402 (DPY) packages.	Surface Mount	0.3	0.6	2-X2SON	3.6 V	-40 °C	125 °C	Zener	0201	0603 Metric	27 W	HDMI	2.5 A	15 V	1	6.4 V	0.18 pF
Texas Instruments TPD1E01B04DPLT The TPD1E01B04 is a bidirectional TVS ESD protection diode array for USB Type-C and Thunderbolt 3 circuit protection. The TPD1E01B04 is rated to dissipate ESD strikes at the maximum level specified in the IEC 61000-4-2 international standard (Level 4). This device features a 0.18 to 0.20-pF (typical) IO capacitance making it ideal for protecting high-speed interfaces up to 20 Gbps such as USB 3.1 Gen2 and Thunderbolt 3. The low dynamic resistance and low clamping voltage ensure system level protection against transient events. The TPD1E01B04 is offered in the industry standard 0201 (DPL) package and 0402 (DPY) packages. The TPD1E01B04 is a bidirectional TVS ESD protection diode array for USB Type-C and Thunderbolt 3 circuit protection. The TPD1E01B04 is rated to dissipate ESD strikes at the maximum level specified in the IEC 61000-4-2 international standard (Level 4). This device features a 0.18 to 0.20-pF (typical) IO capacitance making it ideal for protecting high-speed interfaces up to 20 Gbps such as USB 3.1 Gen2 and Thunderbolt 3. The low dynamic resistance and low clamping voltage ensure system level protection against transient events. The TPD1E01B04 is offered in the industry standard 0201 (DPL) package and 0402 (DPY) packages.	Surface Mount	0.3	0.6	2-X2SON	3.6 V	-40 °C	125 °C	Zener	0201	0603 Metric	27 W	HDMI	2.5 A	15 V	1	6.4 V	0.18 pF
Texas Instruments TPD1E01B04DPYT The TPD1E01B04 is a bidirectional TVS ESD protection diode array for USB Type-C and Thunderbolt 3 circuit protection. The TPD1E01B04 is rated to dissipate ESD strikes at the maximum level specified in the IEC 61000-4-2 international standard (Level 4). This device features a 0.18 to 0.20-pF (typical) IO capacitance making it ideal for protecting high-speed interfaces up to 20 Gbps such as USB 3.1 Gen2 and Thunderbolt 3. The low dynamic resistance and low clamping voltage ensure system level protection against transient events. The TPD1E01B04 is offered in the industry standard 0201 (DPL) package and 0402 (DPY) packages. The TPD1E01B04 is a bidirectional TVS ESD protection diode array for USB Type-C and Thunderbolt 3 circuit protection. The TPD1E01B04 is rated to dissipate ESD strikes at the maximum level specified in the IEC 61000-4-2 international standard (Level 4). This device features a 0.18 to 0.20-pF (typical) IO capacitance making it ideal for protecting high-speed interfaces up to 20 Gbps such as USB 3.1 Gen2 and Thunderbolt 3. The low dynamic resistance and low clamping voltage ensure system level protection against transient events. The TPD1E01B04 is offered in the industry standard 0201 (DPL) package and 0402 (DPY) packages.	Surface Mount			2-X1SON (1x.60)	3.6 V	-40 °C	125 °C	Zener	0402	1006 Metric	27 W	General Purpose	2.5 A		1	6.4 V	0.2 pF	15 V

Description

General part information

TPD1E01B04 Series

The TPD1E01B04 is a bidirectional TVS ESD protection diode array for USB Type-C and Thunderbolt 3 circuit protection. The TPD1E01B04 is rated to dissipate ESD strikes at the maximum level specified in the IEC 61000-4-2 international standard (Level 4).

This device features a 0.18 to 0.20-pF (typical) IO capacitance making it ideal for protecting high-speed interfaces up to 20 Gbps such as USB 3.1 Gen2 and Thunderbolt 3. The low dynamic resistance and low clamping voltage ensure system level protection against transient events.

The TPD1E01B04 is offered in the industry standard 0201 (DPL) package and 0402 (DPY) packages.

Documents

Technical documentation and resources

TPD1E01B04 1-Channel ESD Protection Diode for USB Type-C and Thunderbolt 3 datasheet (Rev. C)

Data sheet

TPD1E01B04DPLR

Deep-Dive with AI

TPD1E01B04DPLR

Deep-Dive with AI

Technical Specifications

Pricing

TPD1E01B04 Series

Description

TPD1E01B04 Series

Documents

ESD and Surge Protection for USB Interfaces (Rev. B)

USB Type-C™: Will your ESD solution protect the port?

The dangers of deep snap-back ESD circuit-protection diodes

ESD fundamentals, part 4: ESD capacitance

ESD Packaging and Layout Guide (Rev. B)

Generic ESD Evaluation Module User's Guide (Rev. A)

Picking ESD Diodes for Ultra High-Speed Data Lines

System-Level ESD Protection Guide (Rev. D)

TPD1E01B04 1-Channel ESD Protection Diode for USB Type-C and Thunderbolt 3 datasheet (Rev. C)
