EP913S14

Active

Switchcraft Inc.

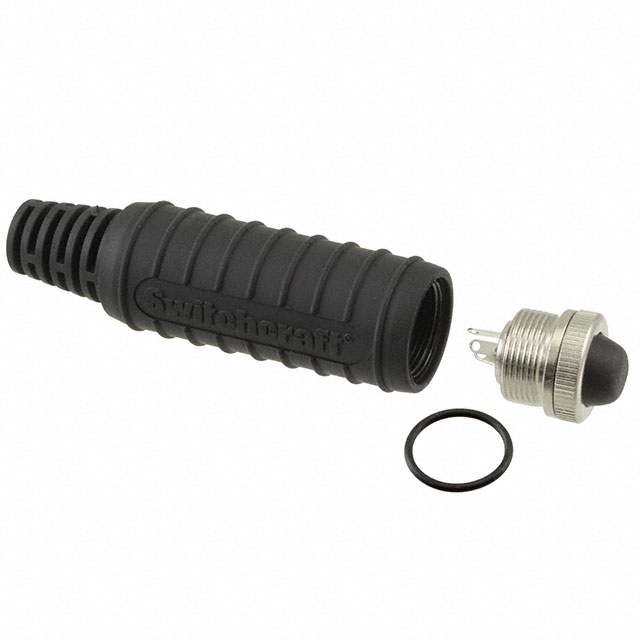

SWITCH PUSH SPDT 0.25A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EP913S14

Active

Switchcraft Inc.

SWITCH PUSH SPDT 0.25A 125V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EP913S14	EP913 Series

Actuator Marking	No Marking	No Marking
Actuator Type	Round, Button	Round, Button
Circuit	SPDT	SPDT, SPDT (MBB)
Color - Actuator/Cap	Black	Black
Current Rating (Amps)	250 mA	250 mA
Electrical Life	20000 Steps	20000 Steps
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Mechanical Life	20000 Cycles	20000 Cycles
Mounting Type	Free Hanging	Free Hanging
Switch Function	Off-Mom, On-Mom	Off-Mom, On-Mom
Termination Style	Solder Lug	Solder Lug
Type	Standard	Standard
Voltage Rating - AC	125 V	125 V
Voltage Rating - DC	48 V	48 V

EP913 Series

SWITCH PUSH SPDT 0.25A 125V

Part	Actuator Type	Actuator Marking	Termination Style	Voltage Rating - DC	Mounting Type	Color - Actuator/Cap	Current Rating (Amps)	Voltage Rating - AC	Circuit	Electrical Life	Type	Mechanical Life	Switch Function	Ingress Protection
Switchcraft Inc. EP913S17	Button, Round	No Marking	Solder Lug	48 V	Free Hanging	Black	250 mA	125 V	SPDT	20000 Steps	Standard	20000 Cycles	Off-Mom, On-Mom	IP67 - Dust Tight, Waterproof
Switchcraft Inc. EP913DS23	Button, Round	No Marking	Solder Lug	48 V	Free Hanging	Black	250 mA	125 V	SPDT (MBB)	20000 Steps	Standard	20000 Cycles	Off-Mom, On-Mom	IP67 - Dust Tight, Waterproof
Switchcraft Inc. EP913S23	Button, Round	No Marking	Solder Lug	48 V	Free Hanging	Black	250 mA	125 V	SPDT	20000 Steps	Standard	20000 Cycles	Off-Mom, On-Mom	IP67 - Dust Tight, Waterproof
Switchcraft Inc. EP913S14	Button, Round	No Marking	Solder Lug	48 V	Free Hanging	Black	250 mA	125 V	SPDT	20000 Steps	Standard	20000 Cycles	Off-Mom, On-Mom	IP67 - Dust Tight, Waterproof
Switchcraft Inc. EP913DS20	Button, Round	No Marking	Solder Lug	48 V	Free Hanging	Black	250 mA	125 V	SPDT (MBB)	20000 Steps	Standard	20000 Cycles	Off-Mom, On-Mom	IP67 - Dust Tight, Waterproof
Switchcraft Inc. EP913S20	Button, Round	No Marking	Solder Lug	48 V	Free Hanging	Black	250 mA	125 V	SPDT	20000 Steps	Standard	20000 Cycles	Off-Mom, On-Mom	IP67 - Dust Tight, Waterproof
Switchcraft Inc. EP913DS14	Button, Round	No Marking	Solder Lug	48 V	Free Hanging	Black	250 mA	125 V	SPDT (MBB)	20000 Steps	Standard	20000 Cycles	Off-Mom, On-Mom	IP67 - Dust Tight, Waterproof
Switchcraft Inc. EP913DS17	Button, Round	No Marking	Solder Lug	48 V	Free Hanging	Black	250 mA	125 V	SPDT (MBB)	20000 Steps	Standard	20000 Cycles	Off-Mom, On-Mom	IP67 - Dust Tight, Waterproof

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 18.57
		10	$ 16.86
		25	$ 16.10
		50	$ 15.25
		100	$ 14.68
		300	$ 13.73
		500	$ 13.01

Description

General part information

EP913 Series

Pushbutton Switch SPDT Standard Free Hanging
