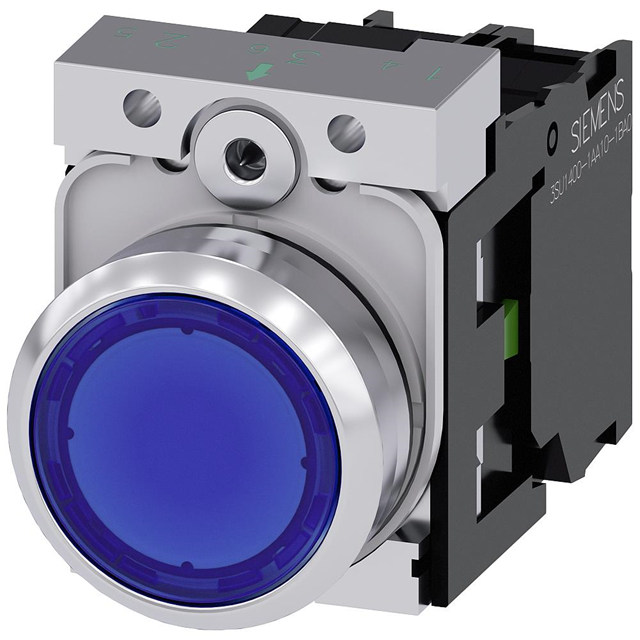

PUSHBUTTON SWITCHES ILLUMINATED PUSHBUTTON, MOM, BLU, FLUSH
Deep-Dive with AI
Search across all available documentation for this part.
3SU11520AB501BA0
ActiveSiemens
PUSHBUTTON SWITCHES ILLUMINATED PUSHBUTTON, MOM, BLU, FLUSH
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 3SU11520AB501BA0 |
|---|---|
| Actuator Type | Round, Button |
| Circuit | SPST-NO |
| Color - Actuator/Cap | Blue |
| Current Rating (Amps) | 10 A |
| Electrical Life | 10000000 Cycles |
| Illumination Type, Color | LED, Blue |
| Illumination Voltage (Nominal) | 24 VAC/DC |
| Ingress Protection | IP69K, IP67, IP66 |
| Mechanical Life | 3000000 Cycles |
| Mounting Type | Panel Mount, Front |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Panel Cutout Dimensions [diameter] | 22.3 mm |
| Switch Function | Off-Mom |
| Termination Style | Screw Terminal |
| Type | Illuminated, Standard |
| Voltage Rating - AC | 500 V |
| Voltage Rating - DC | 500 V |
3SU1152 Series
| Part | Electrical Life | Panel Cutout Dimensions [diameter] | Voltage Rating - AC | Illumination Voltage (Nominal) | Type | Mechanical Life | Operating Temperature [Max] | Operating Temperature [Min] | Circuit | Termination Style | Current Rating (Amps) | Switch Function | Mounting Type | Voltage Rating - DC | Ingress Protection | Color - Actuator/Cap | Actuator Type | Illumination Type, Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Siemens | 10000000 Cycles | 22.3 mm | 500 V | 24 VAC/DC | Illuminated Standard | 3000000 Cycles | 70 °C | -25 °C | DPST-NO/NC | Spring Terminal | 10 A | Off-Mom On-Mom | Panel Mount Front | 500 V | IP66 IP67 IP69K | Blue | Button Round | Blue LED |
Siemens | 10000000 Cycles | 22.3 mm | 500 V | 24 VAC/DC | Illuminated Standard | 3000000 Cycles | 70 °C | -25 °C | SPST-NO | Screw Terminal | 10 A | Off-Mom | Panel Mount Front | 500 V | IP66 IP67 IP69K | Clear | Button Round | LED White |
Siemens | 10000000 Cycles | 22.3 mm | 500 V | 24 VAC/DC | Illuminated Standard | 3000000 Cycles | 70 °C | -25 °C | DPST-NO/NC | Screw Terminal | 10 A | Off-Mom On-Mom | Panel Mount Front | 500 V | IP66 IP67 IP69K | Yellow | Button Round | LED Yellow |
Siemens | 10000000 Cycles | 22.3 mm | 500 V | 24 VAC/DC | Illuminated Standard | 3000000 Cycles | 70 °C | -25 °C | DPST-NO/NC | Spring Terminal | 10 A | Off-Mom On-Mom | Panel Mount Front | 500 V | IP66 IP67 IP69K | Red | Button Round | LED Red |
Siemens | 10000000 Cycles | 22.3 mm | 500 V | 24 VAC/DC | Illuminated Standard | 3000000 Cycles | 70 °C | -25 °C | SPST-NO | Screw Terminal | 10 A | Off-Mom | Panel Mount Front | 500 V | IP66 IP67 IP69K | Amber | Button Round | Amber LED |
Siemens | 10000000 Cycles | 22.3 mm | 500 V | 24 VAC/DC | Illuminated Standard | 3000000 Cycles | 70 °C | -25 °C | DPST-NO/NC | Screw Terminal | 10 A | Off-Mom On-Mom | Panel Mount Front | 500 V | IP66 IP67 IP69K | Clear | Button Round | LED White |
Siemens | 10000000 Cycles | 22.3 mm | 500 V | 24 VAC/DC | Illuminated Standard | 3000000 Cycles | 70 °C | -25 °C | SPST-NO | Screw Terminal | 10 A | Off-Mom | Panel Mount Front | 500 V | IP66 IP67 IP69K | Blue | Button Round | Blue LED |
Siemens | 10000000 Cycles | 22.3 mm | 500 V | 24 VAC/DC | Illuminated Standard | 3000000 Cycles | 70 °C | -25 °C | SPST-NO | Screw Terminal | 10 A | Off-Mom | Panel Mount Front | 500 V | IP66 IP67 IP69K | Yellow | Button Round | LED Yellow |
Siemens | 10000000 Cycles | 22.3 mm | 500 V | 24 VAC/DC | Illuminated Standard | 3000000 Cycles | 70 °C | -25 °C | DPST-NO/NC | Screw Terminal | 10 A | Off-Mom On-Mom | Panel Mount Front | 500 V | IP66 IP67 IP69K | Blue | Button Round | Blue LED |
Siemens | 10000000 Cycles | 22.3 mm | 500 V | 24 VAC/DC | Illuminated Standard | 3000000 Cycles | 70 °C | -25 °C | SPST-NC | Spring Terminal | 10 A | On-Mom | Panel Mount Front | 500 V | IP66 IP67 IP69K | Red | Button Round | LED Red |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 98.30 | |
Description
General part information
3SU1152 Series
Pushbutton Switch SPST-NO Standard, Illuminated Panel Mount, Front
