1-2324245-6

Active

TE Connectivity AMP Connectors

ASSY,HDR,VERT,GWT,BOSSED,DUAL ROW, EP2.5

1-2324245-6

Active

TE Connectivity AMP Connectors

ASSY,HDR,VERT,GWT,BOSSED,DUAL ROW, EP2.5

Description Specifications Series Pricing CAD Documents

Description

General part information

2324245 Series

PCB Mount Header, Vertical, Wire-to-Board, 16 Position, 2.5 mm [.098 in] Centerline, Fully Shrouded, Tin (Sn), Economy Power 2.5

Technical Specifications

Parameters and characteristics for this part

Specification	1-2324245-6

Connector Type	Header
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	80 µin
Contact Finish Thickness - Post	80 µin
Contact Length - Post	0.134 in
Contact Material	Copper Alloy
Contact Shape	Circular
Contact Type	Male Pin
Fastening Type	Latch Holder
Features	Glow Wire Compliant
Insulation Color	Natural
Insulation Height	0.386 in
Insulation Material	Resin
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	16
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-55 °C
Pitch - Mating	0.098 in
Row Spacing - Mating	0.098 in
Shrouding	Shrouded - 4 Wall
Style	Cable/Wire, Board
Termination	Kinked Pin, Solder
Voltage Rating	250 V

2324245 Series

Part	Contact Length - Post	Shrouding	Style	Operating Temperature (Min)	Operating Temperature (Max)	Contact Finish - Post	Termination	Contact Material	Number of Rows	Number of Positions Loaded	Contact Shape	Insulation Height	Features	Contact Finish Thickness - Mating	Number of Positions	Contact Type	Insulation Color	Pitch - Mating	Fastening Type	Insulation Material	Material Flammability Rating	Row Spacing - Mating	Connector Type	Voltage Rating	Contact Finish - Mating	Mounting Type	Contact Finish Thickness - Post	Current Rating
TE Connectivity AMP Connectors 1-2324245-6	0.134 in	Shrouded - 4 Wall	Board Cable/Wire	-55 °C	105 °C	Tin	Kinked Pin Solder	Copper Alloy	2	All	Circular	0.386 in	Glow Wire Compliant	80 µin	16	Male Pin	Natural	0.098 in	Latch Holder	Resin	UL94 V-0	0.098 in	Header	250 V	Tin	Through Hole	80 µin
TE Connectivity AMP Connectors 1-2324245-2	0.134 in	Shrouded - 4 Wall	Board Cable/Wire	-55 °C	105 °C	Tin	Kinked Pin Solder	Copper Alloy	2	All	Circular	0.386 in	Glow Wire Compliant	80 µin	12	Male Pin	Natural	0.098 in	Latch Holder	Resin	UL94 V-0	0.098 in	Header	250 V	Tin	Through Hole	80 µin	4.2 A

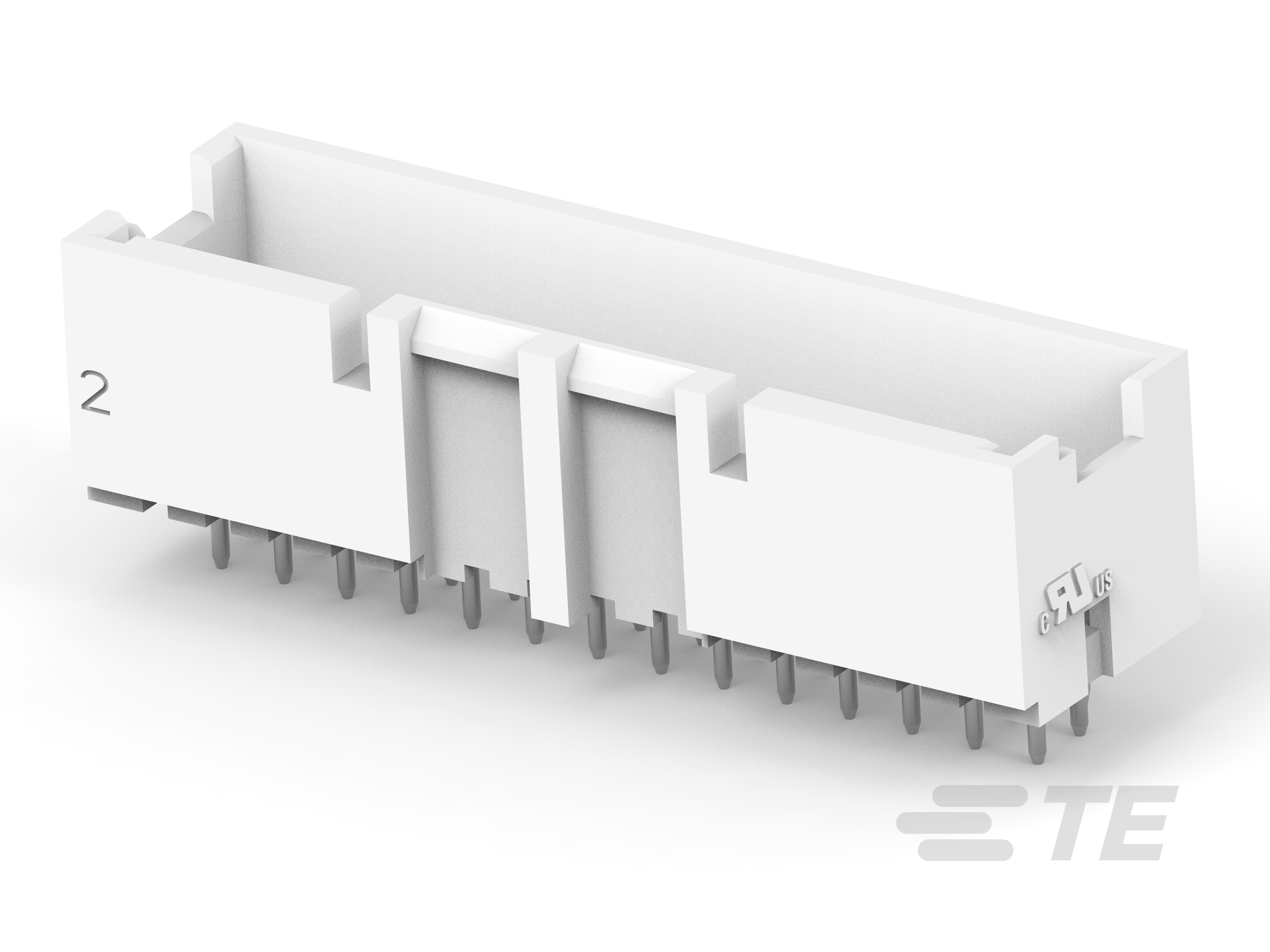

TE Connectivity AMP Connectors 2-2324245-8	0.134 in	Shrouded - 4 Wall	Board Cable/Wire	-55 °C	105 °C	Tin	Kinked Pin Solder	Copper Alloy	2	All	Circular	0.386 in	Glow Wire Compliant	80 µin	28	Male Pin	Natural	0.098 in	Latch Holder	Resin	UL94 V-0	0.098 in	Header	250 V	Tin	Through Hole	80 µin	4.2 A
TE Connectivity AMP Connectors 1-2324245-8	0.134 in	Shrouded - 4 Wall	Board Cable/Wire	-55 °C	105 °C	Tin	Kinked Pin Solder	Copper Alloy	2	All	Circular	0.386 in	Glow Wire Compliant	80 µin	18	Male Pin	Natural	0.098 in	Latch Holder	Resin	UL94 V-0	0.098 in	Header	250 V	Tin	Through Hole	80 µin	4.2 A
TE Connectivity AMP Connectors 1-2324245-4	0.134 in	Shrouded - 4 Wall	Board Cable/Wire	-55 °C	105 °C	Tin	Kinked Pin Solder	Copper Alloy	2	All	Circular	0.386 in	Glow Wire Compliant	80 µin	14	Male Pin	Natural	0.098 in	Latch Holder	Resin	UL94 V-0	0.098 in	Header	250 V	Tin	Through Hole	80 µin	4.2 A
TE Connectivity AMP Connectors 3-2324245-4	0.134 in	Shrouded - 4 Wall	Board Cable/Wire	-55 °C	105 °C	Tin	Solder	Brass	2	All	Circular	0.386 in	Glow Wire Compliant		34	Male Pin	Natural	0.098 in	Latch Holder	Resin	UL94 V-0	0.098 in	Header	250 V	Tin	Through Hole

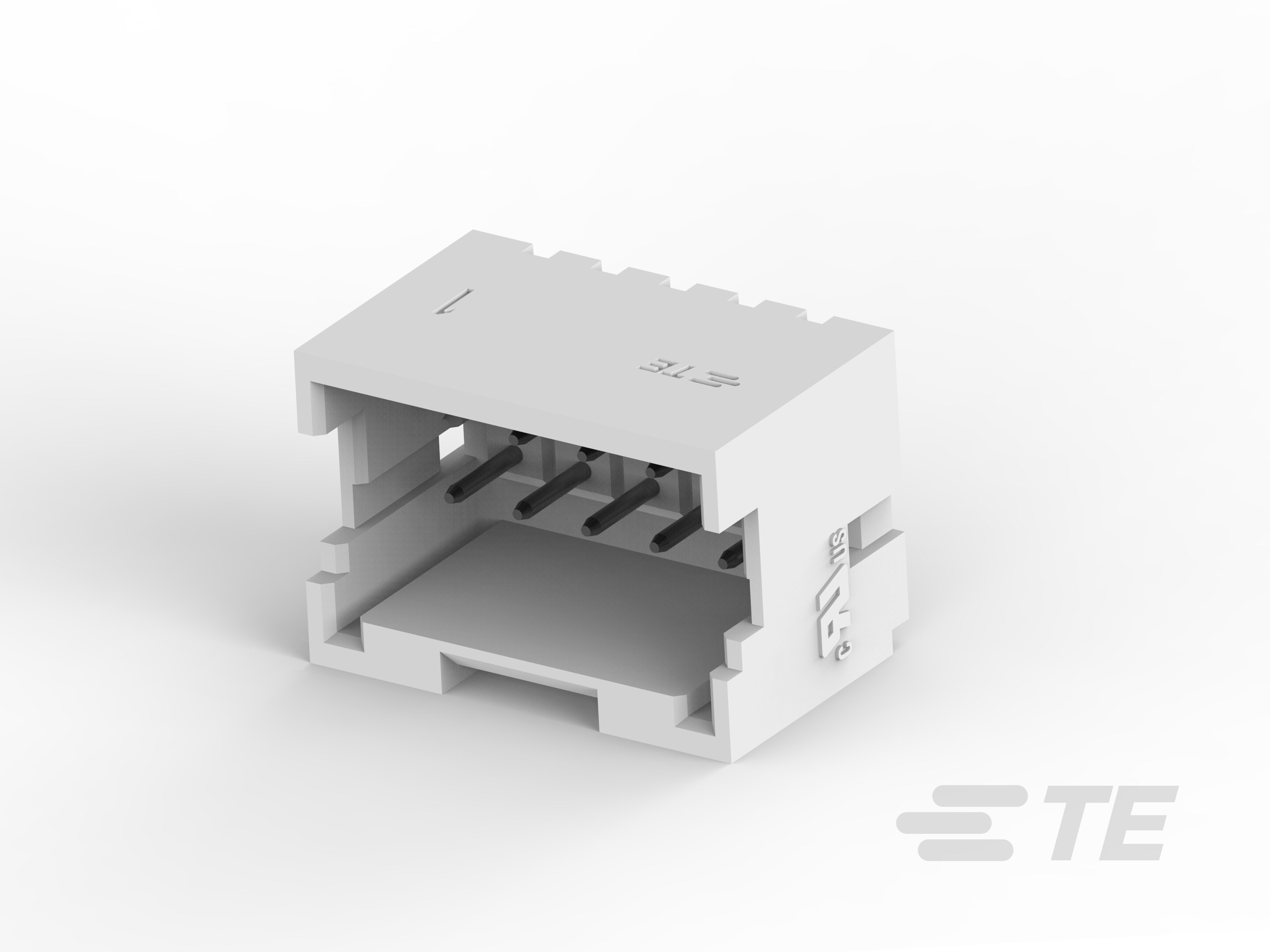

TE Connectivity AMP Connectors 1-2324245-0	0.134 in	Shrouded - 4 Wall	Board Cable/Wire	-55 °C	105 °C	Tin	Kinked Pin Solder	Copper Alloy	2	All	Circular	0.386 in	Glow Wire Compliant	80 µin	10	Male Pin	Natural	0.098 in	Latch Holder	Resin	UL94 V-0	0.098 in	Header	250 V	Tin	Through Hole	80 µin	4.2 A
TE Connectivity AMP Connectors 2-2324245-4	0.134 in	Shrouded - 4 Wall	Board Cable/Wire	-55 °C	105 °C	Tin	Kinked Pin Solder	Copper Alloy	2	All	Circular	0.386 in	Glow Wire Compliant	80 µin	24 pos	Male Pin	Natural	0.098 in	Latch Holder	Resin	UL94 V-0	0.098 in	Header	250 V	Tin	Through Hole	80 µin	4.2 A
