A00-108-220-450

Active

EDAC Inc.

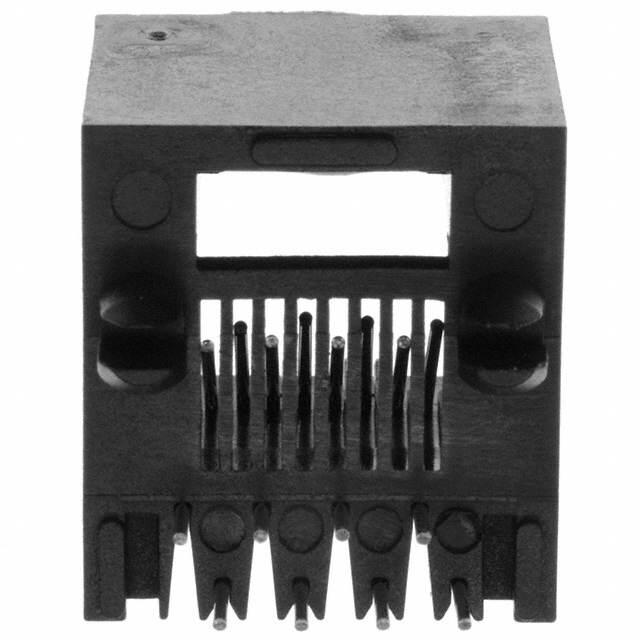

CONN MOD JACK 8P8C VERT UNSHLD

Search across all available documentation for this part.

Active

EDAC Inc.

CONN MOD JACK 8P8C VERT UNSHLD

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Jack Modular Connector 8p8c (RJ45, Ethernet) Vertical Unshielded Cat5

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	A00-108-220-450	A00-108 Series

Connector Type	Jack	Jack
Contact Finish	Gold	Gold
Contact Finish Thickness	Flash	Flash
Contact Finish Thickness	-	15 µin
Contact Finish Thickness	-	0.38 µm
Contact Material	Phosphor Bronze	Phosphor Bronze
Housing Material	Polyester, Polybutylene Terephthalate (PBT)	Polyester, Polybutylene Terephthalate (PBT), Glass Filled
LED Color	Does Not Contain LED	Does Not Contain LED
Mounting Type	Through Hole	Through Hole
Number of Ports	1	1
Number of Positions/Contacts	8p8c (RJ45, Ethernet)	8p8c (RJ45, Ethernet)
Number of Rows	1	1
Orientation	Vertical	Vertical
Orientation	-	90 °
Ratings	Cat5	Cat5
Shielding	Unshielded	Shielded, Unshielded
Tab Direction	User Selectable	Down, User Selectable
Termination	Solder	Solder

CONN MOD JACK 8P8C R/A SHIELDED

Part	Number of Rows	Number of Positions/Contacts	Contact Finish	Contact Material	Termination	Contact Finish Thickness	Contact Finish Thickness	Number of Ports	Connector Type	LED Color	Shielding	Mounting Type	Ratings	Tab Direction	Housing Material	Orientation	Contact Finish Thickness	Orientation
EDAC Inc. A00-108-362-450	1	8p8c (RJ45, Ethernet)	Gold	Phosphor Bronze	Solder	15 µin	0.38 µm	1	Jack	Does Not Contain LED	Shielded	Through Hole	Cat5	Down	Polybutylene Terephthalate (PBT), Polyester	90 °
EDAC Inc. A00-108-220-450	1	8p8c (RJ45, Ethernet)	Gold	Phosphor Bronze	Solder			1	Jack	Does Not Contain LED	Unshielded	Through Hole	Cat5	User Selectable	Polybutylene Terephthalate (PBT), Polyester		Flash	Vertical
EDAC Inc. A00-108-260-450	1	8p8c (RJ45, Ethernet)	Gold	Phosphor Bronze	Solder			1	Jack	Does Not Contain LED	Unshielded	Through Hole	Cat5	Down	Glass Filled, Polybutylene Terephthalate (PBT), Polyester	90 °	Flash
EDAC Inc. A00-108-222-450	1	8p8c (RJ45, Ethernet)	Gold	Phosphor Bronze	Solder			1	Jack	Does Not Contain LED	Shielded	Through Hole	Cat5	User Selectable	Polybutylene Terephthalate (PBT), Polyester		Flash	Vertical
