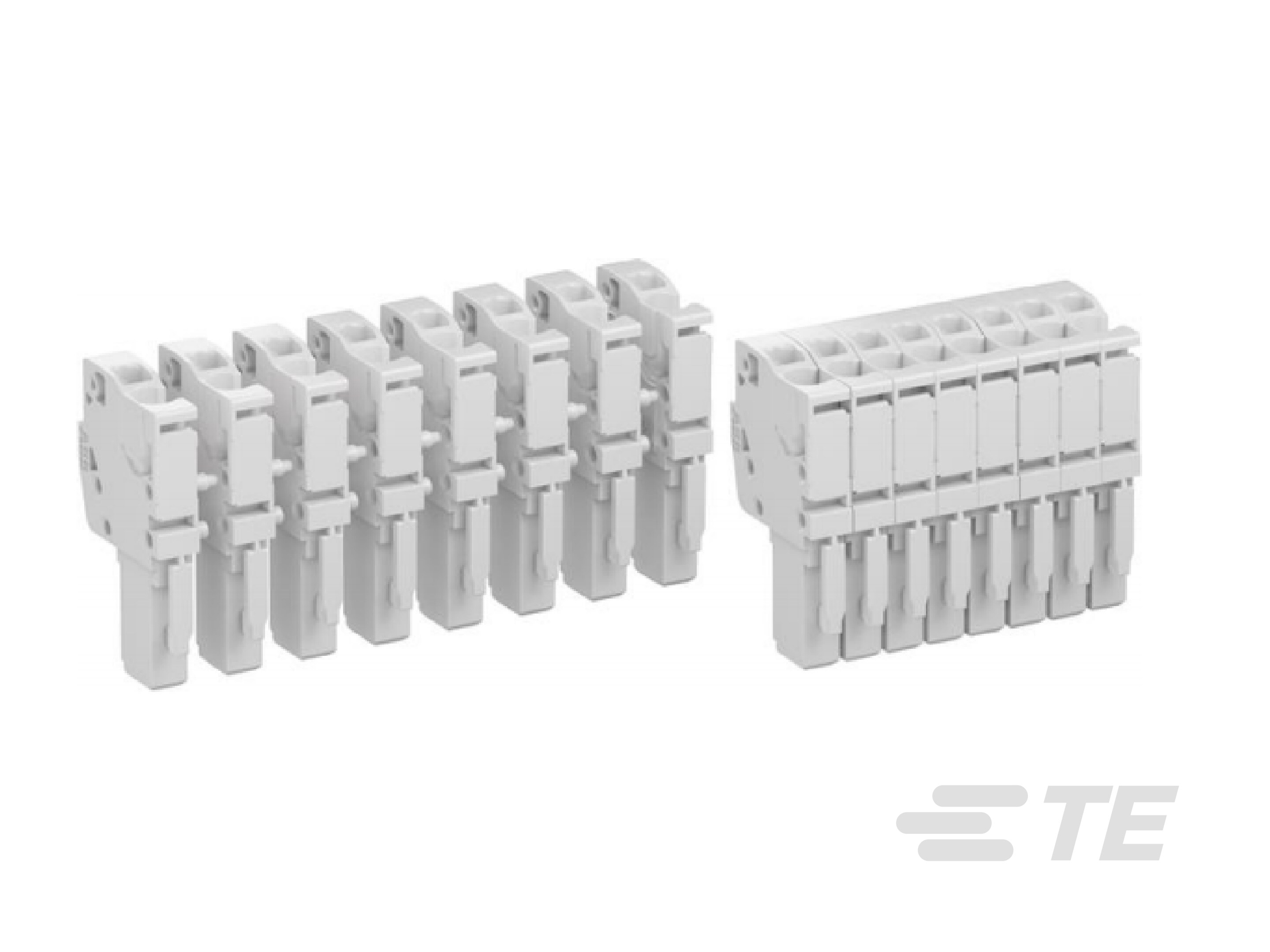

Specification	1SNK805725R0000

Color	Gray
Current - IEC	24 A
Current - UL	22 A
Mounting Type	Free Hanging (In-Line)
Number of Levels	1
Number of Positions	11
Operating Temperature (Max)	110 °C
Operating Temperature (Min)	-55 °C
Plug Wire Entry Angle	180 °
Positions Per Level	11
Termination Style	Tension Clamp, Screwless - Spring Cage
Type	Female Sockets, Plug
Voltage - IEC	1000 V
Voltage - UL	600 V
Wire Gauge or Range - AWG (Max)	25.5 AWG
Wire Gauge or Range - AWG (Min)	12 AWG
Wire Gauge or Range - mm² (Maximum)	4 mm²
Wire Gauge or Range - mm² (Minimum)	0.2 mm²

ENTRELEC SNK Series

...

Part	Number of Positions	Current - UL	Wire Gauge or Range - mm² (Maximum)	Wire Gauge or Range - mm² (Minimum)	Type	Number of Levels	Current - IEC	Terminal Width	Voltage - UL	Disconnect Type	Wire Gauge or Range - AWG (Max)	Wire Gauge or Range - AWG (Min)	Voltage - IEC	Termination Style	Color	Material - Insulation	Stripping Length	Material Flammability Rating	Features	Fuse Type	Wire Gauge or Range - AWG	Wire Gauge or Range - MCM	Plug Wire Entry Angle	Positions Per Level	Positions Per Level (Input)	Positions Per Level (Mate)	Number of Levels (Mate)	Number of Levels (Input)	Mounting Type	Number of Positions	Number of Positions (Input)	Number of Positions (Mate)
TE Connectivity AMP Connectors 1SNK508419R0000	2	18 A	4 mm²	0.2 mm²	Disconnect	1	18 A	8 mm	300 V	Lever Switch	24 AWG	10 AWG	630 V	Screw	Blue Gray
TE Connectivity AMP Connectors 1SNK705031R0000	3	20 A	4 mm²	0.2 mm²	Feed Through	1	24 A	5.2 mm	600 V		25.5 AWG	12 AWG	1000 V	Push In Spring	Orange	Nylon PA Polyamide	11 mm	UL94 V-0
TE Connectivity AMP Connectors 1SNK508412R0000	2	10 A	4 mm²	0.2 mm²	Disconnect	1	6.3 A	8 mm	300 V	Fuse Lever	24 AWG	10 AWG	630 V	Screw	Gray	Nylon PA Polyamide	11 mm	UL94 V-0	LED Indicator	5mm x 20mm 5mm x 25mm
TE Connectivity AMP Connectors 1SNK531060R0000	4	310 A	185 mm²	35 mm²	Feed Through	1	309 A	31 mm	1000 V				1000 V	Screw	Yellow						2 AWG	350 MCM
TE Connectivity AMP Connectors 1SNK805747R0000		20 A	4 mm²	0.2 mm²	Female Sockets Plug		24 A		600 V		25.5 AWG	12 AWG	500 V	Screwless - Spring Cage Tension Clamp	Blue								180 °	Input Mate	2	1	1	2	Free Hanging (In-Line)	1 (Mate) 2 (Input)	2	1
TE Connectivity AMP Connectors 1SNK506068R0000	4	30 A	6 mm²	0.2 mm²	Feed Through	1	32 A	6 mm	600 V		24 AWG	10 AWG	800 V	Screw	Yellow
TE Connectivity AMP Connectors 1SNK710065R0000	2	55 A	16 mm²	0.5 mm²	Feed Through	1	57 A	12 mm	1000 V		20 AWG	6 AWG		Push In Spring	Blue Gray
TE Connectivity AMP Connectors 1SNA163315R2600
TE Connectivity AMP Connectors 1SNK531020R0000	4	310 A	185 mm²	35 mm²	Feed Through	1	309 A	31 mm	1000 V				1000 V	Screw	Blue						2 AWG	350 MCM
TE Connectivity AMP Connectors 1SNK516060R0000	2	140 A	50 mm²	1 mm²	Feed Through	1	150 A	16 mm	1000 V		18 AWG	0 AWG	1000 V	Screw	Yellow
