General part information
Jumper Bar, 10 Pole, Gray, ENTRELEC SNK
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
3D models and CAD resources for this part
Technical documentation and resources
| Part | Number of Positions | Current - UL | Wire Gauge or Range - mm² (Maximum) | Wire Gauge or Range - mm² (Minimum) | Type | Number of Levels | Current - IEC | Terminal Width | Voltage - UL | Disconnect Type | Wire Gauge or Range - AWG (Max) | Wire Gauge or Range - AWG (Min) | Voltage - IEC | Termination Style | Color | Material - Insulation | Stripping Length | Material Flammability Rating | Features | Fuse Type | Wire Gauge or Range - AWG | Wire Gauge or Range - MCM | Plug Wire Entry Angle | Positions Per Level | Positions Per Level (Input) | Positions Per Level (Mate) | Number of Levels (Mate) | Number of Levels (Input) | Mounting Type | Number of Positions | Number of Positions (Input) | Number of Positions (Mate) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 2 | 18 A | 4 mm² | 0.2 mm² | Disconnect | 1 | 18 A | 8 mm | 300 V | Lever Switch | 24 AWG | 10 AWG | 630 V | Screw | Blue Gray | |||||||||||||||||
 TE Connectivity AMP Connectors | 3 | 20 A | 4 mm² | 0.2 mm² | Feed Through | 1 | 24 A | 5.2 mm | 600 V | 25.5 AWG | 12 AWG | 1000 V | Push In Spring | Orange | Nylon PA Polyamide | 11 mm | UL94 V-0 | |||||||||||||||
 TE Connectivity AMP Connectors | 2 | 10 A | 4 mm² | 0.2 mm² | Disconnect | 1 | 6.3 A | 8 mm | 300 V | Fuse Lever | 24 AWG | 10 AWG | 630 V | Screw | Gray | Nylon PA Polyamide | 11 mm | UL94 V-0 | LED Indicator | 5mm x 20mm 5mm x 25mm | ||||||||||||

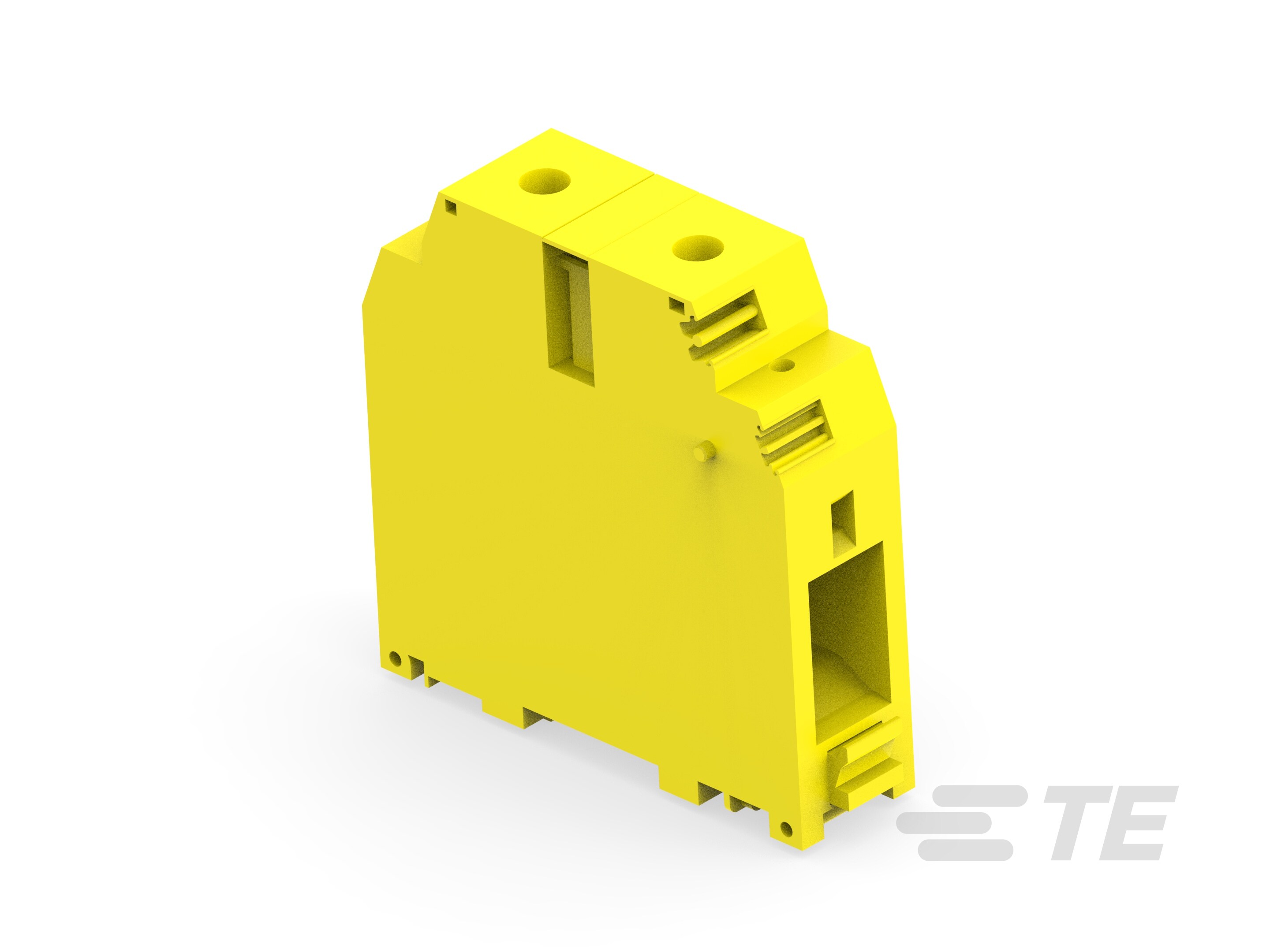

 TE Connectivity AMP Connectors | 4 | 310 A | 185 mm² | 35 mm² | Feed Through | 1 | 309 A | 31 mm | 1000 V | 1000 V | Screw | Yellow | 2 AWG | 350 MCM | ||||||||||||||||||

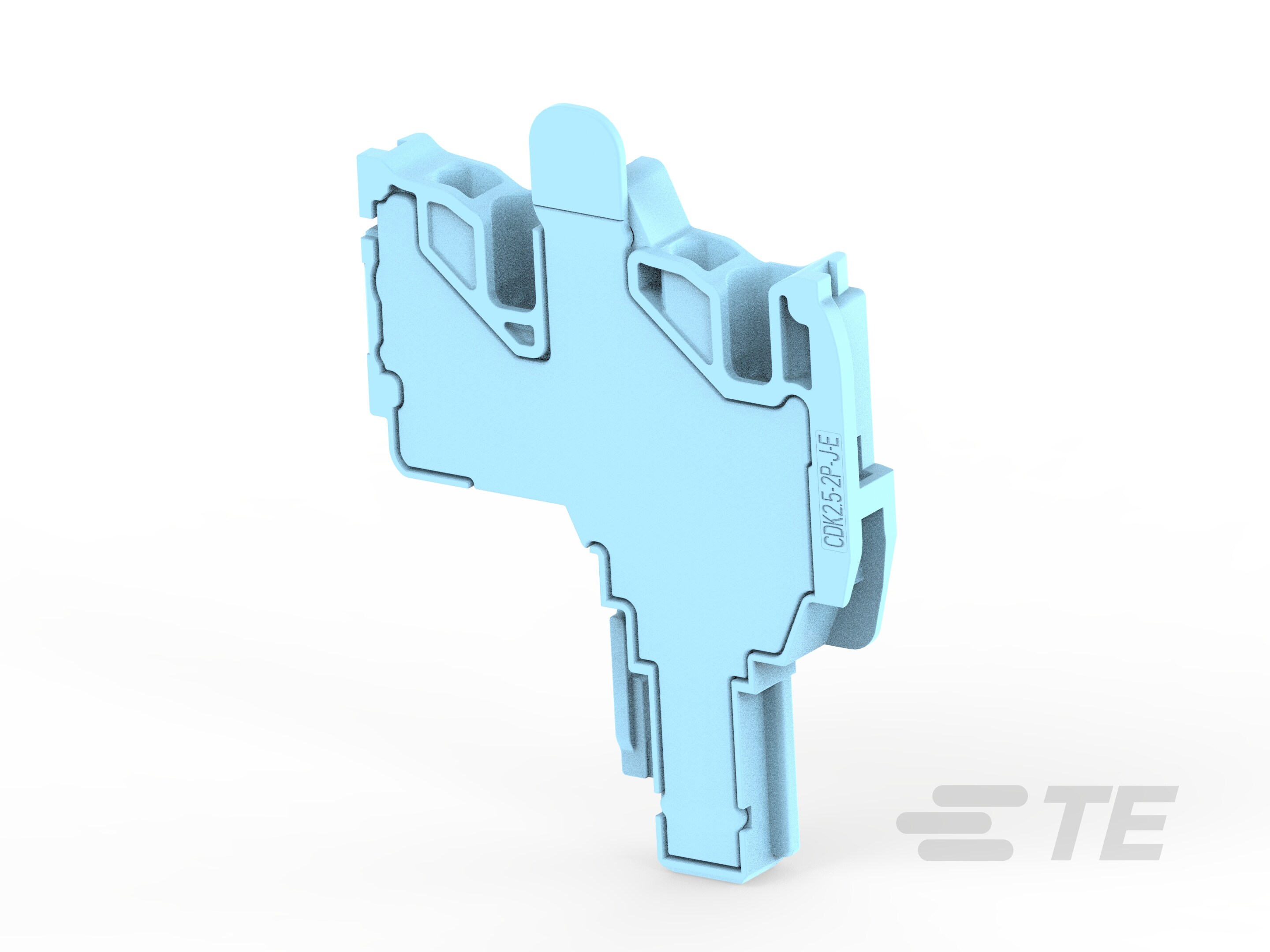

 TE Connectivity AMP Connectors | 20 A | 4 mm² | 0.2 mm² | Female Sockets Plug | 24 A | 600 V | 25.5 AWG | 12 AWG | 500 V | Screwless - Spring Cage Tension Clamp | Blue | 180 ° | Input Mate | 2 | 1 | 1 | 2 | Free Hanging (In-Line) | 1 (Mate) 2 (Input) | 2 | 1 | |||||||||||
 TE Connectivity AMP Connectors | 4 | 30 A | 6 mm² | 0.2 mm² | Feed Through | 1 | 32 A | 6 mm | 600 V | 24 AWG | 10 AWG | 800 V | Screw | Yellow | ||||||||||||||||||
 TE Connectivity AMP Connectors | 2 | 55 A | 16 mm² | 0.5 mm² | Feed Through | 1 | 57 A | 12 mm | 1000 V | 20 AWG | 6 AWG | Push In Spring | Blue Gray | |||||||||||||||||||
TE Connectivity AMP Connectors | ||||||||||||||||||||||||||||||||
 TE Connectivity AMP Connectors | 4 | 310 A | 185 mm² | 35 mm² | Feed Through | 1 | 309 A | 31 mm | 1000 V | 1000 V | Screw | Blue | 2 AWG | 350 MCM | ||||||||||||||||||
 TE Connectivity AMP Connectors | 2 | 140 A | 50 mm² | 1 mm² | Feed Through | 1 | 150 A | 16 mm | 1000 V | 18 AWG | 0 AWG | 1000 V | Screw | Yellow |
