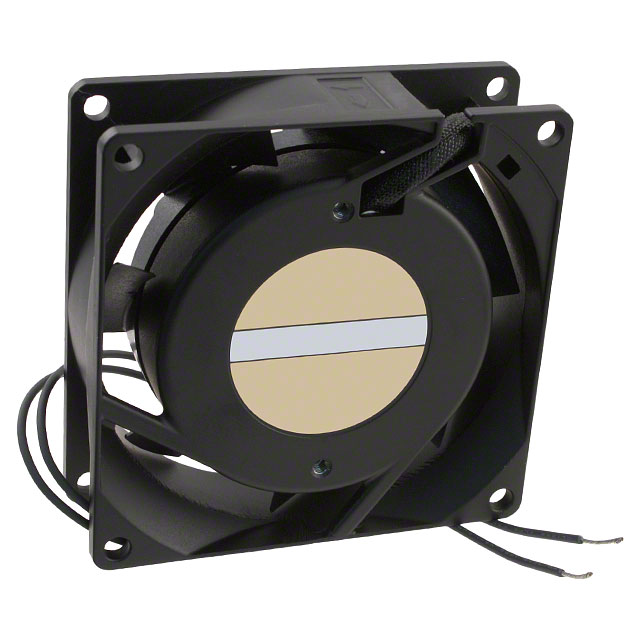

Specification	3110MS-23W-B30-A00

Air Flow	24 CFM
Approval Agency	CE, VDE, UL
Bearing Type	Ball
Current Rating	45 mA
Fan Type	Tubeaxial
Lifetime	50000 Hrs
Material - Blade	Polycarbonate, PC, Fiberglass Reinforced
Material - Frame	Aluminum
Noise	31 dB
Operating Temperature (Max)	158 °F
Operating Temperature (Min)	14 °F
Power (Watts)	6.5 W
RPM	3000 RPM
Size / Dimension Height	80 mm
Size / Dimension Length	80 mm
Size / Dimension Shape	Square
Static Pressure	0.22 in H2O
Termination	2 Wire Leads
Termination Leads Count	2 leads
Termination Type	Wire Leads
Voltage - Rated	230 VAC
Weight	0.529 lb
Width	25 mm

3110MS Series

Part	Size / Dimension Length	Size / Dimension Shape	Size / Dimension Height	Fan Type	RPM	Width	Approval Agency	Weight	Air Flow	Power (Watts)	Voltage - Rated	Termination Leads Count	Termination Type	Termination	Operating Temperature (Max)	Operating Temperature (Min)	Static Pressure	Bearing Type	Noise	Material - Frame	Material - Blade	Lifetime	Current Rating	Ingress Protection IP Rating	Ingress Protection Description
NMB TECHNOLOGIES 3110MS-24W-B30-A00	80 mm	Square	80 mm	Tubeaxial	3000 RPM	25.3 mm	CE UL VDE	0.529 lb	24 CFM	6.5 W	240 V	2 leads	Wire Leads	2 Wire Leads	158 °F	14 °F	0.22 in H2O	Ball	31 dB	Aluminum	Fiberglass Reinforced PC Polycarbonate	100000 Hrs	45 mA
NMB TECHNOLOGIES 3110MS-23W-B30-A00	80 mm	Square	80 mm	Tubeaxial	3000 RPM	25 mm	CE UL VDE	0.529 lb	24 CFM	6.5 W	230 VAC	2 leads	Wire Leads	2 Wire Leads	158 °F	14 °F	0.22 in H2O	Ball	31 dB	Aluminum	Fiberglass Reinforced PC Polycarbonate	50000 Hrs	45 mA
NMB TECHNOLOGIES 3110MS-12W-B30-AM0	80 mm	Square	80 mm	Tubeaxial	3000 RPM	25 mm	CE UL VDE	0.529 lb	24 CFM	6.5 W	115 V	2 leads	Wire Leads	2 Wire Leads	158 °F	14 °F	0.22 in H2O	Ball	31 dB	Aluminum	Fiberglass Reinforced PC Polycarbonate	50000 Hrs	0.09 A	IP54	Dust Protected Water Resistant
NMB TECHNOLOGIES 3110MS-23W-B30-AM0	80 mm	Square	80 mm	Tubeaxial	3000 RPM	25 mm	CE UL VDE	0.529 lb	24 CFM	6.5 W	230 VAC	2 leads	Wire Leads	2 Wire Leads	158 °F	14 °F	0.22 in H2O	Ball	31 dB	Aluminum	Fiberglass Reinforced PC Polycarbonate	50000 Hrs	45 mA	IP54	Dust Protected Water Resistant
NMB TECHNOLOGIES 3110MS-12W-B30-A00	80 mm	Square	80 mm	Tubeaxial	3000 RPM	25 mm	CE UL VDE	0.529 lb	24 CFM	6.5 W	115 V	2 leads	Wire Leads	2 Wire Leads	158 °F	14 °F	0.22 in H2O	Ball	31 dB	Aluminum	Fiberglass Reinforced PC Polycarbonate	50000 Hrs	0.09 A
NMB TECHNOLOGIES 3110MS-10W-B30-B00	80 mm	Square	80 mm	Tubeaxial	3000 RPM	25.3 mm	CE UL VDE	0.529 lb	24 CFM	6.5 W	100 VAC/DC	2 leads	Wire Leads	2 Wire Leads	158 °F	14 °F	0.22 in H2O	Ball	31 dB	Aluminum	Fiberglass Reinforced PC Polycarbonate	100000 Hrs	110 mA
NMB TECHNOLOGIES 3110MS-22W-B30-B00	80 mm	Square	80 mm	Tubeaxial	3000 RPM	25.3 mm	CE UL VDE	0.529 lb	24 CFM	6.5 W	220 VAC	2 leads	Wire Leads	2 Wire Leads	158 °F	14 °F	0.22 in H2O	Ball	31 dB	Aluminum	Fiberglass Reinforced PC Polycarbonate	100000 Hrs	45 mA
NMB TECHNOLOGIES 3110MS-20W-B30-B00	80 mm	Square	80 mm	Tubeaxial	3000 RPM	25.3 mm	CE UL VDE	0.529 lb	24 CFM	6 W	200 VDC	2 leads	Wire Leads	2 Wire Leads	158 °F	14 °F	0.22 in H2O	Ball	31 dB	Aluminum	Fiberglass Reinforced PC Polycarbonate	100000 Hrs	50 mA
