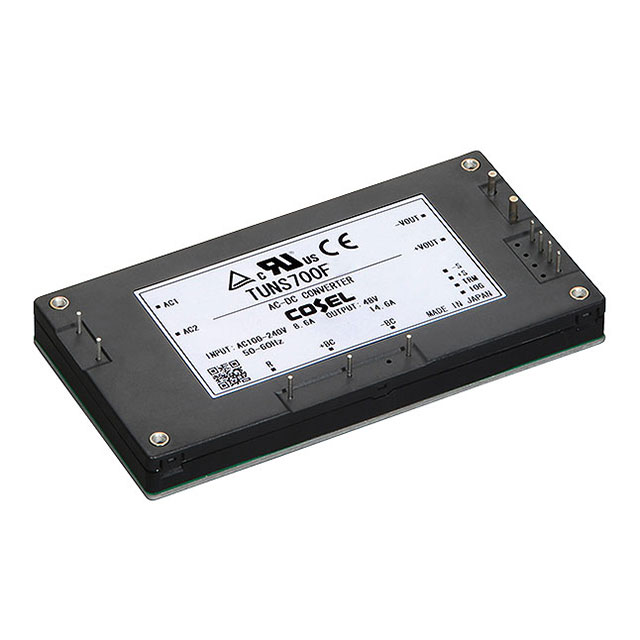

TUNS700F28

Active

Cosel USA, Inc.

AC-DC REGULATED POWER SUPPLY MODULE, 1 OUTPUT, 700W, HYBRID, ROHS COMPLIANT, MODULE-11

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TUNS700F28

Active

Cosel USA, Inc.

AC-DC REGULATED POWER SUPPLY MODULE, 1 OUTPUT, 700W, HYBRID, ROHS COMPLIANT, MODULE-11

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TUNS700F28

Applications	ITE (Commercial)
Approval Agency	UL, TUV, cURus, CE, CSA
Current - Output (Max) [Max]	25 A
Efficiency	89 %
Features	Universal Input
Line Regulation	56 mV
Load Regulation	56 mV
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Package / Case	7-DIP Module
Power (Watts)	700 W
Size / Dimension [x]	117.3 mm
Size / Dimension [x]	4.62 "
Size / Dimension [y]	61.5 mm
Size / Dimension [y]	2.42 in
Size / Dimension [z]	0.5 in
Size / Dimension [z]	12.7 mm
Standard Number	60950-1, 62368-1
Type	Enclosed
Voltage - Output 1	28 V

TUNS700 Series

Part	Power (Watts)	Standard Number	Efficiency	Number of Outputs	Mounting Type	Line Regulation	Features	Approval Agency	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Voltage - Output 1	Applications	Current - Output (Max) [Max]	Type	Load Regulation	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]
Cosel USA, Inc. TUNS700F28	700 W	60950-1 62368-1	89 %	1	Through Hole	56 mV	Universal Input	CE CSA cURus TUV UL	117.3 mm	0.5 in	12.7 mm	4.62 "	61.5 mm	2.42 in	28 V	ITE (Commercial)	25 A	Enclosed	56 mV	7-DIP Module	-40 °C	100 °C
Cosel USA, Inc. TUNS700F28-P	700 W	60950-1 62368-1	89 %	1	Through Hole	56 mV	Baseplate Universal Input	CE CSA cURus TUV UL	117.3 mm	0.5 in	12.7 mm	4.62 "	61.5 mm	2.42 in	28 V	ITE (Commercial)	25 A	Enclosed	56 mV	7-DIP Module	-40 °C	100 °C
Cosel USA, Inc. TUNS700F48-P	701 W	60950-1 62368-1	90 %	1	Through Hole	96 mV	Baseplate Universal Input	CE CSA cURus TUV UL	117.3 mm	0.5 in	12.7 mm	4.62 "	61.5 mm	2.42 in	48 V	ITE (Commercial)	14.6 A	Enclosed	96 mV	7-DIP Module	-40 °C	100 °C
Cosel USA, Inc. TUNS700F12-P	701 W	60950-1 62368-1	86 %	1	Through Hole	24 mV	Baseplate Universal Input	CE CSA cURus TUV UL	117.3 mm	0.5 in	12.7 mm	4.62 "	61.5 mm	2.42 in	12 V	ITE (Commercial)	58.4 A	Enclosed	24 mV	7-DIP Module	-40 °C	100 °C
Cosel USA, Inc. TUNS700F48	700 W	60950-1 62368-1	90 %	1	Through Hole	96 mV	Universal Input	CE CSA cURus TUV UL	117.3 mm	0.5 in	12.7 mm	4.62 "	61.5 mm	2.42 in	48 V	ITE (Commercial)	14.6 A	Enclosed	96 mV	7-DIP Module	-40 °C	100 °C
Cosel USA, Inc. TUNS700F12	700 W	60950-1 62368-1	86 %	1	Through Hole	24 mV	Universal Input	CE CSA cURus TUV UL	117.3 mm	0.5 in	12.7 mm	4.62 "	61.5 mm	2.42 in	12 V	ITE (Commercial)	58.4 A	Enclosed	24 mV	7-DIP Module	-40 °C	100 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 231.09
		5	$ 223.87
		10	$ 216.65
		25	$ 209.42

Description

General part information

TUNS700 Series

Enclosed AC DC Converters 1 Output 28V 25A 85 ~ 264 VAC Input
