342-009-521-104
ActiveEDAC Inc.

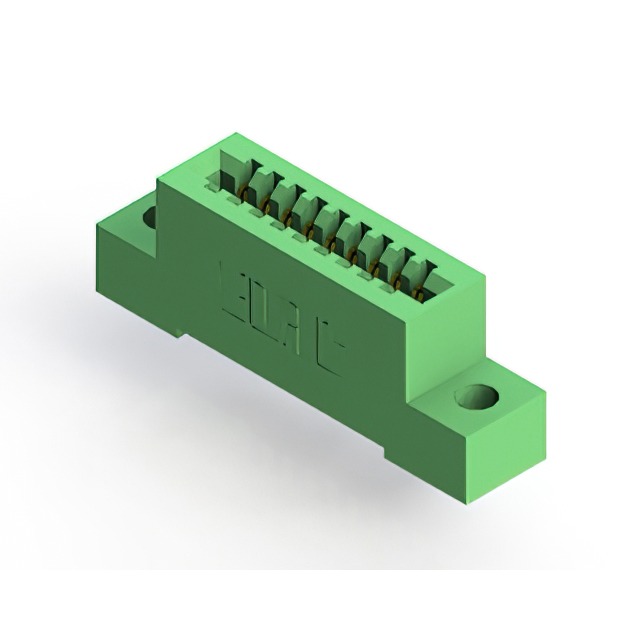

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 9 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Search across all available documentation for this part.
342-009-521-104
ActiveEDAC Inc.
CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 9 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 342-009-521-104 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.96 mm |
| Flange Feature [diameter] | 0.156 in |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 9 |
| Number of Positions/Bay/Row [custom] | 9 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
342-009 Series
| Part | Contact Type | Termination | Termination Rows | Flange Feature | Contact Material | Color | Contact Finish | Mounting Type | Pitch [x] | Pitch [x] | Number of Positions | Read Out | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions/Bay/Row [custom] | Gender | Card Type | Material - Insulation | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Finish Thickness | Contact Finish Thickness | Number of Rows | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Cantilever | Solder | 1 | Flush Mount M3 Threaded Insert Top Opening | Copper Alloy | Green | Gold | Through Hole | 2.54 mm | 0.1 in | 9 | Single | -40 °C | 105 ░C | 9 | Female | Non Specified - Single Edge | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | 1 | ||
EDAC Inc. | Cantilever | Wire Wrap | 1 | Copper Alloy | Green | Gold | Through Hole | 2.54 mm | 0.1 in | 9 | Single | -40 °C | 105 ░C | 9 | Female | Non Specified - Single Edge | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | 1 | |||
EDAC Inc. | Cantilever | Wire Wrap | 1 | Floating Bobbin Flush Mount | Copper Alloy | Green | Gold | Through Hole | 2.54 mm | 0.1 in | 9 | Single | -40 °C | 105 ░C | 9 | Female | Non Specified - Single Edge | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | 1 | 0.116 in | 2.95 mm |
EDAC Inc. | Cantilever | Wire Wrap | 1 | Flush Mount M3 Threaded Insert Top Opening | Copper Alloy | Green | Gold | Through Hole | 2.54 mm | 0.1 in | 9 | Single | -40 °C | 105 ░C | 9 | Female | Non Specified - Single Edge | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | 1 | ||
EDAC Inc. | Cantilever | Solder | 1 | Flush Mount Top Opening Unthreaded | Copper Alloy | Green | Gold | Through Hole | 2.54 mm | 0.1 in | 9 | Single | -40 °C | 105 ░C | 9 | Female | Non Specified - Single Edge | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | 1 | 0.156 in | 3.96 mm |
EDAC Inc. | Cantilever | Solder | 1 | Flush Mount M3 Threaded Insert Top Opening | Copper Alloy | Green | Gold | Through Hole | 2.54 mm | 0.1 in | 9 | Single | -40 °C | 105 ░C | 9 | Female | Non Specified - Single Edge | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | 1 | ||
EDAC Inc. | Cantilever | Wire Wrap | 1 | Floating Bobbin Flush Mount | Copper Alloy | Green | Gold | Through Hole | 2.54 mm | 0.1 in | 9 | Single | -40 °C | 105 ░C | 9 | Female | Non Specified - Single Edge | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | 1 | 0.116 in | 2.95 mm |
EDAC Inc. | Cantilever | Solder Wire Wrap | 1 | Flush Mount Side Opening Unthreaded | Copper Alloy | Green | Gold | Through Hole Right Angle | 2.54 mm | 0.1 in | 9 | Single | -40 °C | 105 ░C | 9 | Female | Non Specified - Single Edge | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | 1 | 0.128 " | 3.25 mm |
EDAC Inc. | Cantilever | Solder | 1 | Flush Mount Side Opening Unthreaded | Copper Alloy | Green | Gold | Through Hole | 2.54 mm | 0.1 in | 9 | Single | -40 °C | 105 ░C | 9 | Female | Non Specified - Single Edge | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | 1 | 0.128 " | 3.25 mm |
EDAC Inc. | Cantilever | Wire Wrap | 1 | 4-40 Flush Mount Threaded Insert Top Opening | Copper Alloy | Green | Gold | Through Hole | 2.54 mm | 0.1 in | 9 | Single | -40 °C | 105 ░C | 9 | Female | Non Specified - Single Edge | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | 1 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
342-009 Series
9 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Green
