A14399-01

Active

Laird Technologies - Thermal Materials

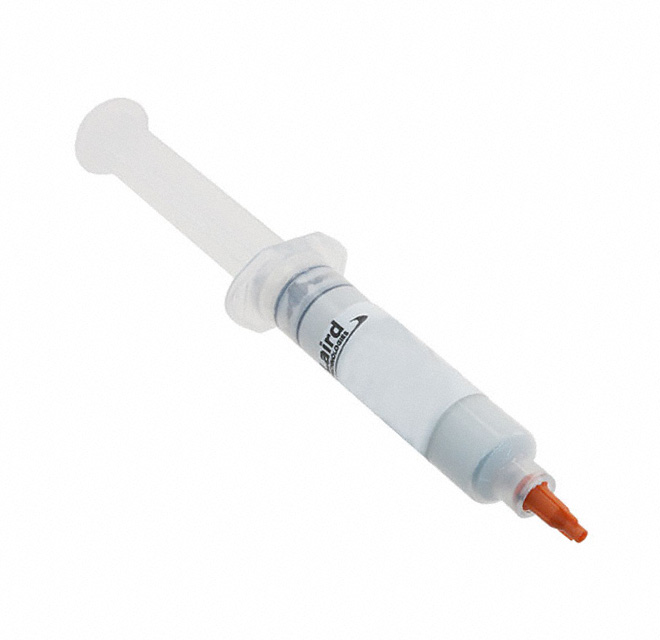

THERMAL GREASE 10CC TGREASE 2500

Search across all available documentation for this part.

Active

Laird Technologies - Thermal Materials

THERMAL GREASE 10CC TGREASE 2500

Technical Specifications

Parameters and characteristics for this part

Specification	A14399-01

Color	White
Features	Low Outgassing (ASTM E595)
Material Flammability Rating	UL94 V-0
Shipping Info	Drop shipped from the Manufacturer's Warehouse
Size / Dimension	10cc Syringe
Thermal Conductivity	3.8 W/m-K
Type	Non-Silicone Grease
Usable Temperature Range [Max]	150 °C
Usable Temperature Range [Max]	302 °F
Usable Temperature Range [Min]	-50 °C
Usable Temperature Range [Min]	-67 °F

Part	Thermal Conductivity	Usable Temperature Range [Min]	Usable Temperature Range [Max]	Usable Temperature Range [Min]	Usable Temperature Range [Max]	Color	Shipping Info	Type	Material Flammability Rating	Size / Dimension	Features
Laird Technologies - Thermal Materials A14399-03	3.8 W/m-K	-50 °C	150 °C	-67 °F	302 °F	White	Drop shipped from the Manufacturer's Warehouse	Non-Silicone Grease	UL94 V-0	50cc Syringe	Low Outgassing (ASTM E595)
Laird Technologies - Thermal Materials A14399-01	3.8 W/m-K	-50 °C	150 °C	-67 °F	302 °F	White	Drop shipped from the Manufacturer's Warehouse	Non-Silicone Grease	UL94 V-0	10cc Syringe	Low Outgassing (ASTM E595)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	12	$ 61.65

General part information

Thermal Non-Silicone Grease 10cc Syringe

Technical documentation and resources
