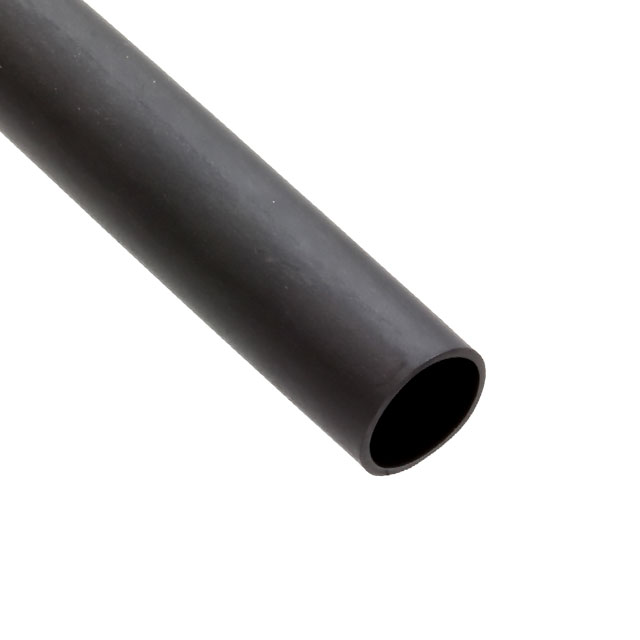

ES2000-N02B9-0-65MMCS7519

Obsolete

TE Connectivity Raychem Cable Protection

HEAT SHRINK TUBING

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTE Raychem Heat Shrink Shelf Life Datasheet

ES2000-N02B9-0-65MMCS7519

Obsolete

TE Connectivity Raychem Cable Protection

HEAT SHRINK TUBING

Deep-Dive with AI

DocumentsTE Raychem Heat Shrink Shelf Life Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ES2000-N02B9-0-65MMCS7519

Shelf Life	36 Months
Storage/Refrigeration Temperature [Max]	35 °C
Storage/Refrigeration Temperature [Min]	0 °C

RAYCHEM ES2000 Series

Part	Length	Length	Length	Storage/Refrigeration Temperature [Max]	Color	Operating Temperature [Min]	Operating Temperature [Max]	Shrink Temperature	Shelf Life	Shrinkage Ratio	Material	Inner Diameter - Recovered	Inner Diameter - Recovered	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Features	Type	Recovered Wall Thickness	Recovered Wall Thickness	Length [x]	Length [x]	Length [x]	Recovered Wall Thickness [custom]	Recovered Wall Thickness [custom]	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]
TE Connectivity Raychem Cable Protection ES2000-NO.2-B9-0-35MM	1.37 "	35 mm	0.114 '	35 °C	Black	-40 °C	130 °C	110 °C	36 Months	4 to 1	Polyolefin (PO) Irradiated	0.065 in	1.65 mm	7.44 mm	0.293 in	Abrasion Resistant Adhesive Lined Flame Retardant Fluid Resistant Strain Resistant	Tubing Semi Rigid	0.06 in	1.52 mm
TE Connectivity Raychem Cable Protection ES2000-NO.4-B7-0-203MM				35 °C	Black	-40 °C	130 °C	110 °C	36 Months	4 to 1	Polyolefin (PO) Irradiated	0.175 in	4.45 mm	17.78 mm	0.7 "	Abrasion Resistant Adhesive Lined Flame Retardant Fluid Resistant Strain Resistant	Tubing Semi Rigid	0.095 in	2.41 mm	0.666 '	7.99 "	203 mm
TE Connectivity Raychem Cable Protection ES2000-N02B9-0-65MMCS7519				35 °C					36 Months
TE Connectivity Raychem Cable Protection ES2000-NO.3-B8-0-150MM	5.91 "	150 mm	0.492 ft	35 °C	Black	-40 °C	130 °C	110 °C	36 Months	4 to 1	Polyolefin (PO) Irradiated			10.85 mm	0.427 in	Abrasion Resistant Adhesive Lined Flame Retardant Fluid Resistant Strain Resistant	Tubing Semi Rigid						1.91 mm	0.075 in	2.41 mm	0.095 in
TE Connectivity Raychem Cable Protection ES2000-NO.1-C1-0-15MM	0.59 in	15 mm	0.049 ft	35 °C	Black	-40 °C	130 °C	110 °C	36 Months	4 to 1	Polyolefin (PO) Irradiated			5.72 mm	0.225 in	Abrasion Resistant Adhesive Lined Flame Retardant Fluid Resistant Strain Resistant	Tubing Semi Rigid	0.047 "	1.19 mm						1.27 mm	0.05 in
TE Connectivity Raychem Cable Protection ES2000-NO.1-C1-0-27MM	1.06 "	27 mm	0.088 ft	35 °C	Black	-40 °C	130 °C	110 °C	36 Months	4 to 1	Polyolefin (PO) Irradiated			5.72 mm	0.225 in	Abrasion Resistant Adhesive Lined Flame Retardant Fluid Resistant Strain Resistant	Tubing Semi Rigid	0.047 "	1.19 mm						1.27 mm	0.05 in
TE Connectivity Raychem Cable Protection ES2000-NO.1-C1-0-60MM	2.36 in	60 mm	0.196 '	35 °C	Black	-40 °C	130 °C	110 °C	36 Months	4 to 1	Polyolefin (PO) Irradiated			5.72 mm	0.225 in	Abrasion Resistant Adhesive Lined Flame Retardant Fluid Resistant Strain Resistant	Tubing Semi Rigid	0.047 "	1.19 mm						1.27 mm	0.05 in
TE Connectivity Raychem Cable Protection ES2000-NO.2-B9-0-30MM	1.18 "	30 mm	0.098 ft	35 °C	Black	-40 °C	130 °C	110 °C	36 Months	4 to 1	Polyolefin (PO) Irradiated	0.065 in	1.65 mm	7.44 mm	0.293 in	Abrasion Resistant Adhesive Lined Flame Retardant Fluid Resistant Strain Resistant	Tubing Semi Rigid	0.06 in	1.52 mm
TE Connectivity Raychem Cable Protection ES2000-NO.4-B7-0-75MM	2.95 in	75 mm	0.246 ft	35 °C	Black	-40 °C	130 °C	110 °C	36 Months	4 to 1	Polyolefin (PO) Irradiated	0.175 in	4.45 mm	17.78 mm	0.7 "	Abrasion Resistant Adhesive Lined Flame Retardant Fluid Resistant Strain Resistant	Tubing Semi Rigid	0.095 in	2.41 mm
TE Connectivity Raychem Cable Protection ES2000-NO.4-A1-0-47MM				35 °C	Black	-40 °C	130 °C	110 °C	36 Months	4 to 1	Polyolefin (PO) Irradiated	0.175 in	4.45 mm	17.78 mm	0.7 "	Abrasion Resistant Adhesive Lined Flame Retardant Fluid Resistant No Markings Strain Resistant	Tubing Semi Rigid	0.095 in	2.41 mm	0.154 ft	1.85 in	46.99 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

RAYCHEM ES2000 Series

Heat Shrink

Documents

Technical documentation and resources

TE Raychem Heat Shrink Shelf Life

Datasheet
