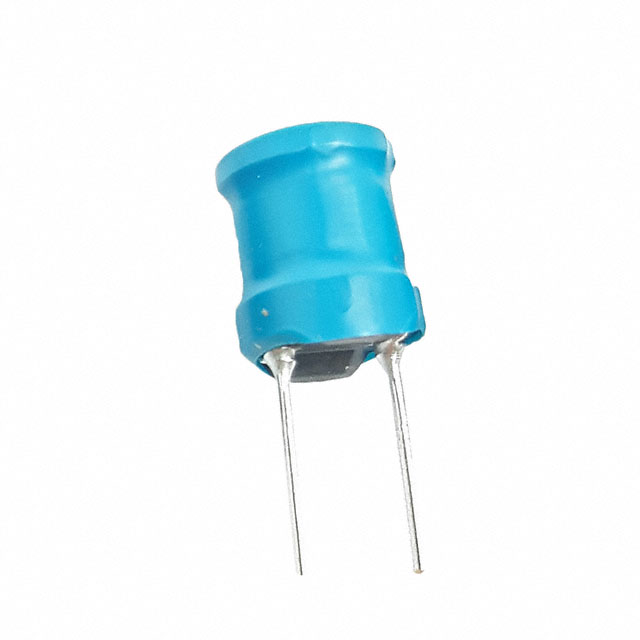

SBCP-87HY820H

Active

KEMET

INDUCTOR, 82UH, 10%, 1.1A, RADIAL

Search across all available documentation for this part.

Active

KEMET

INDUCTOR, 82UH, 10%, 1.1A, RADIAL

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Current - Saturation (Isat)	Current Rating (Amps)	DC Resistance (DCR) [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Size / Dimension [diameter]	Size / Dimension [diameter]	Material - Core	Inductance Frequency - Test	Type	Shielding	Tolerance	Inductance
KEMET SBCP-87HY471H	Through Hole	390 mA	0.42 A	1.3 Ohm	0.335 in	8.5 mm	-20 C	105 ░C	Radial Vertical Cylinder	9.5 mm	0.374 "	Ferrite	10 kHz	Drum Core Wirewound	Unshielded	10 %
KEMET SBCP-87HY820H	Through Hole	940 mA	1.1 A	230 mOhm	0.335 in	8.5 mm	-20 C	105 ░C	Radial Vertical Cylinder	9.5 mm	0.374 "	Ferrite	10 kHz	Drum Core Wirewound	Unshielded	10 %	82 µH
KEMET SBCP-87HY101H	Through Hole	870 mA	900 mA	300 mOhm	0.335 in	8.5 mm	-20 C	105 ░C	Radial Vertical Cylinder	9.5 mm	0.374 "	Ferrite	10 kHz	Drum Core Wirewound	Unshielded	10 %	100 µH
KEMET SBCP-87HY220H	Through Hole	1.8 A	1.9 A	80 mOhm	0.335 in	8.5 mm	-20 C	105 ░C	Radial Vertical Cylinder	9.5 mm	0.374 "	Ferrite	10 kHz	Drum Core Wirewound	Unshielded	20 %	22 µH
KEMET SBCP-87HY331H	Through Hole	470 mA	0.5 A	920 mOhm	0.335 in	8.5 mm	-20 C	105 ░C	Radial Vertical Cylinder	9.5 mm	0.374 "	Ferrite	10 kHz	Drum Core Wirewound	Unshielded	10 %	330 µH
KEMET SBCP-87HY3R3H	Through Hole	4.8 A	3.2 A	30 mOhm	0.335 in	8.5 mm	-20 C	105 ░C	Radial Vertical Cylinder	9.5 mm	0.374 "	Ferrite	10 kHz	Drum Core Wirewound	Unshielded	30 %	3.3 µH

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

82 µH Unshielded Drum Core, Wirewound Inductor 1.1 A 230mOhm Max Radial, Vertical Cylinder
