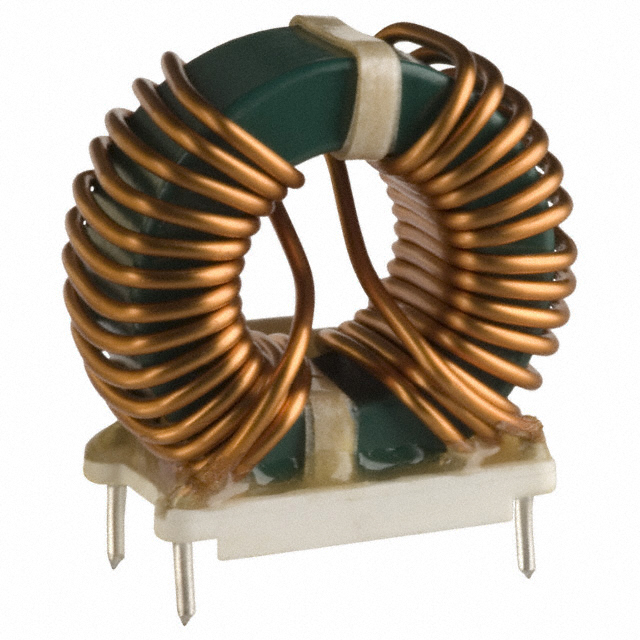

8120-RC
ActiveBourns Inc.
CMC 2.4MH 17A 2LN TH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
8120-RC
ActiveBourns Inc.
CMC 2.4MH 17A 2LN TH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 8120-RC |
|---|---|
| Current Rating (Max) [Max] | 17 A |
| DC Resistance (DCR) (Max) [Max] | 8 mOhm |
| Height (Max) [Max] | 1.65 " |
| Height (Max) [Max] | 41.91 mm |
| Inductance @ Frequency | 1 kHz, 2.4 mH |
| Mounting Type | Through Hole |
| Number of Lines | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 4 Lead |
| Package / Case | Vertical |
| Size / Dimension [x] | 1.7 " |
| Size / Dimension [x] | 43.18 mm |
| Size / Dimension [y] | 22.86 mm |
| Size / Dimension [y] | 0.9 " |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 10.73 | |
| 10 | $ 9.35 | |||
| 25 | $ 9.20 | |||
| 50 | $ 8.89 | |||
| 168 | $ 8.37 | |||
| 336 | $ 8.16 | |||
Description
General part information
8120 Series
2.4 mH @ 1 kHz 2 Line Common Mode Choke Through Hole 17A DCR 8mOhm
