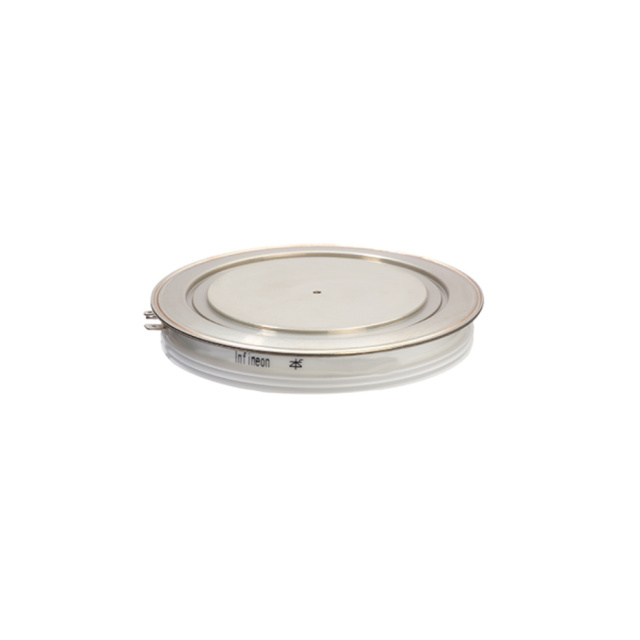

T2251N70TOHXPSA1

Obsolete

Infineon Technologies

SCR MODULE 8KV 3550A TO-200AF

Search across all available documentation for this part.

Obsolete

Infineon Technologies

SCR MODULE 8KV 3550A TO-200AF

Technical Specifications

Parameters and characteristics for this part

Specification	T2251N70TOHXPSA1

Current - Gate Trigger (Igt) (Max) [Max]	350 mA
Current - Hold (Ih) (Max) [Max]	350 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)	67000 A
Current - On State (It (AV)) (Max) [Max]	3140 A
Current - On State (It (RMS)) (Max) [Max]	3550 A
Mounting Type	Chassis Mount
Number of SCRs, Diodes	1 SCR
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	TO-200AF
Structure	Single
Voltage - Gate Trigger (Vgt) (Max)	2.5 V
Voltage - Off State	8 kV

Part	Structure	Operating Temperature [Max]	Operating Temperature [Min]	Current - Non Rep. Surge 50, 60Hz (Itsm)	Current - On State (It (AV)) (Max) [Max]	Current - On State (It (RMS)) (Max) [Max]	Package / Case	Voltage - Gate Trigger (Vgt) (Max)	Current - Hold (Ih) (Max) [Max]	Mounting Type	Current - Gate Trigger (Igt) (Max) [Max]	Voltage - Off State	Number of SCRs, Diodes
Infineon Technologies T2251N70TOHXPSA1	Single	125 °C	-40 °C	67000 A	3140 A	3550 A	TO-200AF	2.5 V	350 mA	Chassis Mount	350 mA	8 kV	1 SCR

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

SCR Module 8 kV 3550 A Single Chassis Mount TO-200AF

Technical documentation and resources

No documents available
