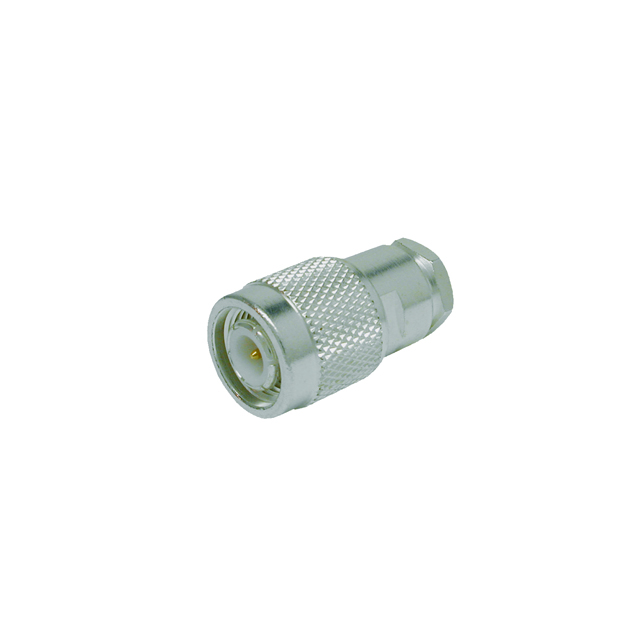

Specification	TC-200-TMC

Body Finish	Silver
Body Material	Brass
Cable Group	LMR-200
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	TNC
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded
Frequency - Max	3 GHz
Housing Color	Silver
Impedance	50 Ohm
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Shield Termination	Clamp
Voltage Rating	500 V

TC-200 Series

Part	Center Contact Plating	Body Material	Mating Cycles	Dielectric Material	Body Finish	Operating Temperature (Max)	Operating Temperature (Min)	Voltage Rating	Contact Termination	Housing Color	Number of Ports	Cable Group	Connector Type	Fastening Type	Center Contact Material	Frequency - Max	Shield Termination	Connector Style	Mounting Type	Impedance
McGill Microwave Systems TC-200-FMEF-X	Gold	Brass	500 cycles	Polytetrafluoroethylene (PTFE)	White Bronze	125 °C	-55 °C	500 V	Solder	Silver	1	LMR-200	Female Socket Jack	Threaded	Beryllium Copper Brass	2 GHz	Crimp	FME	Free Hanging (In-Line)	50 Ohm
McGill Microwave Systems TC-200-NMH-X	Gold	Brass		Polytetrafluoroethylene (PTFE)	White Bronze	165 °C	-65 °C		Solder	Silver	1	LMR-200	Male Pin Plug	Threaded	Brass Phosphor Bronze	6000 MHz	Crimp	N Type	Free Hanging (In-Line)	50 Ohm
McGill Microwave Systems TC-200-SM-SS-X	Gold	Stainless Steel		Polytetrafluoroethylene (PTFE)		85 °C	-40 °C		Solder	Silver	1	LMR-200	Male Pin Plug	Threaded	Brass	2.5 GHz	Crimp	SMA	Free Hanging (In-Line)	50 Ohm
McGill Microwave Systems TC-200-TM-X
McGill Microwave Systems TC-200-TMC	Gold	Brass		Polytetrafluoroethylene (PTFE)	Silver	85 °C	-40 °C	500 V	Solder	Silver	1	LMR-200	Male Pin Plug	Threaded	Brass	3 GHz	Clamp	TNC	Free Hanging (In-Line)	50 Ohm
McGill Microwave Systems TC-200-FMEM-X	Gold	Brass	500 cycles	Polytetrafluoroethylene (PTFE)	White Bronze	125 °C	-55 °C	500 V	Solder	Silver	1	LMR-200	Male Pin Plug	Threaded	Brass	2 GHz	Crimp	FME	Free Hanging (In-Line)	50 Ohm
McGill Microwave Systems TC-200-BM-X	Gold	Brass		Polytetrafluoroethylene (PTFE)	White Bronze	165 °C	-65 °C		Solder	Silver	1	LMR-200	Male Pin Plug	Bayonet Lock	Brass	4 GHz	Crimp	BNC	Free Hanging (In-Line)	50 Ohm
McGill Microwave Systems TC-200-SM-RP	Gold	Stainless Steel		Polytetrafluoroethylene (PTFE)		85 °C	-40 °C	750 VDC	Solder	Silver	1	LMR-200	Female Socket Plug	Threaded	Brass	2.5 GHz	Crimp	RP-SMA	Free Hanging (In-Line)	50 Ohm
McGill Microwave Systems TC-200-MUHF	Gold	Brass		Polyoxymethylene (POM)	Nickel	85 °C	-40 °C		Solder	Silver	1	LMR-200	Male Pin Plug	Threaded	Brass	2.5 GHz	Crimp	Mini UHF	Free Hanging (In-Line)	50 Ohm
McGill Microwave Systems TC-200-SM-RA-D
