HSA25180RJ
ActiveTE Connectivity Passive Product

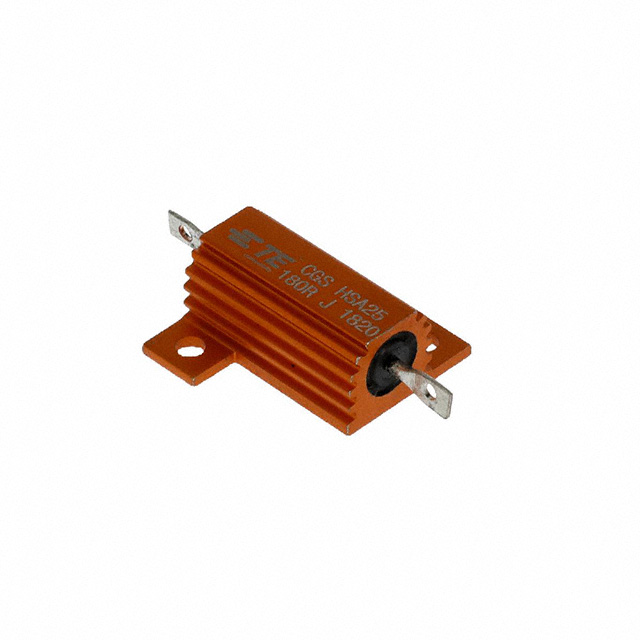

RES CHAS MNT 180 OHM 5% 25W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HSA25180RJ
ActiveTE Connectivity Passive Product
RES CHAS MNT 180 OHM 5% 25W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HSA25180RJ |
|---|---|
| Coating, Housing Type | Aluminum |
| Composition | Wirewound |
| Height - Seated (Max) [Max] | 15 mm |
| Height - Seated (Max) [Max] | 0.591 " |
| Lead Style | Solder Lugs |
| Mounting Feature | Flanges |
| Operating Temperature [Max] | 200 °C |
| Operating Temperature [Min] | -55 °C |
| Power (Watts) | 25 W |
| Resistance | 180 Ohms |
| Size / Dimension [x] | 29 mm |
| Size / Dimension [x] | 1.142 inches |
| Size / Dimension [y] | 1.102 in |
| Size / Dimension [y] | 28 mm |
| Temperature Coefficient | 30 ppm/°C |
| Tolerance | 5 % |
HSA25 Series
| Part | Tolerance | Power (Watts) | Lead Style | Operating Temperature [Min] | Operating Temperature [Max] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Coating, Housing Type | Composition | Mounting Feature | Temperature Coefficient | Resistance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Passive Product | 5 % | 25 W | Solder Lugs | -55 °C | 200 °C | 29 mm | 1.102 in | 1.142 inches | 28 mm | 15 mm | 0.591 " | Aluminum | Wirewound | Flanges | 30 ppm/°C | 5.6 kOhms |
TE Connectivity Passive Product | 5 % | 25 W | Solder Lugs | -55 °C | 200 °C | 29 mm | 1.102 in | 1.142 inches | 28 mm | 15 mm | 0.591 " | Aluminum | Wirewound | Flanges | 50 ppm/°C | 39 Ohms |
TE Connectivity Passive Product | 5 % | 25 W | Solder Lugs | -55 °C | 200 °C | 29 mm | 1.102 in | 1.142 inches | 28 mm | 15 mm | 0.591 " | Aluminum | Wirewound | Flanges | 30 ppm/°C | 20 kOhms |
TE Connectivity Passive Product | 5 % | 25 W | Solder Lugs | -55 °C | 200 °C | 29 mm | 1.102 in | 1.142 inches | 28 mm | 15 mm | 0.591 " | Aluminum | Wirewound | Flanges | 30 ppm/°C | 33 kOhms |
TE Connectivity Passive Product | 5 % | 25 W | Solder Lugs | -55 °C | 200 °C | 29 mm | 1.102 in | 1.142 inches | 28 mm | 15 mm | 0.591 " | Aluminum | Wirewound | Flanges | 30 ppm/°C | 3300 Ohms |
TE Connectivity Passive Product | 5 % | 25 W | Solder Lugs | -55 °C | 200 °C | 29 mm | 1.102 in | 1.142 inches | 28 mm | 15 mm | 0.591 " | Aluminum | Wirewound | Flanges | 30 ppm/°C | 10000 Ohms |
TE Connectivity Passive Product | 5 % | 25 W | Solder Lugs | -55 °C | 200 °C | 29 mm | 1.102 in | 1.142 inches | 28 mm | 15 mm | 0.591 " | Aluminum | Wirewound | Flanges | 50 ppm/°C | 1.2 Ohms |
TE Connectivity Passive Product | 5 % | 25 W | Solder Lugs | -55 °C | 200 °C | 29 mm | 1.102 in | 1.142 inches | 28 mm | 15 mm | 0.591 " | Aluminum | Wirewound | Flanges | 30 ppm/°C | 180 Ohms |
TE Connectivity Passive Product | 5 % | 25 W | Solder Lugs | -55 °C | 200 °C | 29 mm | 1.102 in | 1.142 inches | 28 mm | 15 mm | 0.591 " | Aluminum | Wirewound | Flanges | 50 ppm/°C | 0.15 Ohms |
TE Connectivity Passive Product | 1 % | 25 W | Solder Lugs | -55 °C | 200 °C | 29 mm | 1.102 in | 1.142 inches | 28 mm | 15 mm | 0.591 " | Aluminum | Wirewound | Flanges | 30 ppm/°C | 332 Ohms |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 2.91 | |
| 10 | $ 2.49 | |||
| 25 | $ 2.40 | |||
| 40 | $ 2.24 | |||
| 100 | $ 1.97 | |||
Description
General part information
HSA25 Series
180 Ohms ±5% 25W Wirewound Chassis Mount Resistor
