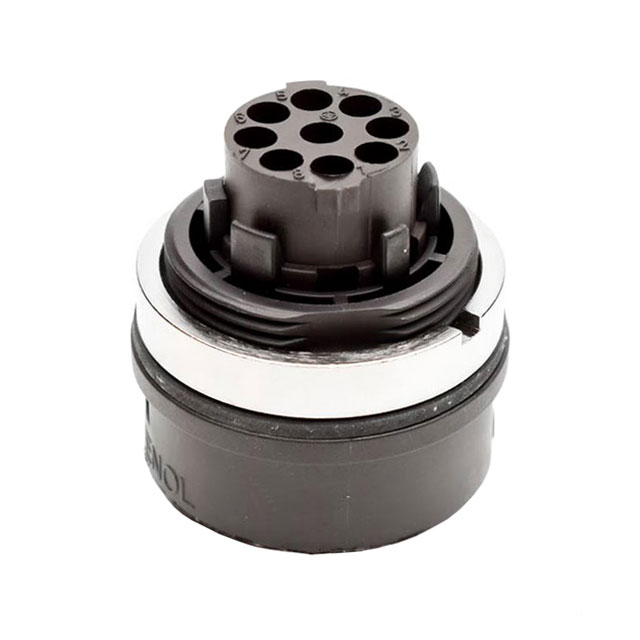

Specification	C01610N0080061

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	1.6 mm
Contact Type	Crimp
Fastening Type	Bayonet Lock
Housing Color	Black
Ingress Protection Description	Dust Tight, Water Resistant
Ingress Protection IP Rating	IP65
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount
Note	Contacts Not Included
Number of Positions	9
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Orientation	N (Normal)
Position Types	PE
Shell Material	Polyamide (PA66), Nylon 6/6
Shell Size - Insert	1
Shell Size - Insert	1
Shielding	Unshielded
Type	For Female Sockets

C01610N008 Series

Part	Connector Type	Contact Type	Fastening Type	Note	Operating Temperature (Max)	Operating Temperature (Min)	Mounting Type	Shell Size - Insert	Shell Size - Insert	Shell Material	Ingress Protection IP Rating	Ingress Protection Description	Orientation	Contact Shape	Type	Material Flammability Rating	Housing Color	Position Types	Number of Positions	Shielding	Contact Size
Amphenol Tuchel Industrial C01610N0080061	Receptacle Housing	Crimp	Bayonet Lock	Contacts Not Included	125 °C	-40 °C	Panel Mount	1	1	Nylon 6/6 Polyamide (PA66)	IP65	Dust Tight Water Resistant	N (Normal)	Circular	For Female Sockets	UL94 V-0	Black	PE	9	Unshielded	1.6 mm
