Q-3C04U000R003M
ActiveAmphenol Custom Cable

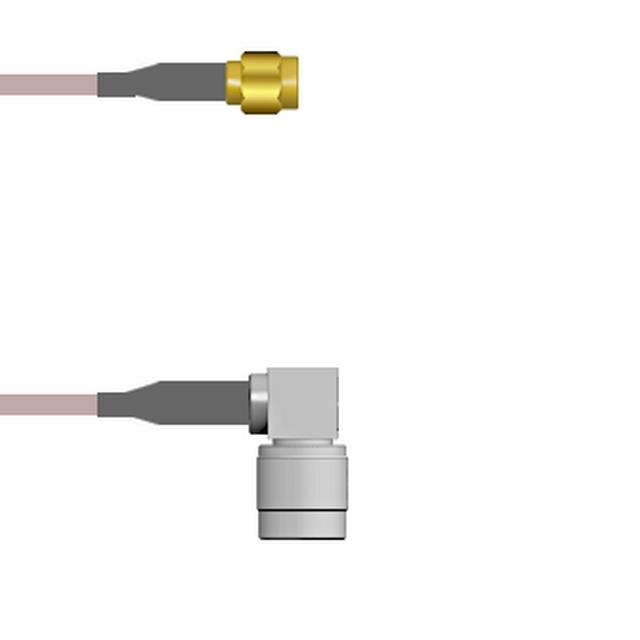

CBL ASSY SMA-TNC PLUG-PLUG 9.8'
Deep-Dive with AI
Search across all available documentation for this part.
Q-3C04U000R003M
ActiveAmphenol Custom Cable
CBL ASSY SMA-TNC PLUG-PLUG 9.8'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | Q-3C04U000R003M |
|---|---|
| 1st Connector | SMA Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | TNC Plug, Right Angle |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | RG-316 DS |
| Color | Copper |
| Connector Impedance | 50 Ohms |
| Features | Shielded |
| Frequency - Max [Max] | 3 GHz |
| Length | 3 m |
| Length | 118.1 in |
| Length | 9.8 ' |
| Overall Impedance | 50 Ohms |
| Style | SMA to TNC |
Q-3C04U0 Series
| Part | 2nd Connector | Features | Frequency - Max [Max] | Cable Impedance | 1st Connector Mounting Type | 1st Contact Gender | 2nd Contact Gender | Cable Type | 1st Connector | Connector Impedance | Color | 2nd Connector Mounting Type | Style | Length | Length | Length | Overall Impedance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Custom Cable | TNC Plug Right Angle | Shielded | 3 GHz | 50 Ohms | Free Hanging (In-Line) | Male | Male | RG-316 DS | SMA Plug | 50 Ohms | Copper | Free Hanging (In-Line) | SMA to TNC | 1 m | 3.3 ft | 39.4 in | 50 Ohms |
Amphenol Custom Cable | TNC Plug Right Angle | Shielded | 3 GHz | 50 Ohms | Free Hanging (In-Line) | Male | Male | RG-316 DS | SMA Plug | 50 Ohms | Copper | Free Hanging (In-Line) | SMA to TNC | 76.2 mm | 3 in | 50 Ohms | |
Amphenol Custom Cable | TNC Plug Right Angle | Shielded | 3 GHz | 50 Ohms | Free Hanging (In-Line) | Male | Male | RG-316 DS | SMA Plug | 50 Ohms | Copper | Free Hanging (In-Line) | SMA to TNC | 50 cm | 19.69 " | 50 Ohms | |
Amphenol Custom Cable | TNC Plug Right Angle | Shielded | 3 GHz | 50 Ohms | Free Hanging (In-Line) | Male | Male | RG-316 DS | SMA Plug | 50 Ohms | Copper | Free Hanging (In-Line) | SMA to TNC | 3 m | 9.8 ' | 118.1 in | 50 Ohms |
Amphenol Custom Cable | TNC Plug Right Angle | Shielded | 3 GHz | 50 Ohms | Free Hanging (In-Line) | Male | Male | RG-316 DS | SMA Plug | 50 Ohms | Copper | Free Hanging (In-Line) | SMA to TNC | 228.6 mm | 9 " | 50 Ohms | |
Amphenol Custom Cable | TNC Plug Right Angle | Shielded | 3 GHz | 50 Ohms | Free Hanging (In-Line) | Male | Male | RG-316 DS | SMA Plug | 50 Ohms | Copper | Free Hanging (In-Line) | SMA to TNC | 1200 mm | 4 ft | 48 in | 50 Ohms |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 94.52 | |
| 25 | $ 88.02 | |||
| 50 | $ 81.52 | |||
| 100 | $ 75.94 | |||
| 250 | $ 71.30 | |||
Description
General part information
Q-3C04U0 Series
Cable Assembly Coaxial SMA to TNC RG-316 DS 118.1" (3.0m) 9.8'
