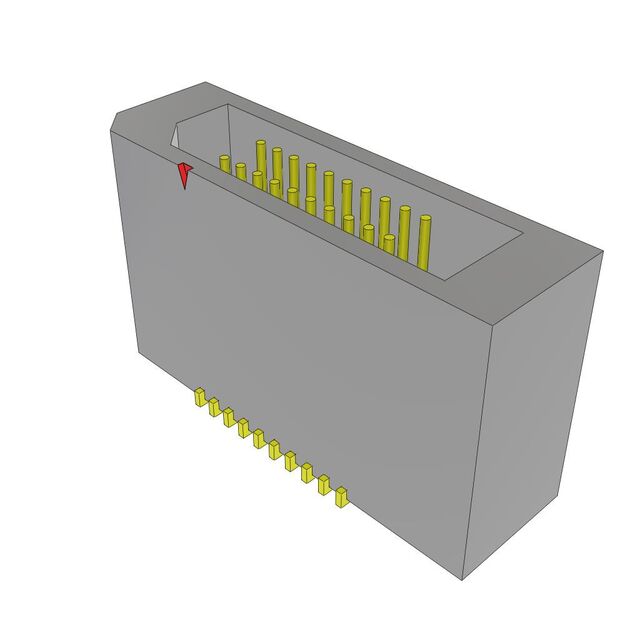

TEM-110-02-07.0-G-D-LC

Active

Samtec Inc.

.8MM TIGER EYE MICRO TERMINAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet SEM Series Other Related Documents 03 +1

TEM-110-02-07.0-G-D-LC

Active

Samtec Inc.

.8MM TIGER EYE MICRO TERMINAL

Deep-Dive with AI

DocumentsDatasheet SEM Series Other Related Documents 03 +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TEM-110-02-07.0-G-D-LC

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	3 µin
Contact Finish Thickness - Post	0.076 µm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	2.9 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Material	Liquid Crystal Polymer (LCP)
Mated Stacking Heights	10 mm
Mounting Type	Surface Mount
Number of Positions	20
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.031 in
Pitch - Mating	0.8 mm
Row Spacing - Mating [x]	1.6 mm
Row Spacing - Mating [x]	0.063 in
Shrouding	Shrouded - 4 Wall
Termination	Solder

TEM-110 Series

Part	Current Rating (Amps)	Number of Positions	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Mated Stacking Heights	Contact Finish - Mating	Number of Rows	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Fastening Type	Insulation Height	Insulation Height	Termination	Contact Material	Features	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Shape	Insulation Color	Shrouding	Connector Type	Contact Type	Mounting Type	Contact Finish - Post
Samtec Inc. TEM-110-02-03.0-G-D-WT-K-TR	2.9 A	20	All	0.031 in	0.8 mm	6 mm	Gold	2	3 µin	0.076 µm	Push-Pull	5.6 mm	0.22 in	Solder	Phosphor Bronze	Pick and Place Solder Retention	1.6 mm	0.063 in	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	10 çin	0.25 çm	Square	Black	Shrouded - 4 Wall	Header	Male Pin	Surface Mount	Gold
Samtec Inc. TEM-110-02-03.0-H-D-L1-K-TR	2.9 A	20	All	0.031 in	0.8 mm	6 mm	Gold	2	3 µin	0.076 µm	Latch Lock	5.6 mm	0.22 in	Solder	Phosphor Bronze	Pick and Place	1.6 mm	0.063 in	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	30 Áin	0.76 Ám	Square	Black	Shrouded - 4 Wall	Header	Male Pin	Surface Mount	Gold
Samtec Inc. TEM-110-02-04.0-G-D-A	2.9 A	20	All	0.031 in	0.8 mm	7 mm	Gold	2	3 µin	0.076 µm	Push-Pull	6.6 mm	0.26 in	Solder	Phosphor Bronze	Board Guide	1.6 mm	0.063 in	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	10 çin	0.25 çm	Square	Black	Shrouded - 4 Wall	Header	Male Pin	Surface Mount	Gold
Samtec Inc. TEM-110-02-03.0-G-D-WT	2.9 A	20	All	0.031 in	0.8 mm	6 mm	Gold	2	3 µin	0.076 µm	Push-Pull	5.6 mm	0.22 in	Solder	Phosphor Bronze	Solder Retention	1.6 mm	0.063 in	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	10 çin	0.25 çm	Square	Black	Shrouded - 4 Wall	Header	Male Pin	Surface Mount	Gold
Samtec Inc. TEM-110-02-07.0-H-D-WT	2.9 A	20	All	0.031 in	0.8 mm	10 mm	Gold	2	3 µin	0.076 µm	Push-Pull			Solder	Phosphor Bronze	Solder Retention	1.6 mm	0.063 in	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	30 Áin	0.76 Ám	Square	Black	Shrouded - 4 Wall	Header	Male Pin	Surface Mount	Gold
Samtec Inc. TEM-110-02-07.0-G-D-LC	2.9 A	20	All	0.031 in	0.8 mm	10 mm	Gold	2	3 µin	0.076 µm	Push-Pull			Solder	Phosphor Bronze		1.6 mm	0.063 in	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	10 çin	0.25 çm	Square	Black	Shrouded - 4 Wall	Header	Male Pin	Surface Mount	Gold
Samtec Inc. TEM-110-02-03.0-FG-D-L1-K	2.9 A	20	All	0.031 in	0.8 mm	6 mm	Gold	2	3 µin	0.076 µm	Latch Lock	5.6 mm	0.22 in	Solder	Phosphor Bronze	Pick and Place	1.6 mm	0.063 in	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	3 µin	0.076 µm	Square	Black	Shrouded - 4 Wall	Header	Male Pin	Surface Mount	Gold
Samtec Inc. TEM-110-02-04.0-G-D	2.9 A	20	All	0.031 in	0.8 mm	7 mm	Gold	2	3 µin	0.076 µm	Push-Pull	6.6 mm	0.26 in	Solder	Phosphor Bronze		1.6 mm	0.063 in	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	10 çin	0.25 çm	Square	Black	Shrouded - 4 Wall	Header	Male Pin	Surface Mount	Gold
Samtec Inc. TEM-110-02-07.0-G-D-A	2.9 A	20	All	0.031 in	0.8 mm	10 mm	Gold	2	3 µin	0.076 µm	Push-Pull			Solder	Phosphor Bronze	Board Guide	1.6 mm	0.063 in	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	10 çin	0.25 çm	Square	Black	Shrouded - 4 Wall	Header	Male Pin	Surface Mount	Gold
Samtec Inc. TEM-110-02-03.0-H-D-LC-TR	2.9 A	20	All	0.031 in	0.8 mm	6 mm	Gold	2	3 µin	0.076 µm	Push-Pull	5.6 mm	0.22 in	Solder	Phosphor Bronze		1.6 mm	0.063 in	-55 °C	125 °C	Liquid Crystal Polymer (LCP)	30 Áin	0.76 Ám	Square	Black	Shrouded - 4 Wall	Header	Male Pin	Surface Mount	Gold
