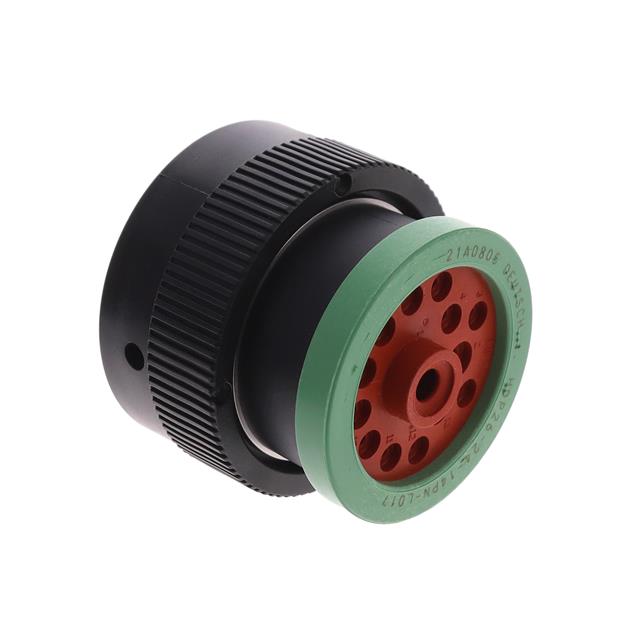

Specification	HDP26-24-14PN-L017

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	12, 16, 4
Contact Type	Crimp
Fastening Type	Bayonet Lock
Features	Coupling Nut, Ring Adapter
Housing Color	Green, Black
Ingress Protection Description	Dust Tight, Waterproof
Ingress Protection IP Rating	IP68
Insert Material	Polyetherimide, PEI
Material Flammability Rating	UL94 V-1
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	14
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Orientation	Keyed
Shell Material	Glass Filled, Nylon 6/6, Polyamide (PA66)
Shell Size - Insert Length	24 mm
Shell Size - Insert Width	14 mm
Shielding	Unshielded
Type	For Male Pins

HDP26 Series

Part	Type	Contact Type	Connector Type	Orientation	Contact Size	Housing Color	Shell Material	Primary Material	Shielding	Mounting Type	Material Flammability Rating	Ingress Protection Description	Ingress Protection IP Rating	Number of Positions	Features	Shell Size - Insert Width	Shell Size - Insert Length	Fastening Type	Mounting Feature	Insert Material	Note	Operating Temperature (Max)	Operating Temperature (Min)	Contact Shape	Shell Size - Insert (Minimum)	Shell Size - Insert (Maximum)
TE Connectivity AMP Connectors HDP24-24-21PE
TE Connectivity AMP Connectors HDP24-24-19SE-L015	For Female Sockets	Crimp	Receptacle Housing	Keyed	12 16	Black	Glass Filled Nylon 6/6 Polyamide (PA66)	Plastic	Unshielded	Panel Mount	UL94 V-1	Dust Tight Waterproof	IP67	19	Dust Cap Thread Adapter	19 mm	24 mm	Threaded	Bulkhead Front Side Nut	Nylon PA Polyamide	Contacts Not Included	125 °C	-55 °C	Circular
TE Connectivity AMP Connectors HDP26-18-20SE-L024	For Female Sockets	Crimp	Plug Housing	Keyed	16 20	Black	Glass Filled Nylon 6/6 Polyamide (PA66)	Plastic	Unshielded	Free Hanging (In-Line)	UL94 V-0	Dust Tight Waterproof	IP67	20	Coupling Nut			Bayonet Lock							18	20
TE Connectivity AMP Connectors HDP26-24-19PE-L015	For Male Pins	Crimp	Plug Housing	Keyed	12 16	Black	Glass Filled Nylon 6/6 Polyamide (PA66)	Plastic	Unshielded	Free Hanging (In-Line)	UL94 V-0	Dust Tight Waterproof	IP67	19	Coupling Nut Ring Adapter	19 mm	24 mm	Bayonet Lock
TE Connectivity AMP Connectors HDP24-24-23PN-L017	For Male Pins	Crimp	Receptacle Housing	Keyed	16 S	Black	Glass Filled Nylon 6/6 Polyamide (PA66)	Plastic	Unshielded	Panel Mount	UL94 V-1	Dust Tight Waterproof	IP67	23	Ring Adapter	23 mm	24 mm	Bayonet Lock	Bulkhead Front Side Nut
TE Connectivity AMP Connectors HDP26-24-19PE	For Male Pins	Crimp	Plug Housing	Keyed	12 16	Black	Glass Filled Nylon 6/6 Polyamide (PA66)		Unshielded	Free Hanging (In-Line)	UL94 V-1	Dust Tight Waterproof	IP68	19	Coupling Nut	19 mm	24 mm	Bayonet Lock		PEI Polyetherimide	Contacts Not Included	125 °C	-55 °C	Circular
TE Connectivity AMP Connectors HDP24-24-9PN-L015	For Male Pins	Crimp	Receptacle Housing	Keyed	4 8 12	Black	Glass Filled Nylon 6/6 Polyamide (PA66)	Plastic	Unshielded	Free Hanging (In-Line) Panel Mount	UL94 V-0	Dust Tight Waterproof	IP67	9	Backshell	9 mm	24 mm	Bayonet Lock	Bulkhead Front Side Nut
TE Connectivity AMP Connectors HDP26-24-31SE-L024	For Female Sockets	Crimp	Plug Housing	Keyed	16 S	Black Blue	Glass Filled Nylon 6/6 Polyamide (PA66)		Unshielded	Free Hanging (In-Line)		Dust Tight Waterproof	IP68	31	Coupling Nut Threading Adapter			Bayonet Lock		PEI Polyetherimide	Contacts Not Included	125 °C	-55 °C	Circular	24	31
TE Connectivity AMP Connectors HDP24-18-8PE-L017	For Male Pins	Crimp	Receptacle Housing	Keyed	12	Black Blue	Glass Filled Nylon 6/6 Polyamide (PA66)		Unshielded	Panel Mount	UL94 V-1	Dust Tight Waterproof	IP68	8	Ring Adapter	8 mm	18 mm	Bayonet Lock	Bulkhead Front Side Nut
TE Connectivity AMP Connectors HDP26-24-18SN-L017	For Female Sockets	Crimp	Plug Housing	Keyed	8 12 16	Black	Glass Filled Nylon 6/6 Polyamide (PA66)	Plastic	Unshielded	Free Hanging (In-Line)	UL94 V-0	Dust Tight Waterproof	IP67	18	Coupling Nut Ring Adapter	18 mm	24 mm	Bayonet Lock
