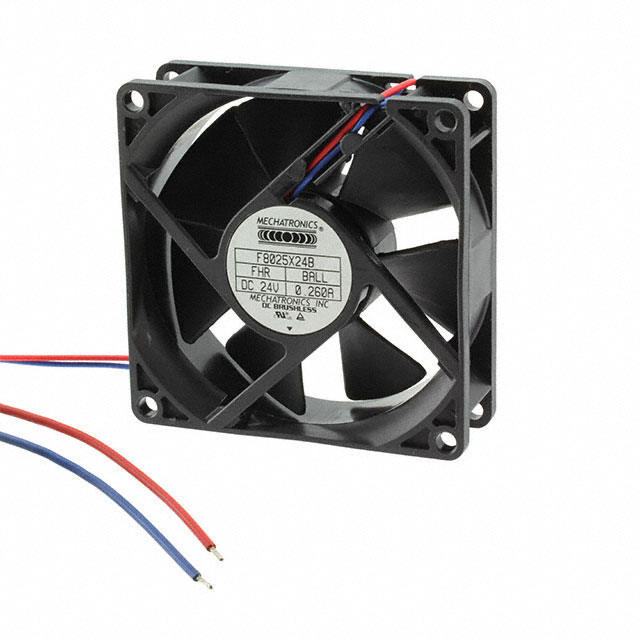

F8025X24B-FSR

Active

Mechatronics Fan Group

FAN AXIAL 80X25MM 24VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet AC/DC Fans & Blowers Catalog

F8025X24B-FSR

Active

Mechatronics Fan Group

FAN AXIAL 80X25MM 24VDC WIRE

Deep-Dive with AI

DocumentsDatasheet AC/DC Fans & Blowers Catalog

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 8.69

Description

General part information

F8025 Series

Fan Tubeaxial 24VDC Square - 80mm L x 80mm H Ball 51.0 CFM (1.43m³/min) 2 Wire Leads

Documents

Technical documentation and resources

Datasheet

AC/DC Fans & Blowers Catalog

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	F8025X24B-FSR	F8025 Series

Air Flow	1.43 mł/min	0.7 - 1.48 mł/min
Air Flow	51 CFM	25 - 53 CFM
Approval Agency	CE, cUL, TUV, UL	CE, cUL, TUV, UL
Bearing Type	Ball	Ball, Sleeve
Current Rating (Amps)	0.26 A	0.09 - 480 mA
Fan Type	Tubeaxial	Tubeaxial
Features	Locked Rotor Protection, Auto Restart	Speed Sensor (Tach), Thermal Overload Protector (TOP), Locked Rotor Protection, Auto Restart, Locked Rotor Sensor, Thermistor, Alarm Sensor, Conformal Coating, PWM Control
Ingress Protection	-	IP57 - Dust Protected, Waterproof
Material - Blade	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)
Noise	35 dB	20 - 39 dB
RPM	3200 RPM	1500 - 4200 RPM
Size / Dimension [x]	80 mm	80 mm
Size / Dimension [y]	80 mm	80 mm
Static Pressure	44.8 Pa	12.4 - 64.8 Pa
Static Pressure	0.18 in H2O	0.05 - 0.26 in H2O
Termination	2 Wire Leads	3 Wire Leads, 2 Wire Leads, 4 Wire Leads
Voltage - Rated	24 VDC	5 - 24 VDC
Weight	0.174 lb	0.174 - 0.182 lb
Weight	78.93 g	78.93 - 82.55 g
Width [y]	25 mm	25 mm

F8025 Series

FAN AXIAL 80X25MM 24VDC WIRE

Part	Termination	Current Rating (Amps)	Static Pressure	Static Pressure	Material - Blade	RPM	Noise	Weight	Weight	Air Flow	Air Flow	Bearing Type	Approval Agency	Features	Voltage - Rated	Size / Dimension [y]	Size / Dimension [x]	Width [y]	Fan Type	Ingress Protection
Mechatronics Fan Group F8025E24B1-FHR	3 Wire Leads	140 mA	0.21 in H2O	52.3 Pa	Polybutylene Terephthalate (PBT)	3600 RPM	35 dB	0.182 lb	82.55 g	1.29 mł/min	46 CFM	Ball	CE, cUL, TUV, UL	Speed Sensor (Tach), Thermal Overload Protector (TOP)	24 VDC	80 mm	80 mm	25 mm	Tubeaxial
Mechatronics Fan Group F8025X12B-FHR-EM	2 Wire Leads	480 mA	0.26 in H2O	64.8 Pa	Polybutylene Terephthalate (PBT)	4200 RPM	39 dB(A)	0.182 lb	82.55 g	1.48 mł/min	53 CFM	Ball	CE, cUL, TUV, UL	Thermal Overload Protector (TOP)	12 VDC	80 mm	80 mm	25 mm	Tubeaxial	IP57 - Dust Protected, Waterproof
Mechatronics Fan Group F8025X24B-FSR	2 Wire Leads	0.26 A	0.18 in H2O	44.8 Pa	Polybutylene Terephthalate (PBT)	3200 RPM	35 dB	0.174 lb	78.93 g	1.43 mł/min	51 CFM	Ball	CE, cUL, TUV, UL	Auto Restart, Locked Rotor Protection	24 VDC	80 mm	80 mm	25 mm	Tubeaxial
Mechatronics Fan Group F8025X24B2-FSR	3 Wire Leads	0.26 A	0.18 in H2O	44.8 Pa	Polybutylene Terephthalate (PBT)	3200 RPM	35 dB	0.174 lb	78.93 g	1.43 mł/min	51 CFM	Ball	CE, cUL, TUV, UL	Auto Restart, Locked Rotor Sensor	24 VDC	80 mm	80 mm	25 mm	Tubeaxial
Mechatronics Fan Group F8025M12B3-FSR	2 Wire Leads	120 mA	0.09 in H2O	22.4 Pa	Polybutylene Terephthalate (PBT)	2100 RPM	29 dB(A)	0.174 lb	78.93 g	0.952 m³/min	34 CFM	Ball	CE, cUL, TUV, UL	Auto Restart, Locked Rotor Protection, Thermistor	12 VDC	80 mm	80 mm	25 mm	Tubeaxial
Mechatronics Fan Group F8025X12B2-FHR	3 Wire Leads	480 mA	0.26 in H2O	64.8 Pa	Polybutylene Terephthalate (PBT)	4200 RPM	39 dB(A)	0.182 lb	82.55 g	1.48 mł/min	53 CFM	Ball	CE, cUL, TUV, UL	Locked Rotor Sensor, Thermal Overload Protector (TOP)	12 VDC	80 mm	80 mm	25 mm	Tubeaxial
Mechatronics Fan Group F8025H12B2-FHR	3 Wire Leads	0.145 A	0.17 in H2O	42.3 Pa	Polybutylene Terephthalate (PBT)	3200 RPM	32 dB	0.182 lb	82.55 g	1.12 mł/min	40 CFM	Ball	CE, cUL, TUV, UL	Locked Rotor Sensor, Thermal Overload Protector (TOP)	12 VDC	80 mm	80 mm	25 mm	Tubeaxial
Mechatronics Fan Group F8025X12B2-FSR	3 Wire Leads	480 mA	0.18 in H2O	44.8 Pa	Polybutylene Terephthalate (PBT)	3200 RPM	35 dB	0.174 lb	78.93 g	1.43 mł/min	51 CFM	Ball	CE, cUL, TUV, UL	Auto Restart, Locked Rotor Sensor	12 VDC	80 mm	80 mm	25 mm	Tubeaxial
Mechatronics Fan Group F8025E12B1-FHR	3 Wire Leads	0.24 A	0.21 in H2O	52.3 Pa	Polybutylene Terephthalate (PBT)	3600 RPM	35 dB	0.182 lb	82.55 g	1.29 mł/min	46 CFM	Ball	CE, cUL, TUV, UL	Speed Sensor (Tach), Thermal Overload Protector (TOP)	12 VDC	80 mm	80 mm	25 mm	Tubeaxial
Mechatronics Fan Group F8025X24B1-FSR-WS	4 Wire Leads	0.26 A	0.18 in H2O	44.8 Pa	Polybutylene Terephthalate (PBT)	3200 RPM	35 dB	0.174 lb	78.93 g	1.43 mł/min	51 CFM	Ball	CE, cUL, TUV, UL	Alarm Sensor, Auto Restart, Locked Rotor Protection, Speed Sensor (Tach)	24 VDC	80 mm	80 mm	25 mm	Tubeaxial
