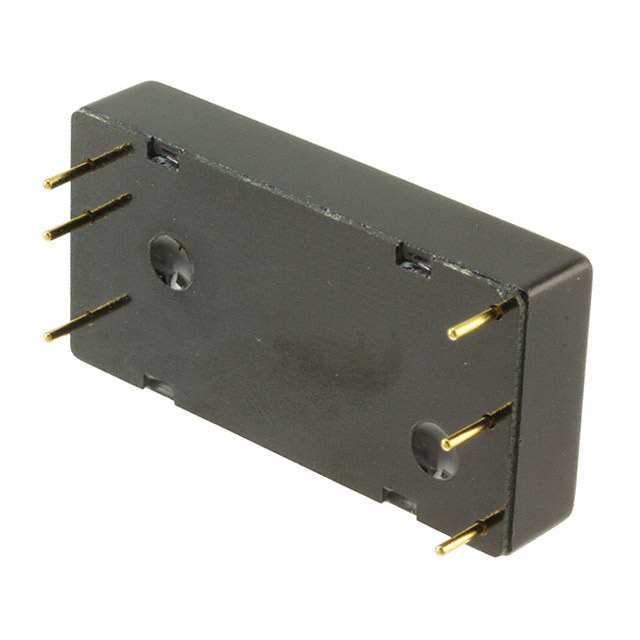

JWL4024S3V3
ActiveXP POWER
DC DC CONVERTER 3.3V 40W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
JWL4024S3V3
ActiveXP POWER
DC DC CONVERTER 3.3V 40W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | JWL4024S3V3 |
|---|---|
| Applications | ITE (Commercial) |
| Control Features | Active High, Enable |
| Current - Output (Max) [Max] | 8 A |
| Efficiency | 89 % |
| Features | Remote On/Off, SCP |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 6-DIP Module |
| Power (Watts) | 40 W |
| Size / Dimension [x] | 2 in |
| Size / Dimension [x] | 50.8 mm |
| Size / Dimension [y] | 25.4 mm |
| Size / Dimension [y] | 25.4 mm |
| Size / Dimension [z] | 0.4 " |
| Size / Dimension [z] | 10.2 mm |
| Standard Number | 62368-1 |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 36 V |
| Voltage - Input (Min) [Min] | 9 V |
| Voltage - Isolation | 1.5 kV |
| Voltage - Output 1 | 3.3 V |
JWL4024 Series
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Efficiency | Voltage - Isolation | Type | Voltage - Output 1 | Control Features | Voltage - Input (Min) [Min] | Power (Watts) | Current - Output (Max) [Max] | Mounting Type | Package / Case | Number of Outputs | Standard Number | Voltage - Input (Max) [Max] | Features | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
XP POWER | -40 °C | 105 ░C | 25.4 mm | 0.4 " | 2 in | 10.2 mm | 50.8 mm | 25.4 mm | 89 % | 1.5 kV | Isolated Module | 3.3 V | Active High Enable | 9 V | 40 W | 8 A | Through Hole | 6-DIP Module | 1 | 62368-1 | 36 V | Remote On/Off SCP | ITE (Commercial) |
XP POWER | -40 °C | 105 ░C | 25.4 mm | 0.4 " | 2 in | 10.2 mm | 50.8 mm | 25.4 mm | 90 % | 1.5 kV | Isolated Module | 5 V | Active High Enable | 9 V | 40 W | 8 A | Through Hole | 6-DIP Module | 1 | 62368-1 | 36 V | Remote On/Off SCP | ITE (Commercial) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 10 | $ 84.96 | |
Description
General part information
JWL4024 Series
Isolated Module DC DC Converter 1 Output 3.3V 8A 9V - 36V Input
