59K15R-001E3

Active

Rosenberger

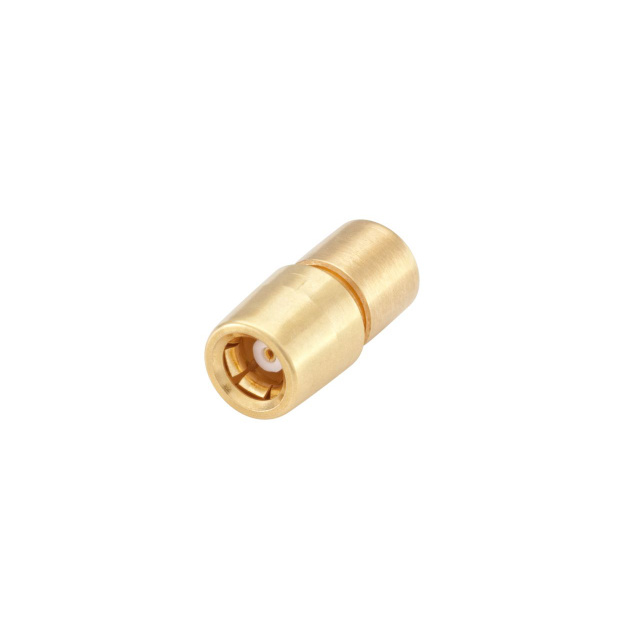

SMB TERMINATOR

Search across all available documentation for this part.

Active

Rosenberger

SMB TERMINATOR

Technical Specifications

Parameters and characteristics for this part

Specification	59K15R-001E3

Body Finish	Gold
Body Material	Brass
Connector Style	SMB
Connector Type	Male Pin, Jack
Contact Finish	Gold
Contact Material	Beryllium Copper
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	2 GHz
Impedance	50 Ohms
Mounting Type	Free Hanging, Cap

Part	Dielectric Material	Body Material	Connector Type	Impedance	Contact Material	Connector Style	Body Finish	Mounting Type	Frequency - Max [Max]	Contact Finish
Rosenberger 59K15R-001E3	Polytetrafluoroethylene (PTFE)	Brass	Jack Male Pin	50 Ohms	Beryllium Copper	SMB	Gold	Cap Free Hanging	2 GHz	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	20	$ 56.71

General part information

Terminator Coax Connector Jack, Male Pin SMB 50 Ohms

Technical documentation and resources

No documents available
