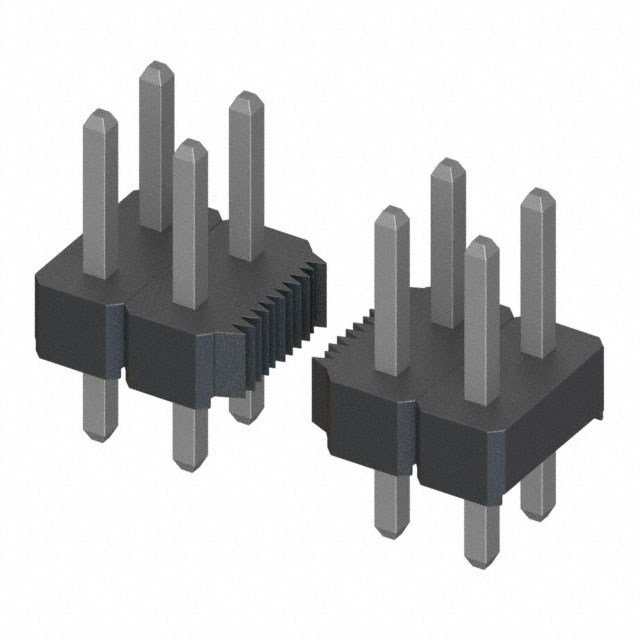

M22-2521546

Active

Harwin Inc.

15+15 POS. MALE DIL VERTICAL THROUGHBOARD CONN. ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsM20-003 M22 Series Spec Sheet +1

M22-2521546

Active

Harwin Inc.

15+15 POS. MALE DIL VERTICAL THROUGHBOARD CONN. ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsM20-003 M22 Series Spec Sheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M22-2521546

Connector Type	Cuttable, Header
Contact Finish - Post	Tin
Contact Length - Mating	0.138 in
Contact Length - Mating	3.5 mm
Contact Length - Post	0.091 in
Contact Length - Post	2.3 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	1 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	1.5 mm
Insulation Height	0.059 "
Insulation Material	Nylon 6T, Polyamide (PA6T)
Mated Stacking Heights	5.9 mm, 8.6 mm, 3.8 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	30
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Overall Contact Length	7.3 mm
Overall Contact Length	0.287 in
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Unshrouded
Termination	Solder

M22-252 Series

Part	Contact Material	Current Rating (Amps)	Contact Shape	Termination	Contact Finish - Mating	Number of Rows	Contact Type	Number of Positions Loaded	Insulation Color	Row Spacing - Mating	Row Spacing - Mating	Mounting Type	Insulation Material	Connector Type	Fastening Type	Shrouding	Number of Positions	Contact Length - Post	Contact Length - Post	Overall Contact Length	Overall Contact Length	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Mating	Contact Length - Mating	Mated Stacking Heights	Material Flammability Rating	Pitch - Mating [x]	Pitch - Mating [x]	Insulation Height	Insulation Height	Contact Finish - Post
Harwin Inc. M22-2520605	Phosphor Bronze	1 A	Square	Solder	Gold	2	Male Pin	All	Black	0.079 in	2 mm	Through Hole	Nylon 6T Polyamide (PA6T)	Cuttable Header	Push-Pull	Unshrouded	12	0.091 in	2.3 mm	7.3 mm	0.287 in	-40 °C	105 ░C	0.138 in	3.5 mm	3.8 mm 5.9 mm 8.6 mm	UL94 V-0	0.079 in	2 mm	1.5 mm	0.059 "
Harwin Inc. M22-2521046	Phosphor Bronze	1 A	Square	Solder		2	Male Pin	All	Black	0.079 in	2 mm	Through Hole	Nylon 6T Polyamide (PA6T)	Cuttable Header	Push-Pull	Unshrouded	20	0.091 in	2.3 mm	7.3 mm	0.287 in	-40 °C	105 ░C	0.138 in	3.5 mm	3.8 mm 5.9 mm 8.6 mm	UL94 V-0	0.079 in	2 mm	1.5 mm	0.059 "	Tin
Harwin Inc. M22-2521546	Phosphor Bronze	1 A	Square	Solder		2	Male Pin	All	Black	0.079 in	2 mm	Through Hole	Nylon 6T Polyamide (PA6T)	Cuttable Header	Push-Pull	Unshrouded	30	0.091 in	2.3 mm	7.3 mm	0.287 in	-40 °C	105 ░C	0.138 in	3.5 mm	3.8 mm 5.9 mm 8.6 mm	UL94 V-0	0.079 in	2 mm	1.5 mm	0.059 "	Tin
Harwin Inc. M22-2521005	Phosphor Bronze	1 A	Square	Solder	Gold	2	Male Pin	All	Black	0.079 in	2 mm	Through Hole	Nylon 6T Polyamide (PA6T)	Cuttable Header	Push-Pull	Unshrouded	20	0.091 in	2.3 mm	7.3 mm	0.287 in	-40 °C	105 ░C	0.138 in	3.5 mm	3.8 mm 5.9 mm 8.6 mm	UL94 V-0	0.079 in	2 mm	1.5 mm	0.059 "
Harwin Inc. M22-2521205	Phosphor Bronze	1 A	Square	Solder	Gold	2	Male Pin	All	Black	0.079 in	2 mm	Through Hole	Nylon 6T Polyamide (PA6T)	Cuttable Header	Push-Pull	Unshrouded	24	0.091 in	2.3 mm	7.3 mm	0.287 in	-40 °C	105 ░C	0.138 in	3.5 mm	3.8 mm 5.9 mm 8.6 mm	UL94 V-0	0.079 in	2 mm	1.5 mm	0.059 "
Harwin Inc. M22-2520205	Phosphor Bronze	1 A	Square	Solder	Gold	2	Male Pin	All	Black	0.079 in	2 mm	Through Hole	Nylon 6T Polyamide (PA6T)	Cuttable Header	Push-Pull	Unshrouded	4	0.091 in	2.3 mm	7.3 mm	0.287 in	-40 °C	105 ░C	0.138 in	3.5 mm	3.8 mm 5.9 mm 8.6 mm	UL94 V-0	0.079 in	2 mm	1.5 mm	0.059 "
Harwin Inc. M22-2520505	Phosphor Bronze	1 A	Square	Solder	Gold	2	Male Pin	All	Black	0.079 in	2 mm	Through Hole	Nylon 6T Polyamide (PA6T)	Cuttable Header	Push-Pull	Unshrouded	10	0.091 in	2.3 mm	7.3 mm	0.287 in	-40 °C	105 ░C	0.138 in	3.5 mm	3.8 mm 5.9 mm 8.6 mm	UL94 V-0	0.079 in	2 mm	1.5 mm	0.059 "
Harwin Inc. M22-2520305	Phosphor Bronze	1 A	Square	Solder	Gold	2	Male Pin	All	Black	0.079 in	2 mm	Through Hole	Nylon 6T Polyamide (PA6T)	Cuttable Header	Push-Pull	Unshrouded	6	0.091 in	2.3 mm	7.3 mm	0.287 in	-40 °C	105 ░C	0.138 in	3.5 mm	3.8 mm 5.9 mm 8.6 mm	UL94 V-0	0.079 in	2 mm	1.5 mm	0.059 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.56
		10	$ 1.32
		200	$ 1.07
		600	$ 0.99
		1000	$ 0.96
		5000	$ 0.85
		10000	$ 0.81
Newark	Each	1000	$ 1.01

Description

General part information

M22-252 Series

Connector Header Through Hole 30 position 0.079" (2.00mm)

Documents

Technical documentation and resources

M20-003

M22 Series Spec Sheet

Datasheet
