L717TWB17W2P

Active

Amphenol ICC (Commercial Products)

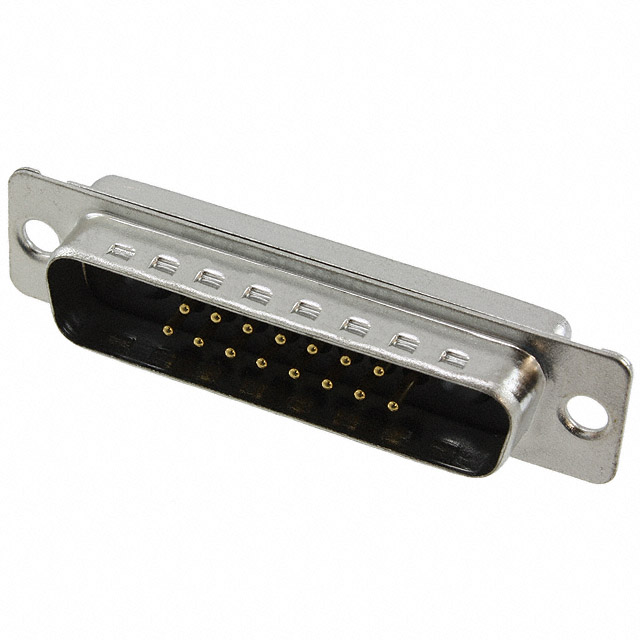

CONN D-SUB PLUG 17POS PNL MNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

L717TWB17W2P

Active

Amphenol ICC (Commercial Products)

CONN D-SUB PLUG 17POS PNL MNT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	L717TWB17W2P

Color	Black
Connector Style	D-Sub, Combo
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	16 µin
Contact Finish Thickness	0.41 µm
Contact Material	Brass
Current Rating (Amps)	7.5 A
Dielectric Material	Thermoplastic, Glass Filled
Features	Grounding Indents
Flange Feature	Housing/Shell (Unthreaded)
Number of Positions	17
Number of Rows	2
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout	17W2, 3 (DB, B)
Voltage Rating	300 VDC

L717TWB17 Series

Part	Contact Finish	Termination	Shell Size, Connector Layout	Mounting Type	Dielectric Material	Voltage Rating	Current Rating (Amps)	Flange Feature	Operating Temperature [Max]	Operating Temperature [Min]	Contact Type	Connector Style	Contact Finish Thickness	Contact Finish Thickness	Color	Number of Positions [custom]	Number of Positions [custom]	Features	Connector Type	Contact Material	Number of Rows	Number of Positions [custom]	Number of Positions [custom]	Backset Spacing	Backset Spacing	Number of Positions
Amphenol ICC (Commercial Products) L717TWB17W2PP2SYRM54	Gold	Solder	17W2 3 (DB B)	Panel Mount Through Hole	Thermoplastic	300 VDC	7.5 A	4-40 Board Side	155 °C	-55 °C	Signal and Power	Combo D-Sub	16 µin	0.41 µm	Black	15	2	Board Lock Grounding Indents	Male Pins Plug	Brass	2
Amphenol ICC (Commercial Products) L717TWB17W2PCSYRM54	Gold	Solder	17W2 3 (DB B)	Panel Mount Through Hole	Thermoplastic	150 VDC 300 VDC	0.5 A 7.5 A	4-40 Board Side	155 °C	-55 °C	Coax Signal	Combo D-Sub	16 µin	0.41 µm	Black	15		Board Lock Grounding Indents Shielded	Male Pins Plug	Brass	2	2	17
Amphenol ICC (Commercial Products) L717TWB17W2PMP2SV4RRM6	Gold	Solder	17W2 3 (DB B)	Panel Mount Right Angle Through Hole	Thermoplastic	300 VDC	7.5 A	4-40 Board Side	155 °C	-55 °C	Signal and Power	Combo D-Sub	16 µin	0.41 µm	Black	15	2	Board Lock Grounding Indents Mounting Brackets	Male Pins Plug	Brass	2			0.319 in	8.1 mm
Amphenol ICC (Commercial Products) L717TWB17W2P	Gold		17W2 3 (DB B)		Thermoplastic Glass Filled	300 VDC	7.5 A	Housing/Shell (Unthreaded)	155 °C	-55 °C		Combo D-Sub	16 µin	0.41 µm	Black			Grounding Indents	Male Pins Plug	Brass	2					17
Amphenol ICC (Commercial Products) L717TWB17W2PP3SYRM54	Gold	Solder	17W2 3 (DB B)	Panel Mount Through Hole	Thermoplastic	300 VDC	7.5 A	4-40 Board Side	155 °C	-55 °C	Signal and Power	Combo D-Sub	16 µin	0.41 µm	Black	15	2	Board Lock Grounding Indents	Male Pins Plug	Brass	2
Amphenol ICC (Commercial Products) L717TWB17W2PHCSV	Gold	Solder	17W2 3 (DB B)	Panel Mount Right Angle Through Hole	Thermoplastic	300 VDC		Housing/Shell (Unthreaded)	155 °C	-55 °C	Coax Signal	Combo D-Sub	16 µin	0.41 µm	Black	15		Grounding Indents	Male Pins Plug	Brass	2	2	17	0.406 in	10.3 mm
Amphenol ICC (Commercial Products) L717TWB17W2PHCSV4RRM6	Gold	Solder	17W2 3 (DB B)	Panel Mount Right Angle Through Hole	Thermoplastic	300 VDC		4-40 Board Side	155 °C	-55 °C	Coax Signal	Combo D-Sub	16 µin	0.41 µm	Black	15		Board Lock Grounding Indents Mounting Brackets	Male Pins Plug	Brass	2	2	17	0.406 in	10.3 mm
Amphenol ICC (Commercial Products) L717TWB17W2PEP3SV3FRM6	Gold	Solder	17W2 3 (DB B)	Panel Mount Right Angle Through Hole	Thermoplastic	300 VDC	7.5 A	Female Screwlock (M3) Mating Side	155 °C	-55 °C	Signal and Power	Combo D-Sub	16 µin	0.41 µm	Black	15	2	Board Lock Grounding Indents Mounting Brackets	Male Pins Plug	Brass	2			0.406 in	10.3 mm
Amphenol ICC (Commercial Products) L717TWB17W2PMCSV4RRM6	Gold	Solder	17W2 3 (DB B)	Panel Mount Right Angle Through Hole	Thermoplastic	300 VDC		4-40 Board Side	155 °C	-55 °C	Coax Signal	Combo D-Sub	16 µin	0.41 µm	Black	15		Board Lock Grounding Indents Mounting Brackets	Male Pins Plug	Brass	2	2	17	0.319 in	8.1 mm
Amphenol ICC (Commercial Products) L717TWB17W2PEP3SV	Gold	Solder	17W2 3 (DB B)	Panel Mount Right Angle Through Hole	Thermoplastic	300 VDC	7.5 A	Housing/Shell (Unthreaded)	155 °C	-55 °C	Signal and Power	Combo D-Sub	16 µin	0.41 µm	Black	15	2	Grounding Indents	Male Pins Plug	Brass	2			0.406 in	10.3 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 7.94
		10	$ 7.04
		25	$ 6.77
		50	$ 6.50
		100	$ 6.36

Description

General part information

L717TWB17 Series

17 (15 + 2 Coax or Power) Position D-Sub, Combo Plug, Male Pins Connector
