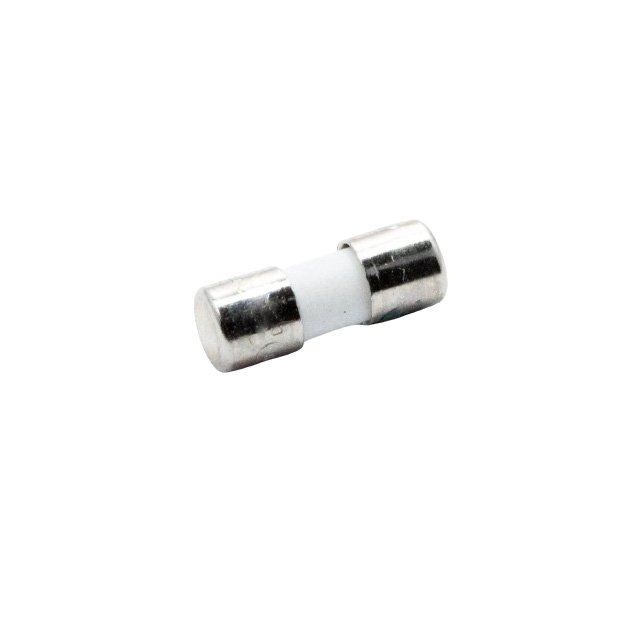

FCF-1A
ActiveOptiFuse
FUSE CERAMIC 1A 250VAC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
FCF-1A
ActiveOptiFuse
FUSE CERAMIC 1A 250VAC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | FCF-1A |
|---|---|
| Approval Agency | UL 248, cULus |
| Breaking Capacity @ Rated Voltage | 50 A |
| Current Rating (Amps) | 1 A |
| Fuse Type | Cartridge, Ceramic |
| Melting I˛t | 0.3606 |
| Mounting Type | Requires Holder |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Cartridge, Non-Standard |
| Response Time | Fast Blow |
| Size / Dimension [diameter] | 0.142 in |
| Size / Dimension [diameter] | 3.6 mm |
| Size / Dimension [x] | 0.394 " |
| Size / Dimension [x] | 10 mm |
| Voltage Rating - AC | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.99 | |
| 10 | $ 0.95 | |||
| 25 | $ 0.93 | |||
| 50 | $ 0.78 | |||
| 100 | $ 0.64 | |||
| 250 | $ 0.58 | |||
| 500 | $ 0.49 | |||
| 1000 | $ 0.42 | |||
Description
General part information
FCF Series
1 A 250 V AC DC Fuse Cartridge, Ceramic Requires Holder Cartridge, Non-Standard
