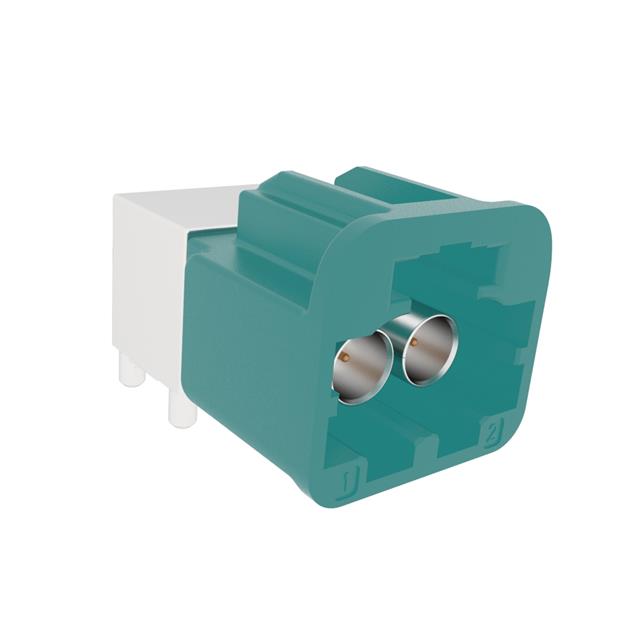

FM2-NZRP-PCB-1

Active

AMPHENOL RF

AUTOMATE TYPE A MINI-FAKRA DUAL

Search across all available documentation for this part.

Active

AMPHENOL RF

AUTOMATE TYPE A MINI-FAKRA DUAL

Technical Specifications

Parameters and characteristics for this part

Specification	FM2-NZRP-PCB-1

Body Finish	Tin
Body Material	Zinc Alloy
Center Contact Material	Copper Alloy
Center Contact Plating	Gold
Connector Style	Fakra, Miniature Coaxial, Twinaxial
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Liquid Crystal Polymer (LCP)
Fastening Type	Latch Lock
Features	Code Z
Frequency - Max [Max]	9 GHz
Impedance	50 Ohms
Mating Cycles	25
Mounting Type	Through Hole, Right Angle
Number of Ports	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Shield Termination	Solder
Voltage Rating	335 V

AUTOMATE TYPE A MINI-FAKRA DUAL

Part	Body Material	Center Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Termination	Impedance	Connector Type	Fastening Type	Body Finish	Dielectric Material	Mounting Type	Connector Style	Mating Cycles	Number of Ports	Center Contact Plating	Features	Frequency - Max [Max]	Voltage Rating	Shield Termination
AMPHENOL RF FM2-NZRP-PCB-1	Zinc Alloy	Copper Alloy	-40 °C	105 ░C	Solder	50 Ohms	Male Pin, Plug	Latch Lock	Tin	Liquid Crystal Polymer (LCP)	Through Hole, Right Angle	Fakra, Miniature Coaxial, Twinaxial	25	1	Gold	Code Z	9 GHz	335 V	Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Miniature Coaxial, Fakra, Twinaxial Connector Plug, Male Pin 50 Ohms Through Hole, Right Angle Solder
