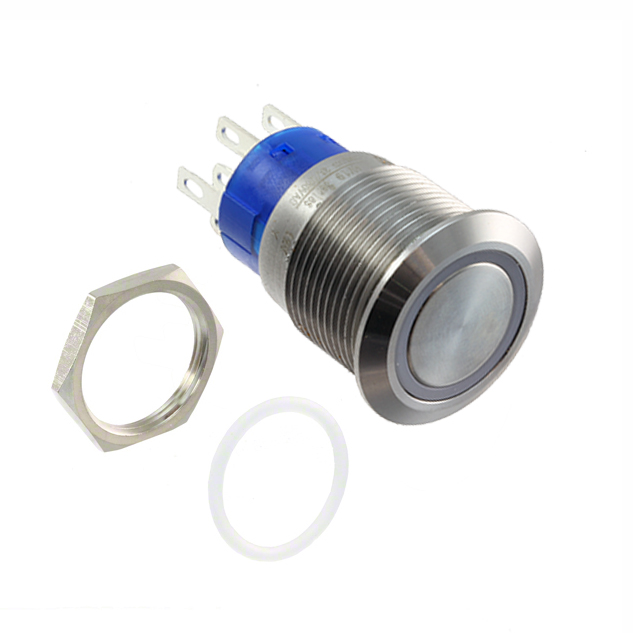

AV1910R624R04

Active

TE Connectivity Raychem Cable Protection

SWITCH PUSHBUTTON SPDT 0.4VA 20V

Deep-Dive with AI

Search across all available documentation for this part.

AV1910R624R04

Active

TE Connectivity Raychem Cable Protection

SWITCH PUSHBUTTON SPDT 0.4VA 20V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AV1910R624R04

Actuator Marking	No Marking
Actuator Type	Flush, Button, Round
Circuit	SPDT
Color - Actuator/Cap	Silver
Current Rating (Amps)	0.4 VA
Electrical Life	50000 Cycles
Features	Fixed LED Ring
Illumination Type, Color	LED, Green
Illumination Voltage (Nominal)	24 V
Ingress Protection	IP67 - Dust Tight, Waterproof
Mechanical Life	1000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions [diameter]	19.2 mm
Switch Function	On-Mom
Termination Style	Solder Lug
Type	Anti-Vandal, Illuminated
Voltage Rating - AC	20 V
Voltage Rating - DC	20 V

ALCOSWITCH AV19 Series

...

Part	Illumination Voltage (Nominal)	Operating Temperature [Max]	Operating Temperature [Min]	Panel Cutout Dimensions [diameter]	Features	Circuit	Type	Electrical Life	Mounting Type	Voltage Rating - DC	Current Rating (Amps)	Actuator Marking	Illumination Type, Color	Ingress Protection	Switch Function	Color - Actuator/Cap	Actuator Type	Termination Style	Voltage Rating - AC	Mechanical Life
TE Connectivity Raychem Cable Protection AV1910R624R04	24 V	55 °C	-20 C	19.2 mm	Fixed LED Ring	SPDT	Anti-Vandal Illuminated	50000 Cycles	Panel Mount Front	20 V	0.4 VA	No Marking	Green LED	IP67 - Dust Tight Waterproof	On-Mom	Silver	Button Flush Round	Solder Lug	20 V	1000000 Cycles
TE Connectivity Raychem Cable Protection AV1921R124R04	24 V	55 °C	-20 C	19.2 mm	Fixed LED Ring	DPDT	Anti-Vandal Illuminated	50000 Cycles	Panel Mount Front	20 V	0.4 VA	No Marking	LED White	IP67 - Dust Tight Waterproof	On-On	Silver	Button Flush Round	Solder Lug	20 V	500000 Cycles
TE Connectivity Raychem Cable Protection AV1920PB24T5Q04	24 V	55 °C	-20 C	19.2 mm		DPDT	Anti-Vandal Illuminated	50000 Cycles	Panel Mount Front		3 A	Power Symbol	Blue/Red LED	IP67 - Dust Tight Waterproof	On-Mom	Silver	Button Flush Round	Wire Leads	250 V	1000000 Cycles
TE Connectivity Raychem Cable Protection AV1911E612Q04	12 VDC	55 °C	-20 C	19.2 mm		SPDT	Anti-Vandal Illuminated	50000 Cycles	Panel Mount Front		3 A	No Marking	Green LED	IP67 - Dust Tight Waterproof	On-On	Silver	Button Flush Round	Solder Lug	250 V	500000 Cycles
TE Connectivity Raychem Cable Protection AV1920DG12Q04	12 VDC	55 °C	-20 C	19.2 mm	Spot LED	DPDT	Anti-Vandal Illuminated	50000 Cycles	Panel Mount Front		3 A	No Marking	LED Red/Yellow	IP67 - Dust Tight Waterproof	On-Mom	Silver	Button Flush Round	Solder Lug	250 V	1000000 Cycles
TE Connectivity Raychem Cable Protection AV1910D612Q04	12 VDC	55 °C	-20 C	19.2 mm	Spot LED	SPDT	Anti-Vandal Illuminated	50000 Cycles	Panel Mount Front		3 A	No Marking	Green LED	IP67 - Dust Tight Waterproof	On-Mom	Silver	Button Flush Round	Solder Lug	250 V	1000000 Cycles
TE Connectivity Raychem Cable Protection AV1920DG24T5Q04	24 V	55 °C	-20 C	19.2 mm	Spot LED	DPDT	Anti-Vandal Illuminated	50000 Cycles	Panel Mount Front		3 A	No Marking	LED Red/Yellow	IP67 - Dust Tight Waterproof	On-Mom	Silver	Button Flush Round	Wire Leads	250 V	1000000 Cycles
TE Connectivity Raychem Cable Protection AV1920E624Q04	24 V	55 °C	-20 C	19.2 mm		DPDT	Anti-Vandal Illuminated	50000 Cycles	Panel Mount Front		3 A	No Marking	Green LED	IP67 - Dust Tight Waterproof	On-Mom	Silver	Button Flush Round	Solder Lug	250 V	1000000 Cycles
TE Connectivity Raychem Cable Protection AV1920P612Q04	12 VDC	55 °C	-20 C	19.2 mm		DPDT	Anti-Vandal Illuminated	50000 Cycles	Panel Mount Front		3 A	Power Symbol	Green LED	IP67 - Dust Tight Waterproof	On-Mom	Silver	Button Flush Round	Solder Lug	250 V	1000000 Cycles
TE Connectivity Raychem Cable Protection AV1920R724R04	24 V	55 °C	-20 C	19.2 mm	Fixed LED Ring	DPDT	Anti-Vandal Illuminated	50000 Cycles	Panel Mount Front	20 V	0.4 VA	No Marking	Blue LED	IP67 - Dust Tight Waterproof	On-Mom	Silver	Button Flush Round	Solder Lug	20 V	1000000 Cycles

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	100	$ 15.14

Description

General part information

ALCOSWITCH AV19 Series

Pushbutton Switch SPDT Anti-Vandal, Illuminated Panel Mount, Front
