ESG226M400AM5AA

Active

KEMET

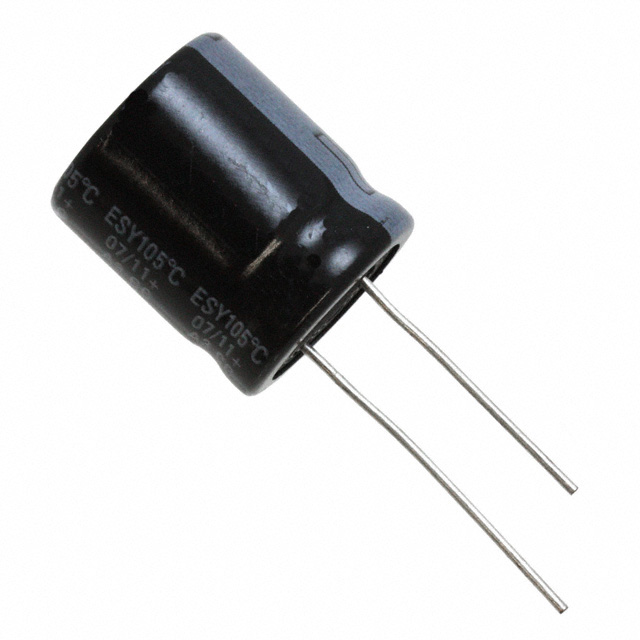

CAP ALUM 22UF 20% 400V RADIAL TH

Search across all available documentation for this part.

Active

KEMET

CAP ALUM 22UF 20% 400V RADIAL TH

Technical Specifications

Parameters and characteristics for this part

Specification	ESG226M400AM5AA

Applications	General Purpose
Capacitance	22 µF
ESR (Equivalent Series Resistance)	1 Ohm
Height - Seated (Max) [Max] [z]	22 mm
Height - Seated (Max) [Max] [z]	0.866 in
Lead Spacing	7.5 mm
Lead Spacing	0.295 in
Lifetime @ Temp.	5000 Hrs
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Package / Case	Radial, Can
Polarization	Polar
Ripple Current @ High Frequency	320 mA
Ripple Current @ Low Frequency	200 mA
Size / Dimension [diameter]	0.63 in
Size / Dimension [diameter]	16 mm
Tolerance	20 %
Voltage - Rated	400 V

Part	Capacitance	Ripple Current @ Low Frequency	Tolerance	Size / Dimension [diameter]	Size / Dimension [diameter]	Ripple Current @ High Frequency	Voltage - Rated	Lead Spacing	Lead Spacing	ESR (Equivalent Series Resistance)	Applications	Polarization	Lifetime @ Temp.	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Impedance
KEMET ESG226M400AM5AA	22 µF	200 mA	20 %	0.63 in	16 mm	320 mA	400 V	7.5 mm	0.295 in	1 Ohm	General Purpose	Polar	5000 Hrs	22 mm	0.866 in	Radial Can	-40 °C	105 ░C	Through Hole
KEMET ESG226M400AL4AA	22 µF	170 mA	20 %	0.512 in	13 mm	272 mA	400 V	5 mm	0.197 in	1.35 Ohm	General Purpose	Polar	5000 Hrs	27 mm	1.063 in	Radial Can	-40 °C	105 ░C	Through Hole	1.35 Ohms
KEMET ESG226M250AL3AA	22 µF	160 mA	20 %	0.512 in	13 mm	256 mA	250 V	5 mm	0.197 in	2.5 Ohm	General Purpose	Polar	5000 Hrs	22 mm	0.866 in	Radial Can	-40 °C	105 ░C	Through Hole	2.5 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

22 µF 400 V Aluminum Electrolytic Capacitors Radial, Can 1Ohm @ 100kHz 5000 Hrs @ 105°C
