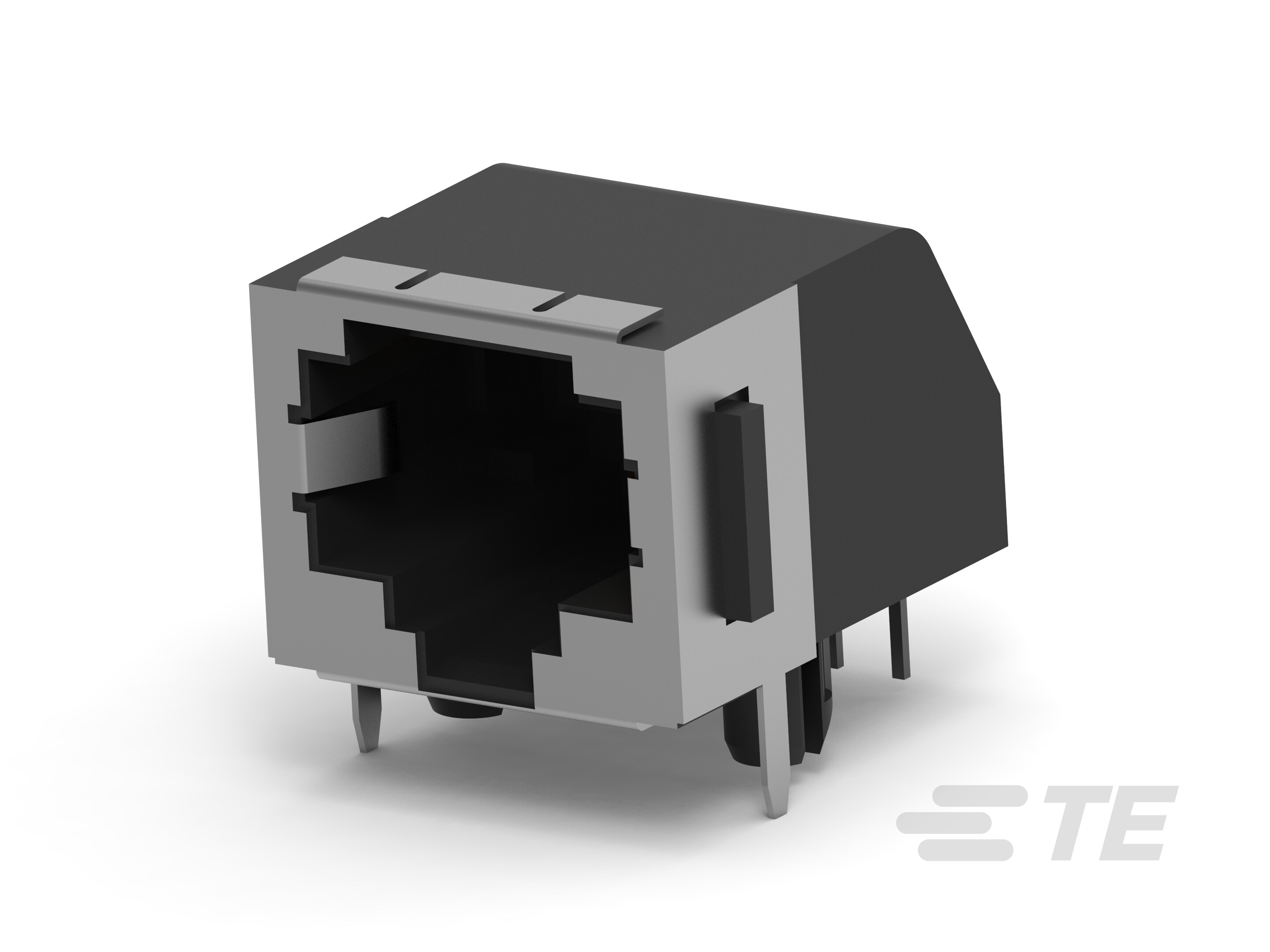

Specification	5555153-3

Connector Type	Ethernet, RJ45, Jack
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Material	Phosphor Bronze
Features	Board Lock, Panel Stops
Housing Material	PBT, Polybutylene Terephthalate, Polyester
LED Color	Does Not Contain LED
Mounting Type	Through Hole
Number of Contacts	8
Number of Ports	1
Number of Positions	8
Number of Rows	1
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Orientation Angle	90 °
Orientation Direction	Right
Ratings	Cat3
Shielding	Shielded
Tab Direction	Down
Termination	Solder

5555153 Series

Part	Number of Rows	Shielding	Contact Material	LED Color	Number of Positions	Connector Type	Number of Contacts	Contact Finish	Tab Direction	Orientation Angle	Orientation Direction	Termination	Mounting Type	Number of Ports	Ratings	Features	Housing Material	Contact Finish Thickness	Operating Temperature (Min)	Operating Temperature (Max)
TE Connectivity AMP Connectors 5555153-1	1	Shielded	Phosphor Bronze	Does Not Contain LED	8	Ethernet Jack RJ45	8	Gold	Down	90 °	Right	Solder	Through Hole	1	Cat3	Board Lock Panel Stops	PBT Polybutylene Terephthalate Polyester	50 µin	-40 °C	85 °C
TE Connectivity AMP Connectors 5555153-5	1	Shielded	Phosphor Bronze	Does Not Contain LED	8	Ethernet Jack RJ45	8	Gold	Down	90 °	Right	Solder	Through Hole	1	Cat3	Board Lock Panel Stops	PBT Polybutylene Terephthalate Polyester	50 µin	-40 °C	85 °C
TE Connectivity AMP Connectors 5555153-6	1	Shielded	Phosphor Bronze	Does Not Contain LED	8	Ethernet Jack RJ45	8	Gold	Down	90 °	Right	Solder	Through Hole	1	Cat3	Board Lock Panel Stops	PBT Polybutylene Terephthalate Polyester	50 µin	-40 °C	85 °C
TE Connectivity AMP Connectors 5555153-3	1	Shielded	Phosphor Bronze	Does Not Contain LED	8	Ethernet Jack RJ45	8	Gold	Down	90 °	Right	Solder	Through Hole	1	Cat3	Board Lock Panel Stops	PBT Polybutylene Terephthalate Polyester	50 µin	-40 °C	85 °C
