3011043M000R-CEE(R)
ActiveGlobTek, Inc.
CORD 14AWG NEMA 5-15P-1 RG 9.84'
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
3011043M000R-CEE(R)
ActiveGlobTek, Inc.
CORD 14AWG NEMA 5-15P-1 RG 9.84'
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 3011043M000R-CEE(R) |
|---|---|
| 1st Connector | NEMA 5-15P |
| 2nd Connector | 1 Ferrule, 2 |
| Approval Agency Marking | CSA, UL |
| Approved Countries | United States, Canada |
| Color | Black |
| Cord Type | SJT |
| Current Rating (Amps) | 15 A |
| Length [x] | 9.84 ft |
| Length [x] | 3 m |
| Number of Conductors | 3 |
| Operating Temperature | 105 C |
| Shielding | Unshielded |
| Style | Male Pins (Blades) to Leads |
| Voltage Rating | 125 VAC |
| Wire Gauge | 13.5 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 14.57 | |
| 10 | $ 12.38 | |||
| 25 | $ 11.60 | |||
| 50 | $ 11.05 | |||
| 100 | $ 10.52 | |||
| 300 | $ 9.74 | |||
| 500 | $ 9.39 | |||
| 1000 | $ 8.95 | |||
Description
General part information
3011043 Series

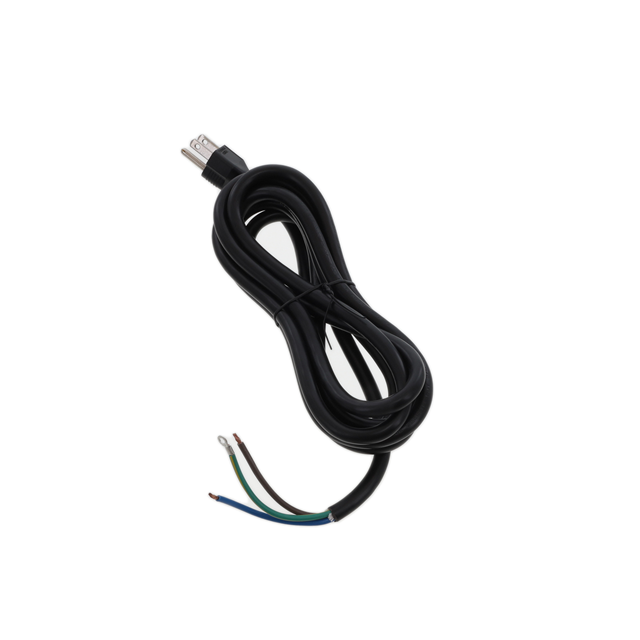

9.84' (3.00m) Power Cord Black NEMA 5-15P To 1 Ring Terminal, 2 Wire Leads SJT
