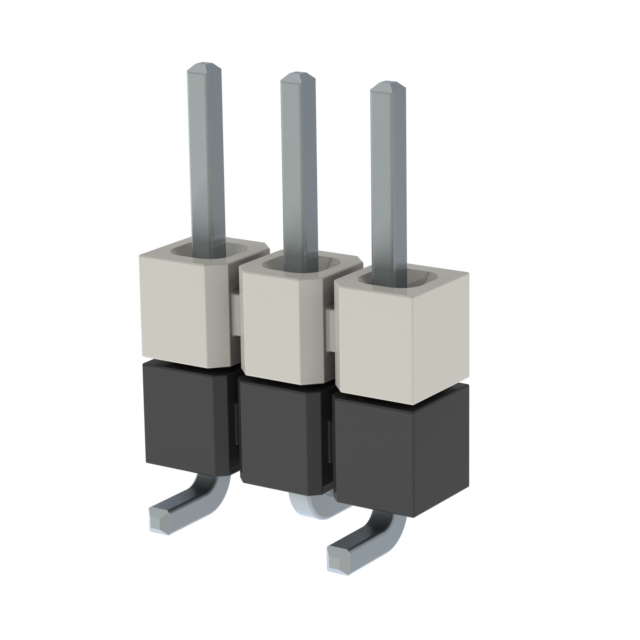

HW-03-16-T-S-250-SM

Active

Samtec Inc.

CONN HDR 3POS 0.1 STACK SMD TIN

Search across all available documentation for this part.

Active

Samtec Inc.

CONN HDR 3POS 0.1 STACK SMD TIN

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Length - Overall Pin [x]	Length - Overall Pin [x]	Number of Positions	Color	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Number of Rows	Termination	Row Spacing [x]	Row Spacing	Length - Stack Height [x]	Length - Stack Height [x]	Pitch [x]	Pitch [x]	Contact Finish - Post (Mating)	Contact Finish Thickness - Post (Mating)	Contact Finish Thickness - Post (Mating)	Length - Stack Height [z]	Length - Stack Height [z]	Length - Stack Height [custom]	Length - Stack Height [custom]
Samtec Inc. HW-03-16-G-D-250-SM-LC	Surface Mount	0.38 in	9.65 mm	6	Black	3.302 mm	0.13 in	2	Solder	0.1 in	2.54 mm	0.25 in	6.35 mm	2.54 mm	0.1 in	Gold	0.25 Ám	10 Áin
Samtec Inc. HW-03-16-T-S-285-SM	Surface Mount	0.38 in	9.65 mm		Black	2.413 mm	0.095 in	1	Solder					2.54 mm	0.1 in	Tin			7.239 mm	0.285 in
Samtec Inc. HW-03-16-T-S-250-SM	Surface Mount	0.38 in	9.65 mm		Black	3.302 mm	0.13 in	1	Solder			0.25 in	6.35 mm	2.54 mm	0.1 in	Tin
Samtec Inc. HW-03-16-L-D-256-SM-A	Surface Mount	0.38 in	9.65 mm	6	Black	3.15 mm	0.124 in	2	Solder	0.1 in	2.54 mm	0.256 in	6.502 mm	2.54 mm	0.1 in	Gold	0.25 Ám	10 Áin
Samtec Inc. HW-03-16-F-D-380-SM	Surface Mount	0.38 in	9.65 mm	6	Black			2	Solder	0.1 in	2.54 mm	0.38 in	9.652 mm	2.54 mm	0.1 in	Gold	0.076 Ám	3 Áin
Samtec Inc. HW-03-16-F-D-290-SM	Surface Mount	0.38 in	9.65 mm	6	Black	2.286 mm	0.09 in	2	Solder	0.1 in	2.54 mm	0.29 in	7.366 mm	2.54 mm	0.1 in	Gold	0.076 Ám	3 Áin
Samtec Inc. HW-03-16-S-D-283-SM-A	Surface Mount	0.38 in	9.65 mm	6	Black	2.464 mm	0.097 in	2	Solder	0.1 in	2.54 mm			2.54 mm	0.1 in	Gold	0.76 µm	30 µin			0.283 in	7.188 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.52

General part information

3 Position Header Spacer Connector 0.100" (2.54mm) Tin Surface Mount
