10118192-0002LF

Active

Amphenol ICC (FCI)

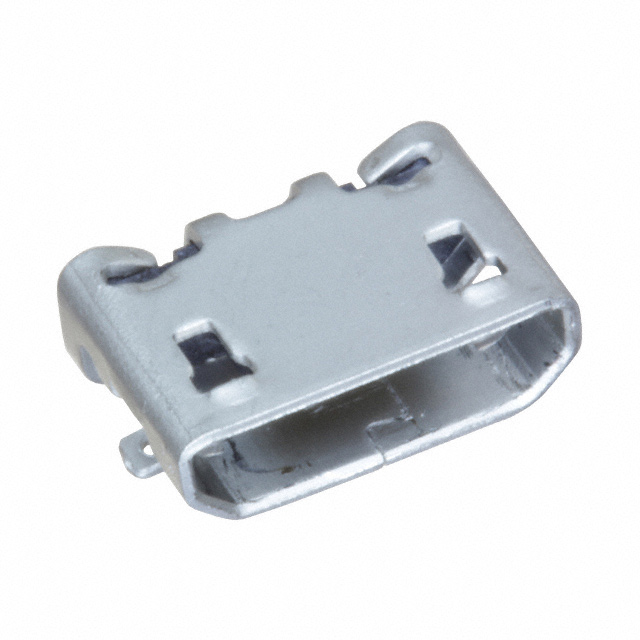

CONN RCPT USB2.0 MICRO B SMD R/A

Search across all available documentation for this part.

Active

Amphenol ICC (FCI)

CONN RCPT USB2.0 MICRO B SMD R/A

Technical Specifications

Parameters and characteristics for this part

Specification	10118192-0002LF

Connector Type	USB - micro B
Contact Finish	Gold
Current Rating (Amps)	1.8 A
Features	Solder Retention
Gender	Receptacle
Insulation Color	Black
Material Flammability Rating	UL94 V-0
Mating Cycles	10000
Mounting Feature	Horizontal
Mounting Type	Surface Mount, Right Angle
Number of Contacts	5
Number of Ports	1
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-30 ░C
Shell/Shielding Material	Stainless, Steel
Shielding	Shielded
Specifications	USB 2.0
Termination	Solder
Voltage - Rated	100 VAC

Part	Termination	Mating Cycles	Number of Contacts	Shell/Shielding Material	Current Rating (Amps)	Material Flammability Rating	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Shielding	Contact Finish	Mounting Feature	Voltage - Rated	Gender	Insulation Color	Number of Ports	Specifications	Features	Mounting Type
Amphenol ICC (FCI) 10118192-0002LF	Solder	10000	5	Stainless Steel	1.8 A	UL94 V-0	USB - micro B	-30 ░C	80 C	Shielded	Gold	Horizontal	100 VAC	Receptacle	Black	1	USB 2.0	Solder Retention	Surface Mount Right Angle

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

USB - micro B USB 2.0 Receptacle Connector 5 Position Surface Mount, Right Angle
