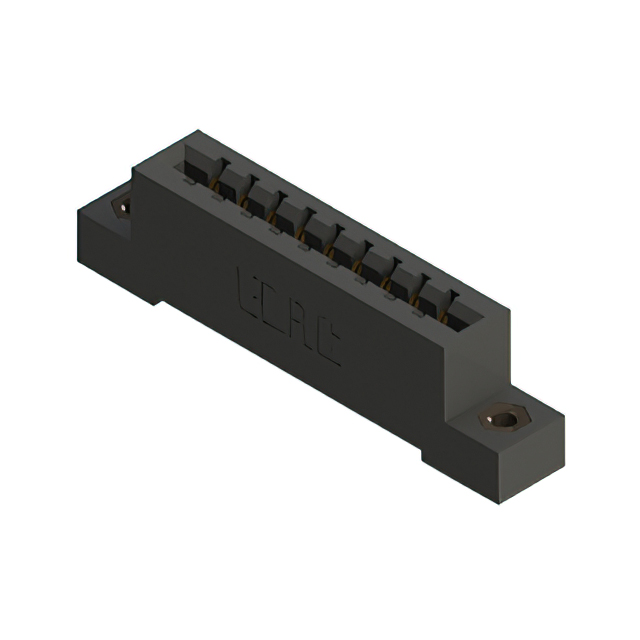

387-009-520-107
ActiveEDAC Inc.
CONN EDGE SGL FMALE 9POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
387-009-520-107
ActiveEDAC Inc.
CONN EDGE SGL FMALE 9POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 387-009-520-107 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Top Opening, Flush Mount, M3, Threaded Insert |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 9 |
| Number of Positions/Bay/Row [custom] | 9 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
387-009 Series
...
| Part | Card Type | Operating Temperature [Min] | Operating Temperature [Max] | Number of Rows | Material - Insulation | Termination Rows | Number of Positions/Bay/Row [custom] | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Number of Positions | Read Out | Termination | Gender | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Finish | Contact Material | Pitch [x] | Pitch [x] | Contact Finish Thickness | Contact Finish Thickness | Mounting Type | Color | Contact Type | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Non Specified - Single Edge | -40 °C | 105 ░C | 1 | Polyester Thermoplastic | 1 | 9 | 0.156 in | Top Mount Opening Unthreaded | 3.96 mm | 9 | Single | Solder | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Copper Alloy | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | Through Hole | Black | Cantilever | ||
EDAC Inc. | Non Specified - Single Edge | -40 °C | 105 ░C | 1 | Polyester Thermoplastic | 1 | 9 | 4-40 Threaded Insert Top Mount Opening | 9 | Single | Solder | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Copper Alloy | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | Through Hole | Black | Cantilever | ||||
EDAC Inc. | Non Specified - Single Edge | -40 °C | 105 ░C | 1 | Polyester Thermoplastic | 1 | 9 | 0.156 in | Top Mount Opening Unthreaded | 3.96 mm | 9 | Single | Wire Wrap | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Copper Alloy | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | Through Hole | Black | Cantilever | ||
EDAC Inc. | Non Specified - Single Edge | -40 °C | 105 ░C | 1 | Polyester Thermoplastic | 1 | 9 | Flush Mount M3 Threaded Insert Top Opening | 9 | Single | Solder | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Copper Alloy | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | Through Hole | Black | Cantilever | ||||
EDAC Inc. | Non Specified - Single Edge | -40 °C | 105 ░C | 1 | Polyester Thermoplastic | 1 | 9 | 0.156 in | Flush Mount Top Opening Unthreaded | 3.96 mm | 9 | Single | Wire Wrap | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Copper Alloy | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | Through Hole | Black | Cantilever | ||
EDAC Inc. | Non Specified - Single Edge | -40 °C | 105 ░C | 1 | Polyester Thermoplastic | 1 | 9 | 4-40 Threaded Insert Top Mount Opening | 9 | Single | Solder | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Copper Alloy | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | Through Hole | Black | Cantilever | ||||
EDAC Inc. | Non Specified - Single Edge | -40 °C | 105 ░C | 1 | Polyester Thermoplastic | 1 | 9 | 4-40 Flush Mount Threaded Insert Top Opening | 9 | Single | Wire Wrap | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Copper Alloy | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | Through Hole | Black | Cantilever | ||||
EDAC Inc. | Non Specified - Single Edge | -40 °C | 105 ░C | 1 | Polyester Thermoplastic | 1 | 9 | Side Mount Opening Unthreaded | 9 | Single | Solder | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Copper Alloy | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | Through Hole | Black | Cantilever | 3.25 mm | 0.128 in | ||
EDAC Inc. | Non Specified - Single Edge | -40 °C | 105 ░C | 1 | Polyester Thermoplastic | 1 | 9 | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | 9 | Single | Wire Wrap | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Copper Alloy | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | Through Hole | Black | Cantilever | ||
EDAC Inc. | Non Specified - Single Edge | -40 °C | 105 ░C | 1 | Polyester Thermoplastic | 1 | 9 | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | 9 | Single | Wire Wrap | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Copper Alloy | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | Through Hole | Black | Cantilever |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
387-009 Series
9 Position Female Connector Non Specified - Single Edge Gold 0.156" (3.96mm) Black
